It is mainly used in the occasions of force value measurement and control in the factory automation production process.
Multi-stage dynamic digital filter to meet high-speed dynamic weighing occasions.
Weight triggers dynamometric control.
Independent RS232 and RS485 dual serial communication interfaces.
Support a variety of analog quantities, the output mode can be configured.
960Hz / 480Hz / 240Hz / 120Hz sampling rate is optional.
1 sensor interface, supporting 4 350 ohm sensors.
Specification
| Working Power Supply | DC24v(18-36V) |
| AD Type | 24 bit AD conversion (with analog and digital filtering) |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 16000000 |
| Input Range | -10~30mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS232, COM2RS485 |
| Weight Display | Dual line LED display |
| Key Functions | 4 function keys |
| Operating Temperature | -10~50℃ |
| Power | Approx. 3w |
| Sample Rate | Maximum 960 times / second |
| Nonlinear | 0.002%FS |
| Display index | 100,000 |
| Zero Range | 0.1uV/d |
| Driving Capacity | Up to four 350Q sensors can be driven |
| Analog Output | 4~20mA、0~5V、0~10V |
| Temperature Coefficient | ≦5ppm/C° |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

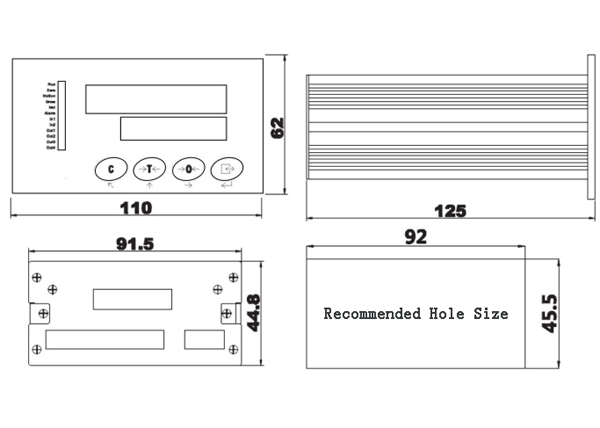

Diagram
