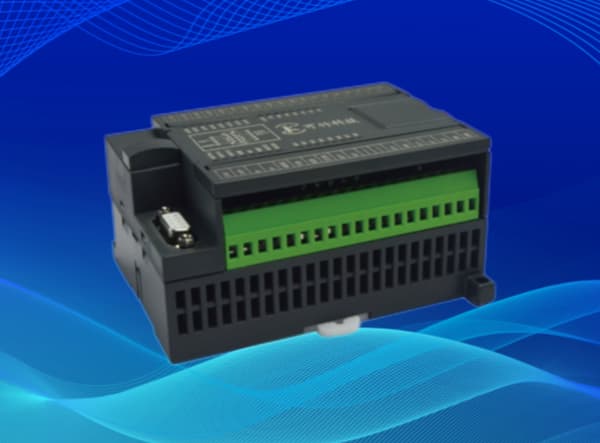

A weighing controller developed for dynamic real-time batching process, with multiple given flow modes.
Unique anti-vibration filter algorithm, precise weighing control.
Double PID regulation.
Automatic flow quantitative timing control.
Multiple switch input/output, configurable.
Independent RS232 and RS485 serial communication interfaces.
It can be used with the touch screen to make flow curves and output reports.
Specification
| Working Power Supply | DC24v(18-30V) |
| AD Type | 24 bit AD conversion (with analog and digital filtering) |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 1000000 |
| Input Range | 0~15mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS485, COM2RS232 |
| Weight Display | N / A |
| Key Functions | N / A |
| Operating Temperature | -10~45℃ |
| Power | Less than 5w |
| Sample Rate | Maximum 400 times / second |
| Nonlinear | 0.002%FS |
| Display index | 100,000 |
| Zero Range | 0~15mV |
| Driving Capacity | Up to eight 350Q sensors can be driven |
| Analog Output | Up tp 2 channels |
| Temperature Coefficient | ≦5ppm/C° |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

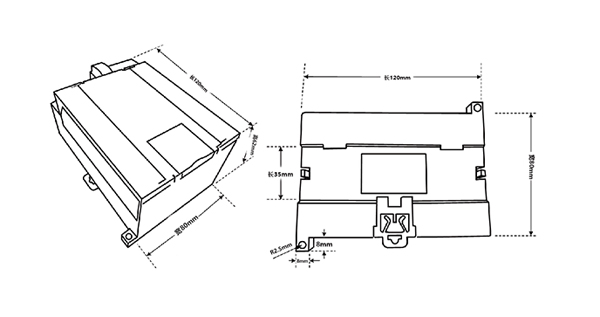

Diagram
