Measuring range: 3kg,6kg,10kg,20kg,30kg,35kg,50kg,60kg.
At room temperature, the division value can be as high as 60,000.
Angle correction.
IP66 protection.
Applicable to electronic pricing scales, counting scales and other weighing equipment.
Specification
| Sensitivity Output | 2.0±10%mV/V |
| Zero Output | ±0.02mV/V |
| Nonlinear | <±0.017% |
| Repeatability | <±0.017% |
| Hysteresis | <±0.017% |
| 30 Minutes Creep | <±0.008% |
| 2 Minutes Creep | <±0.0033% |
| Input Resistance | 415Ω±15 |
| Output Resistance | 350Ω±3 |
| Material | Aluminum alloy |
| Use Voltage | 10V (15V Maximnm) |
| Maximum Platform Size | 400*400mm |
| Insulation Resistance | >2[50V DC]GΩ |
| Working Temperature | -10°C to 40°C / 14°F to 104°F |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Protection Class | IP66 |
| Color Code | EXC (input) +: Red (red); EXC (input)-: Black (black); Sig (input) +: Green (green); Sig (input)-: White (white); Shield Bare (shield) |

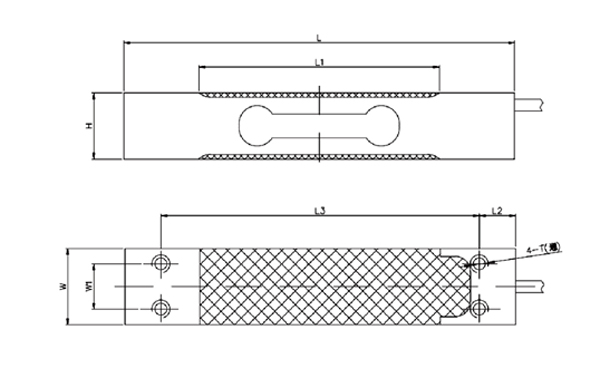

Diagram
