Measuring range: 10kg,15kg,20kg,30kg,50kg,75kg,100kg,200kg,300kg.
Usually the accuracy can reach C3,5000 division value.
Angle correction.
IP66 protection.
Suitable for many occasions.
Specification
| Sensitivity Output | 2.0±10%mV/V |
| Zero Output | ±0.02mV/V |
| Nonlinear | <±0.017% |
| Repeatability | <±0.017% |
| Hysteresis | <±0.017% |
| 30 Minutes Creep | <±0.023% |
| 2 Minutes Creep | <±0.0033% |
| Input Resistance | 405Ω±15 |
| Output Resistance | 350Ω±3 |
| Material | Aluminum alloy |
| Use Voltage | 10V (15V Maximnm) |
| Maximum Platform Size | 450*450mm |
| Insulation Resistance | >2[50V DC]GΩ |
| Working Temperature | -10°C to 40°C / 14°F to 104°F |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Protection Class | IP66 |
| Color Code | EXC (input) +: Red (red); EXC (input)-: Black (black); Sig (input) +: Green (green); Sig (input)-: White (white); Shield Bare (shield) |

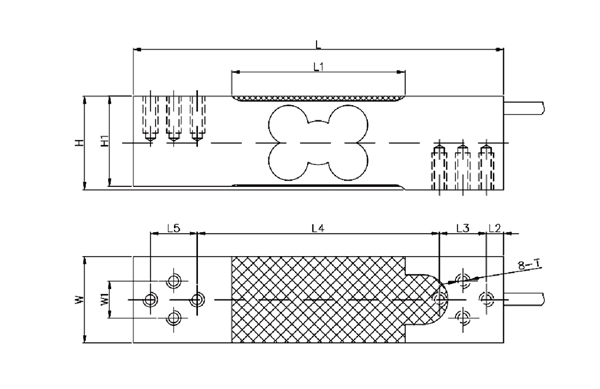

Diagram
