Measuring range: 50kg,100kg,200kg,300kg,500kg,1000kg.
Usually the division value can reach C3,5000.
Both pull and press.
Explosion-proof (Ex lb ll Ct4).
IP66 / 67 protection.
Options are: -Temperature resistance 120°C [248°F], Lightning protection -6 wires -Stainless steel.
Specification
| Sensitivity Output(lb) | 3.0±0.25%mV/V |
| Sensitivity Output(kg) | 2.0±1%mV/V |
| Zero Output | ±0.02mV/V |
| Nonlinear | <±0.017% |
| Repeatability | <±0.017% |
| Hysteresis | <±0.017% |
| 30 Minutes Creep | <±0.023% |
| Input Resistance | 400Ω±20 |
| Output Resistance | 350Ω±3 |
| Material | Aluminum alloy / stainless steel |
| Use Voltage | 10V (15V Maximnm) |
| Insulation Resistance | >2[50V DC]GΩ |
| Working Temperature | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Protection Class | IP67 |
| Color Code | EXC (input) +: Red (red); EXC (input)-: Black (black); Sig (input) +: Green (green); Sig (input)-: White (white); Shield Bare (shield) |

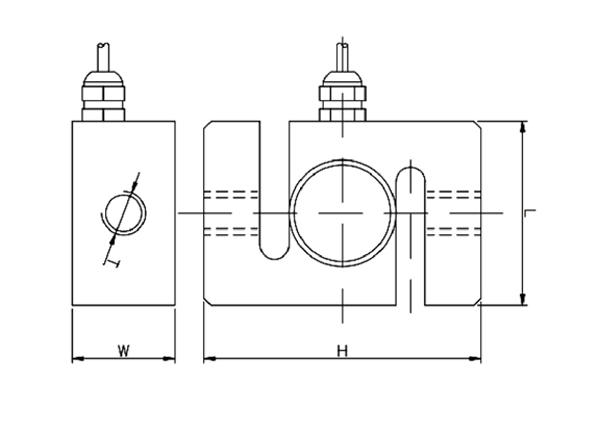

Diagram
