Measuring range: 5kg-500kg;1-2t.

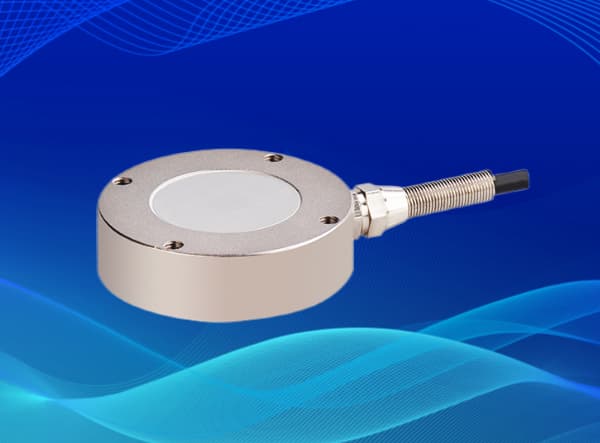

Miniature sensor, stainless steel.
Small size and compact structure.
Pressure type, small partial load.
Output resistance 350Ω, 950Ω optional.
Output sensitivity 1.0-1.5mV/V.
It is used in the field of force value detection with small installation space such as button feel tester, robot hand grip force, etc.
Specification
| Sensitivity Output | 1.0±1.5%mV/V |
| Zero Output | ±2%F.S. |
| Nonlinear | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Hysteresis | 0.1%F.S. |
| 30 Minutes Creep | <±0.05% |
| Input Resistance | 350(700)Ω±5 |
| Output Resistance | 350(700)Ω±3 |
| Material | Aluminum alloy / stainless steel |
| Use Voltage | 3-15V |
| Insulation Resistance | ≥5000MΩ / 100VDC |
| Working Temperature | -10°C to 80°C |
| Safe Overload | 120% of full scale |
| Ultimate Overload | 150% of full scale |
| Protection Class | IP67 |
| Color Code | EXC (input) +: Red (red); EXC (input)-: Black (black); Sig (input) +: Green (green); Sig (input)-: White (white); Shield Bare (shield) |

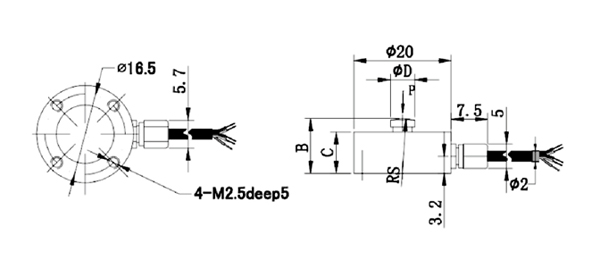

Diagram
