Measuring range: 100kg,200kg,300kg,500kg,1000kg,2000kg,3000kg,5000kg,10000kg.
Scale value 5000, C3 level multi-purpose sensor.
Small size, high sensitivity.
Explosion-proof (Ex lb ll Ct4).
IP67 protection.
The options are: -temperature resistance 120°C [248°C F], lightning protection -6 wires -stainless steel.
Specification
| Sensitivity Output | 3.0±0.25%mV/V |
| Zero Output | ±0.02mV/V |
| Nonlinear | <±0.017% |
| Repeatability | <±0.017% |
| Hysteresis | <±0.017% |
| 30 Minutes Creep | <±0.023% |
| Input Resistance | 380Ω±25 |
| Output Resistance | 350Ω±5 |
| Material | Aluminum alloy / stainless steel |
| Use Voltage | 10V (15V Maximnm) |
| Insulation Resistance | >2[50V DC]GΩ |
| Working Temperature | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Protection Class | IP67 |
| Color Code | EXC (input) +: Red (red); EXC (input)-: Black (black); Sig (input) +: Green (green); Sig (input)-: White (white); Shield Bare (shield) |

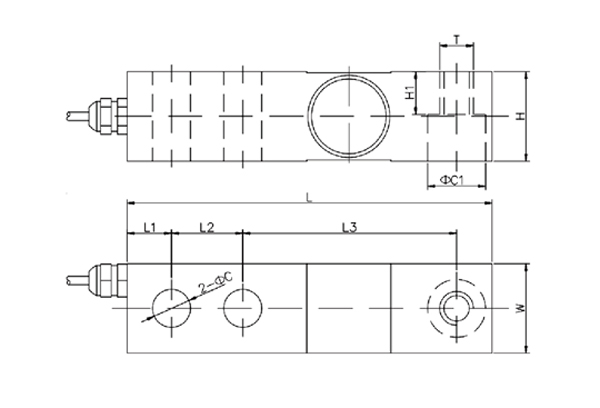

Diagram
