Overall stainless steel production.
No power conveying Kundao.
Manual/automatic selectable.
Imported weighing originals are used.
Weighing out-of-tolerance alarm and fault self-diagnosis.
Explosion-proof configuration for use in hazardous areas.
Fast and slow two-speed feeding, the feeding speed is adjustable.
Recipe management, can be connected with DCS control system.
Specification
| Filling Capacity | 1-30kg / 10-30kg |
| Filling Speed | 250~500 barrels / hour / 200~400 barrels / hour / 120~300 barrels / hour |
| Filling Accuracy | Class 0.2, ±0.1~0.2% |
| Weighing Device | Maximum weighing 50kg, scale value: 1g / 2g / 5g |
| Filling Container | Square / round drum, 200L iron drum, plastic drum, etc. |
| Operating Temperature | -10℃~45℃ |
| Relative Humidity | ≤95% |
| Working Power | AC380V / AC220V, 50HZ,＜500W |
| Installation Requirements | Horizontally fixed on the concrete ground (the thickness of the concrete is required to be greater than 15mm) |
| Working Air Source | 0.4~0.6Mpa |
| Air Consumption | 8m³/h / 10m³/h |
| Material Interface | DN 32 / DN40 standard flange, material inlet pressure: less than 6Mpa |
Application

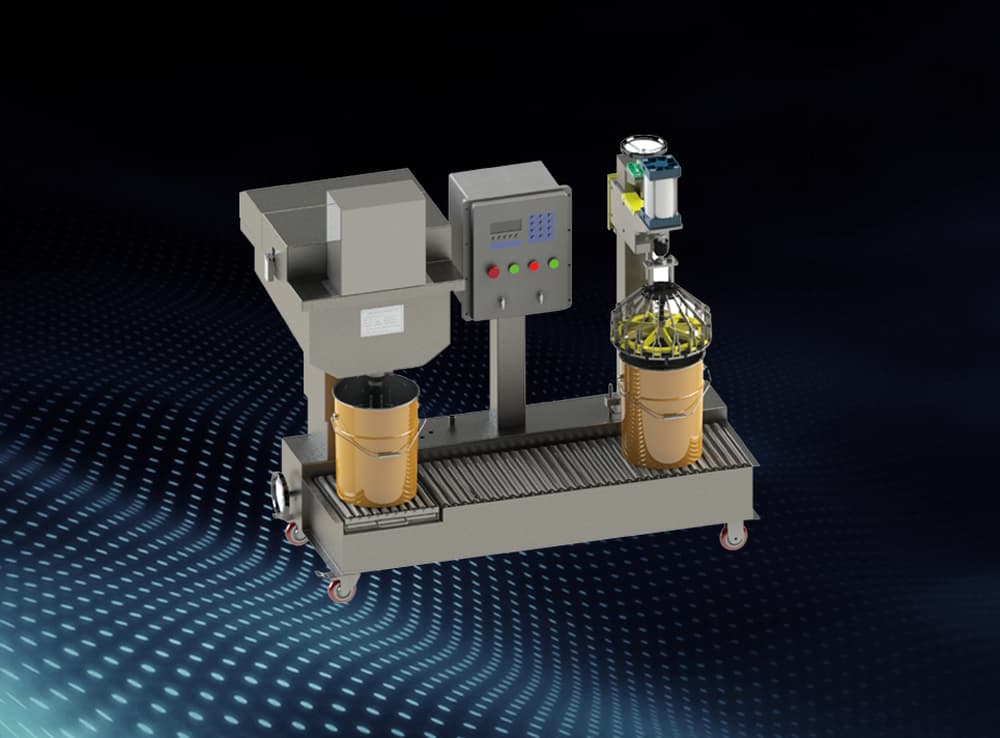

KZ-DCS-300 series weighing liquid filling machine can be used in conjunction with marking machines, coding machines, labeling machines, capping machines, capping machines, conveyors and other supporting equipment to form automatic and semi-automatic filling production lines according to different materials and process requirements.
Qualification
