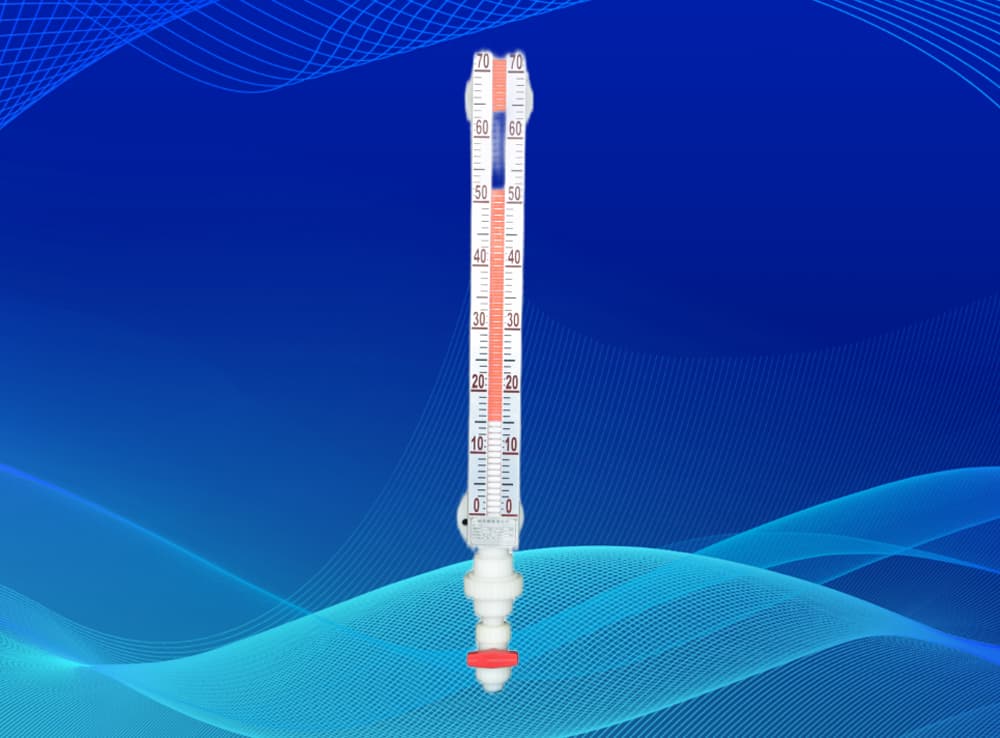

LW100-CFB Type Magnetic Flap Liquid Level Gauge

Suitable for high temperature, high pressure, strong acid, strong alkali and explosion-proof requirements.
The structure is simple, reliable and durable, and various optional accessories can be added to make the control easier.
The control circuit is completely isolated from the measured medium.
If the power supply is interrupted, the on-site magnetic switch will not be affected, and the accuracy is high.
It is suitable for dyeing and finishing equipment, waste water treatment, power plant, chemical equipment, thermal kerosene furnace and petrochemical industry, etc.

Specification

Working Power24VDC power
PowerMax 7W
Output4-20mA, two-wire system
Accuracy±10mm / ±5mm
Working Temperature-40~80°C (max150°C)
Protection ClassIP65
Wetted MaterialSUS304, SUS316L, PVC, PP, PTFE
Process ConnectionThread / flange

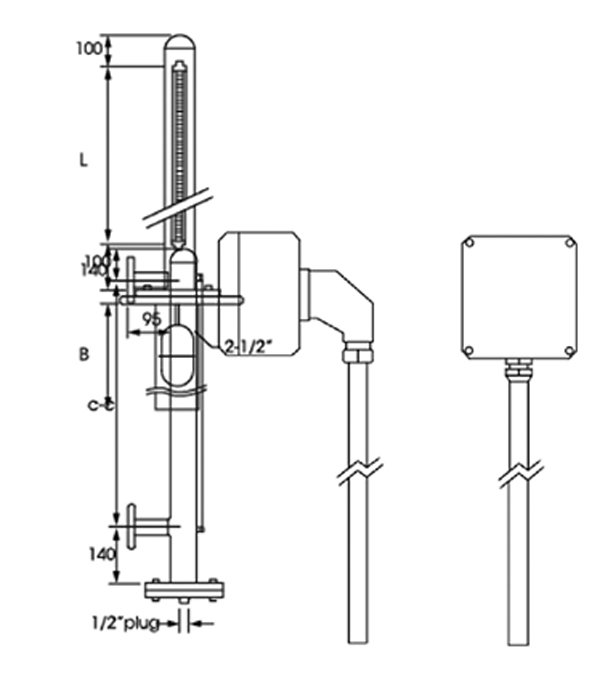

Diagram


Qualification
