Plastic integral injection molding.
Simple and reasonable structure.
Stable and reliable performance, no malfunction caused by liquid level fluctuations.
Non-toxic, corrosion-resistant, easy to install, low price, long life.
Compatible with various water pumps.
The internal parts can be easily inspected and repaired without removing the whole set from the tank.
Specification
| Working Power | 220 VAC |
| Power | Max 3W |
| Contact rating | 5A / 250VAC0 SPDT |
| Extension Time | Adjustable |
| Acidity | Acid and alkali resistance |
| Working Temperature | -40~80°C |
| Protection Class | IP65 |
| Process Temperature | Standard / high |
| Wetted Material | PP, stainless steel |
| Process Connection | Thread / flange |

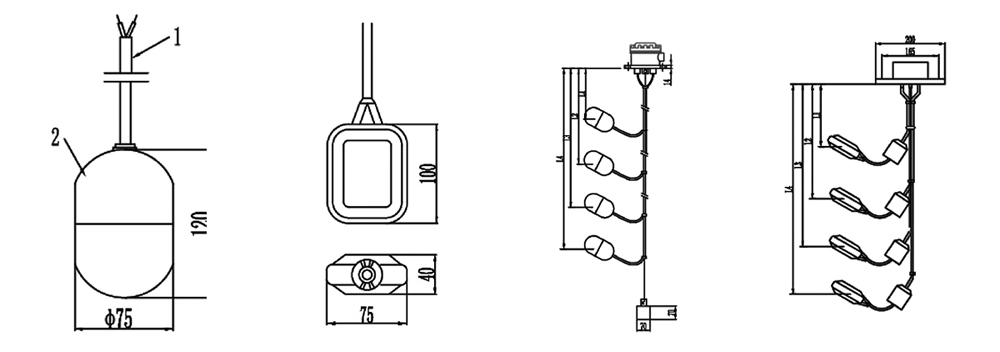

Diagram
Qualification
