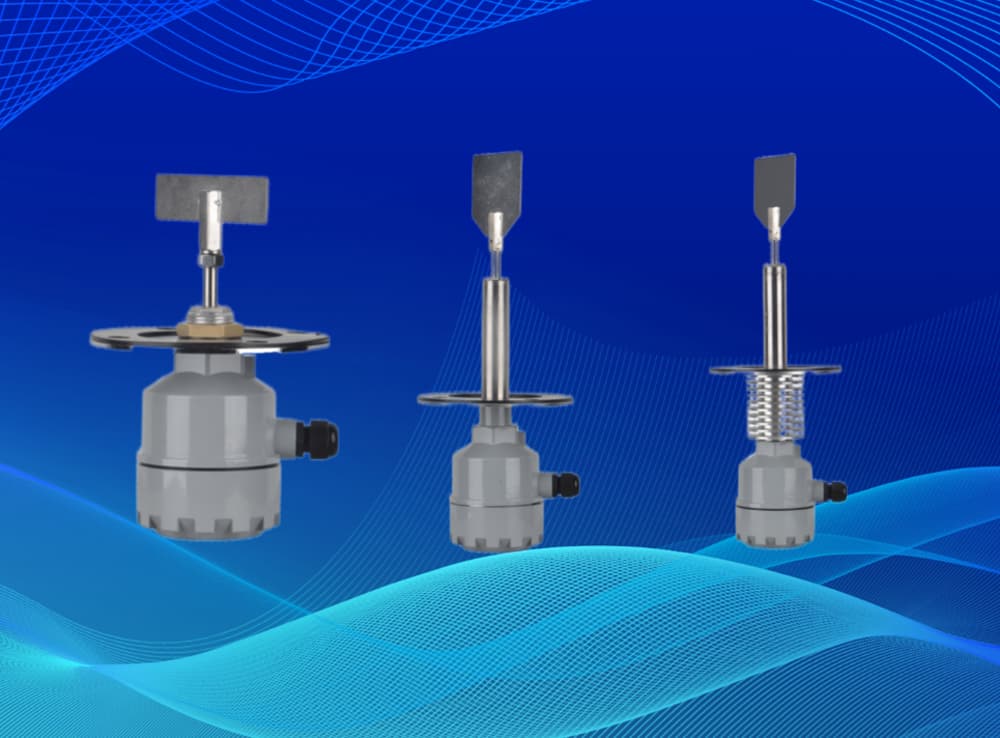

LW100-ZX Type Rotary Level Switch

Fully airtight and can be used outdoors.
Independent oil seal design can prevent dust from penetrating along the shaft.
The torque is stable and reliable and the size of the torque can be adjusted.
Lightweight and easy to install.
When the blade is under heavy load, the motor rotation mechanism will automatically slip to protect it from damage.
The internal parts can be easily inspected and repaired without dismantling the entire set from the tank.

Specification

Working Power220 VAC / 110 VAC / 24VDC, 50HZ / 60HZ
PowerMax 3W
Contact rating8A / 250VAC0 SPDT
Blade SpeedCounterclockwise
Rotational Moment1Nm
Applicable Material Specific Gravity≥0.4g/cm3
Working Temperature-10~80°C
Protection ClassIP65
Process TemperatureStandard / high
Wetted MaterialSUS304
OutletM20*1.5
Process ConnectionThread / flange

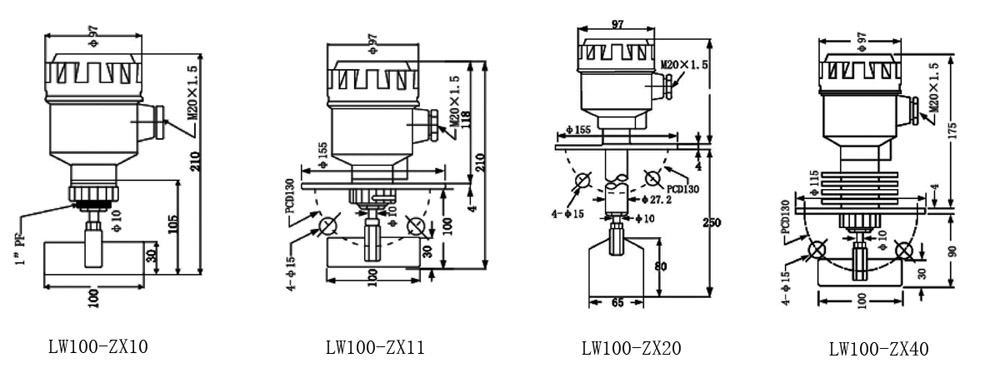

Diagram


Qualification
