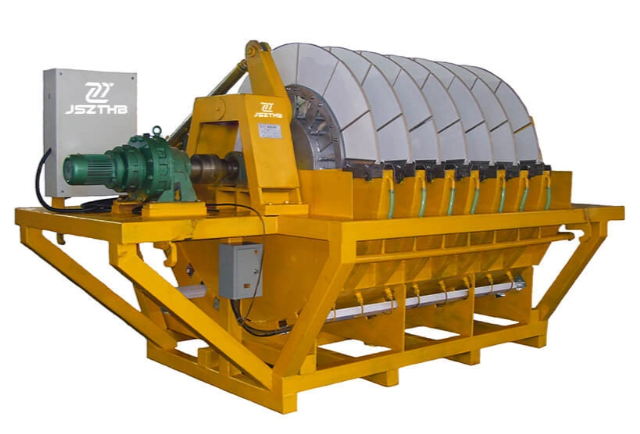

Ceramic Filter is the core equipment in the field of solid-liquid separation, with its core component being the Porous Ceramic Filter Plate, which achieves energy-saving dewatering through capillary effect and vacuum principle. The equipment mainly consists of Ceramic Filter plates, roller system, stirring system, ore feeding and discharging system, vacuum system, filtrate discharge system, scraping system, backwashing system, combined cleaning system, fully automatic control system, tank body, frame, and other components.
Specification
| Type/Parameter | Filter Disc（Ring) | Quantity of ceramic plates | Cubage of Groove (M3) | Installation power (KW) | Weight of Equipment(T) | Motion Powder (KW) | Length of Main Engine (M) | Width of Main Engine (M) | Height of Main Engine (M) |
| RX-1 | 1 | 12 | 0.21 | 3.5 | 1 | 2 | 1.6 | 1.4 | 1.5 |
| RX-4 | 2 | 24 | 1 | 7 | 2.0 | 3 | 2.4 | 2.5 | 2.1 |
| RX-6 | 2 | 24 | 1.2 | 7 | 3.0 | 6 | 2.4 | 2.9 | 2.5 |
| RX-9 | 3 | 36 | 1.7 | 9 | 3.4 | 7 | 2.7 | 2.9 | 2.5 |
| RX-12 | 4 | 48 | 2.2 | 11 | 4.0 | 7.5 | 3 | 2.9 | 2.5 |
| RX-15 | 5 | 60 | 2.7 | 11.5 | 4.5 | 8 | 3.3 | 3 | 2.5 |
| RX-21 | 7 | 84 | 4.0 | 13.5 | 9 | 9 | 4.6 | 3 | 2.6 |
| RX-24 | 8 | 96 | 4.5 | 16.5 | 9.5 | 10.5 | 4.9 | 3 | 2.6 |
| RX-27 | 9 | 108 | 5 | 17 | 10 | 11 | 5.2 | 3 | 2.6 |
| RX-30 | 10 | 120 | 5.5 | 17.5 | 10.5 | 11.5 | 5.5 | 3 | 2.6 |
| RX-36 | 12 | 144 | 7 | 23 | 11.5 | 16 | 6.6 | 3 | 2.6 |
| RX-45 | 15 | 180 | 8.5 | 25 | 13 | 19 | 7.5 | 3 | 2.6 |
| RX-60 | 15 | 180 | 12.5 | 33 | 17 | 22 | 7.5 | 3.3 | 3.0 |
| RX-80 | 20 | 240 | 16.2 | 40 | 19 | 24 | 9 | 3.3 | 3.0 |
| RX-100 | 20 | 240 | 18.5 | 53 | 25 | 35 | 11 | 3.6 | 3.3 |
| RX-120 | 24 | 288 | 22 | 60 | 30 | 40 | 12.2 | 3.6 | 3.3 |
| RX-204 | 17 | 255 | 50 | 132 | 58 | 96 | 11.06 | 5.2 | 4.8 |
| RX-240 | 20 | 300 | 65 | 145 | 62 | 100 | 12.26 | 5.2 | 4.9 |
