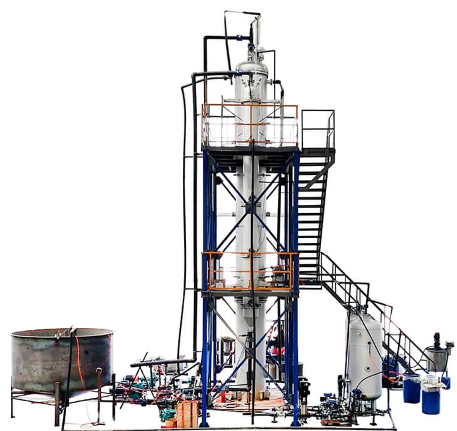

Crossflow tube concentration system

Product Description:

Market Background: The treatment of fine-grained solid-containing wastewater has always been a challenge in the environmental protection industry, especially for high-temperature solid-containing wastewater. The existing wastewater treatment systems mostly have undesirable aspects such as large， high equipment energy consumption， low treatment capacity， and high maintenance costs.

Working principle: By borrowing the advanced laminar flow filtration concept from abroad, we replace the multi-hole ceramic tube with a single-hole ceramic tube. This enables the "flow velocity within the tube" to be enhanced, significantly extending the service life of the ceramic tube. It integrates advanced concepts such as the rod-type ultrasonic cleaning system and polyurethane sealing system. Without increasing energy consumption or prolonging the maintenance period, the filtering performance of the ceramic can be fully utilized.

1. Each pipe section can accommodate 152 ceramic tubes, significantly increasing the effective filtration area compared to multi-hole pipes.

2. The system integrates advanced control concepts such as wastewater feed rate monitoring, water production rate monitoring, energy consumption monitoring, data statistics, and fault prediction system.

3. The incorporation of the rod-type ultrasonic cleaning system greatly enhances the production rate of the system, keeping the ceramic tubes in an efficient filtration state.

4. The variable cycle oscillating backwash system enables the restoration of ceramic tube filtration performance online without the need for shutdown.

5. The addition of the flow of the circulating pump and the feed pump can maximize the "in-flow velocity" indicator to the greatest extent.

6. Replacing the parallel pipes with series pipes can maximize the "in-flow velocity" without increasing energy consumption.
