The instrument consists of a measuring system indicating part and a case. Good sealing performance and equipped with sealing check device, which can protect internal mechanism from mechanical damage and pollution invasion.For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments.
Specification
| Model | YB-150A-I | YB-150A-III | YB-150B-I | YB-150B-III |
| Nominal Size | Φ150 | |||
| Fitting Thread | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT | |||
| Accuracy Class | ±0.4％ | |||
| Measuring Range (MPa) | -0.1～0,0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1, 0～1.6,0～2.5,0～4;0～6,0～10,0～16,0～25,0～40,0～60 | |||
Overview
The precision pressure gauge consists of a pressure measuring system, a transmission mechanism, an indicating device and a case. The elastic element of the precision pressure gauge is processed by special technology, which ensures the stable and reliable performance. Adapting with the high-precision transmission mechanism, the very good indicating accuracy is guaranteed. Precision pressure gauges are mainly used to check ordinary industrial pressure gauges. It can also be used to accurately measure the pressure of media which are not highly viscous or crystallising and will not attack copper alloy parts. Model YB-150A is equipped with mirror ring below the scale line, to make sure the clearer and more accurate reading. And looks more beautiful. The accuracy is 0.4%. Type YB-150B is equipped with a mirror ring under the scale line and a zero adjusting device, with an Accuracy of 0.25%.
Feature

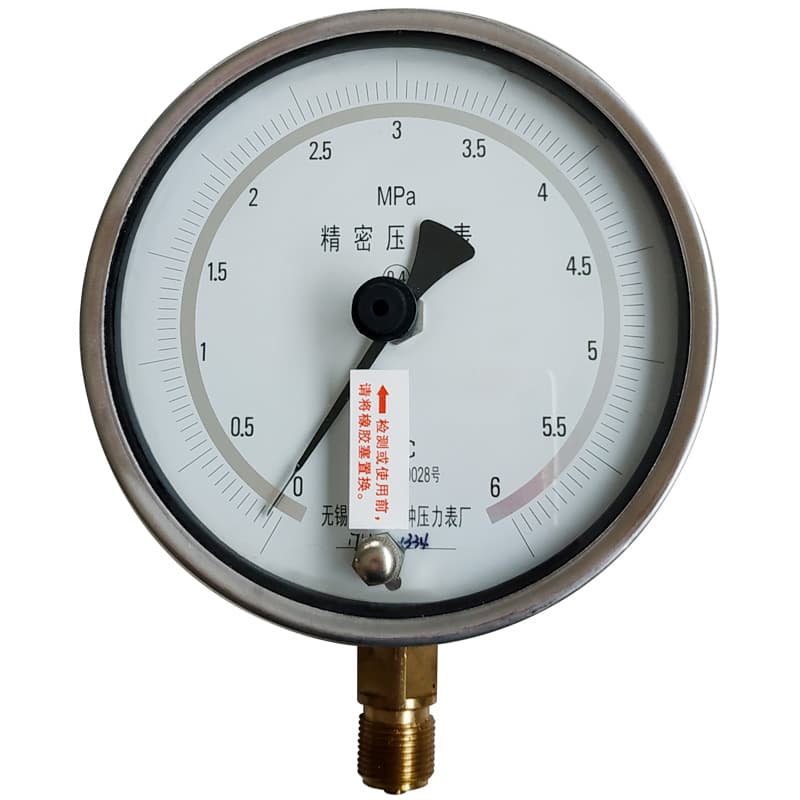

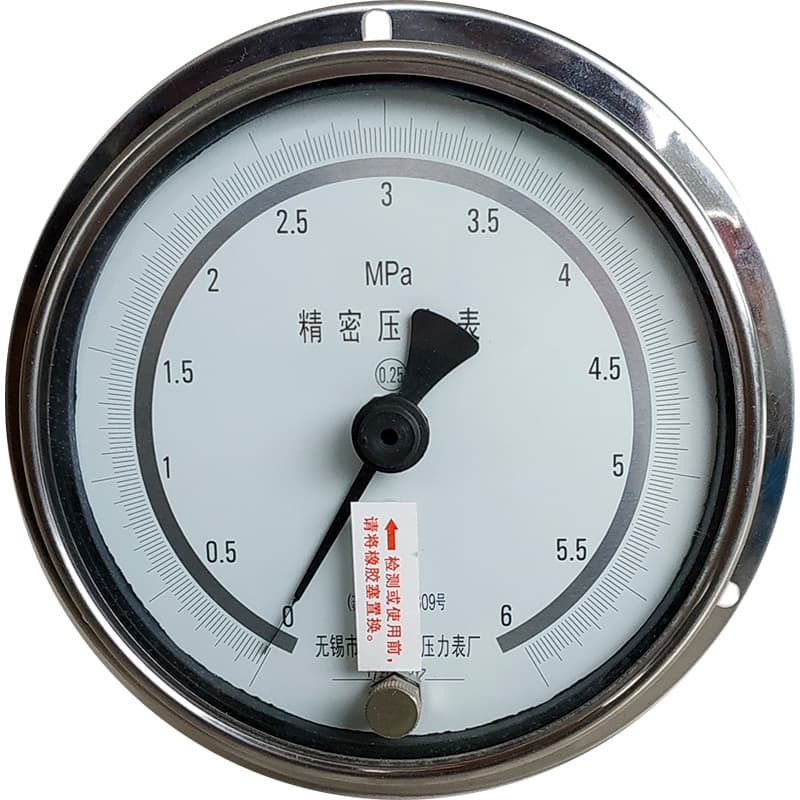

1.Both back mount and lower mount (radial) are available.
2.Measurement unit could be bar, psi...etc. as per customer request.
3.Copper alloy components.
4.Stainless steel case.
