For measuring locations with a high differential pressure overload and/or high working pressures (static pressures), also in aggressive environments.
For gaseous, liquid, contaminated, viscous and aggressive media.
Pump monitoring and control.
Filter monitoring.
Level measurement on closed vessels.
Specification
| Model | CYW100-I | CYW100-II | CYW100-III | CYW150-I | CYW150-II | CYW150-III | |
| Nominal Size | Φ100 | Φ150 | |||||
| Fitting Thread | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | ||||||
| Accuracy Class | ±1.6％,±2.5％ | ||||||
| Measuring Range | Differential Pressure Range（KPa） | 0～10,0～16,0～25,0～40,0～60,0～100 | Differential Pressure Range（KPa） | 0～0.16,0～0.25,0～0.40,0～0.60,0～1,0～1.6,0～2.5 | |||
| Nominal Woring Pressure（KPa） | 60,100,160,250,400,600 | Nominal Woring Pressure（KPa） | 1,1.6,2.5,4,6,10,10 | ||||
Overview

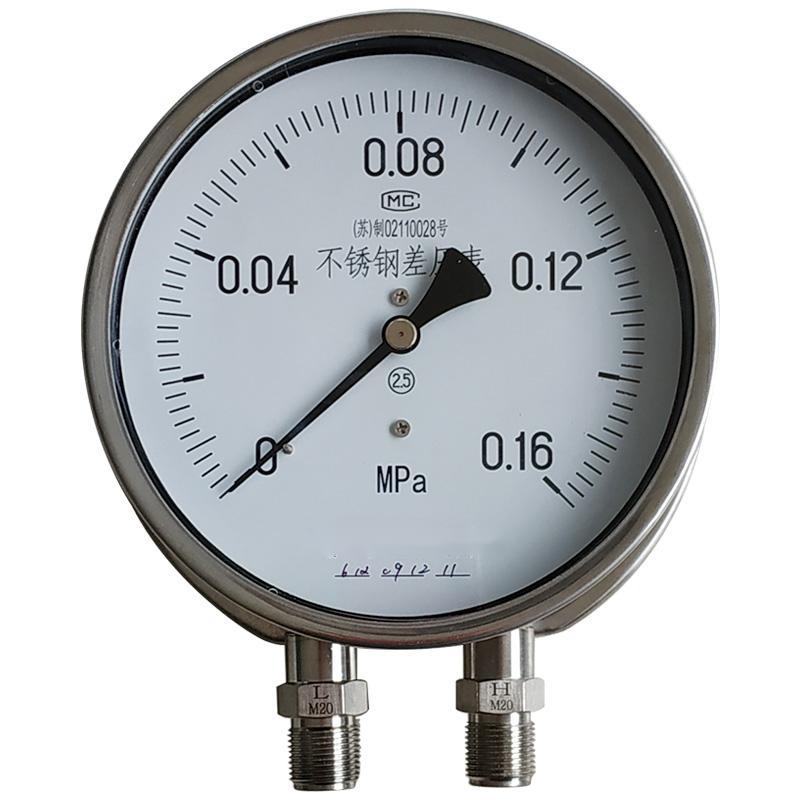

CYW serials of stainless steel differential pressure gauge is to substitute the imported products. Mainly application in differential pressure measurement in petrochemical and power industry fields.For instance, the centrifuge, compressor lubrication system and filter’s differential pressure measurement，Excellent in overload resistance, good maintenance performance and high reliability.
Stainless steel is applied and measuring&pressure guiding system is made of austenitic stainless steel.Robust structure design, state-of-the-art technology, small size, light weight, good stability and long lifetime.There are two kinds of connection forms for instrument connector: parallel type(can be directly connected with three valve groups) and oblique type, which can adapt to various users installation requirements.
Fully in compliance with the enterprise standard Q/YXBM831 1997 stainless steel differential pressure gauge.
Feature
1.Completed stainless steel.
2.Both back mount and lower mount (radial) are available.
3.Measurement unit could be bar, psi.
