For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
Pneumatics
Heating and air-conditioning technology
Medical engineering
Specification
| Model | Y40 | Y60 | Y100 | Y150 | Y200 | Y250 |
| Nominal Size | φ40 | φ60 | φ100 | φ150 | φ200 | φ250 |
| Fitting Thread | M10×1、G1／8＂、ZG1／8＂ | M14×1.5、G1／4＂、ZG1／4＂、1／4NPT、G3／8＂、ZG3／8＂ | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | |||
| Accuracy Class | ±2.5% | ±1.5%(±1.6%) | ||||
| Measuring Range (MPa) | 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | |||
| 0～2.5,0～4,0～6,0～10,0～16,0～25 | -0.1～0.9，-0.1～1.5，-0.1～2.4； | 0～2.5,0～4,0～6,0～10 | ||||
| '0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||||
Overview
Y series ordinary pressure gauge is suitable for the pressure measurement of gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Feature
1.Reliable and cost-effective.

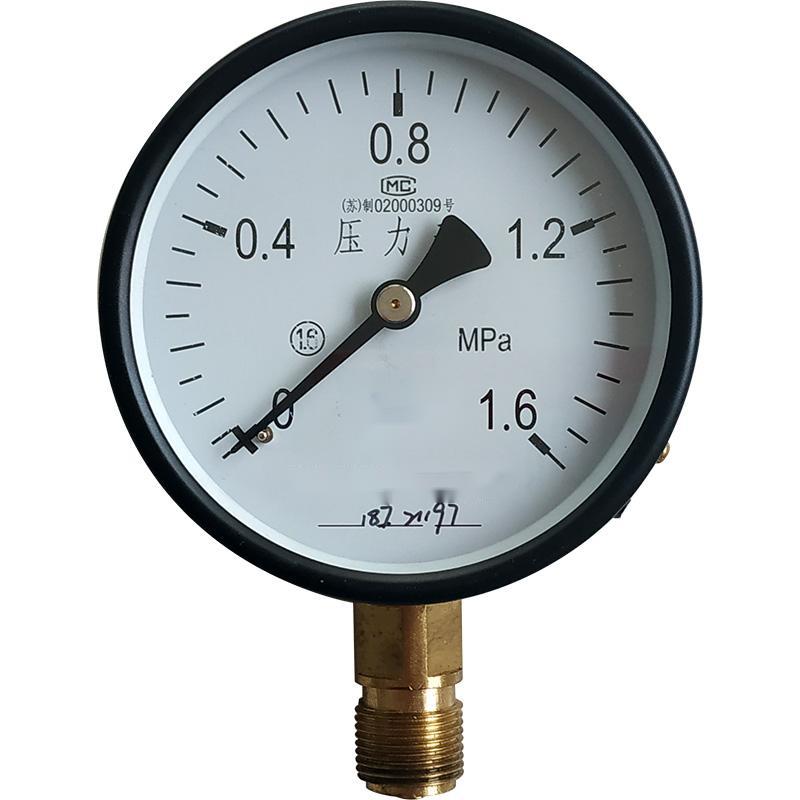

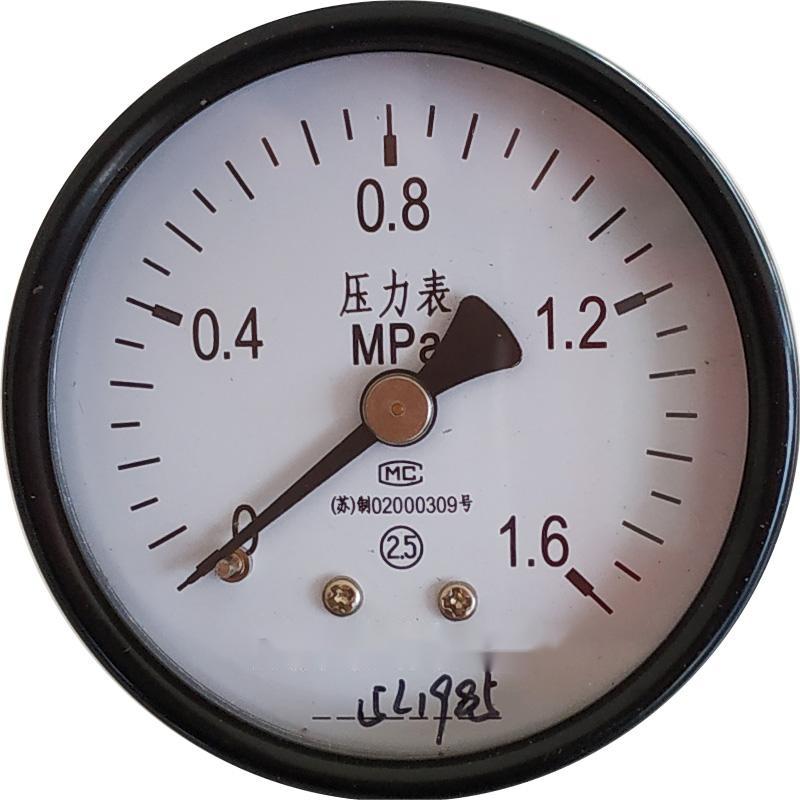

2.Both back mount and lower mount (radial) are available.
3.Measurement unit could be bar, psi.
4.Copper alloy.
