For dairies, dairy products, breweries and soft drink production mechanical pressure display on pipelines and vessels.
Specification
| Model | YPF-100/150A | YPF-100/150B | YPF-100/150B-F | ||||
| Possitive Pressure（MPa） | Possitive/Negative Pressure（MPa） | Possitive Pressure（KPa） | Negative Pressure（KPa） | Possitive/Negative Pressure（KPa） | Possitive Pressure（MPa） | Possitive/Negative Pressure（MPa） | |
| Measurement Range | 0～0.1 | -0.1～0 | 0～1.6 | -1.6～0 | -0.8～0.8 | 0～0.1 | -0.1～0 |
| 0～0.16 | -0.1～0.06 | 0～2.5 | -2.5～0 | -1.2～1.2 | 0～0.16 | -0.1～0.06 | |
| 0～0.25 | -0.1～0.15 | 0～4 | -4～0 | -2～2 | 0～0.25 | -0.1～0.15 | |
| 0～0.4 | -0.1～0.3 | 0～6 | -6～06 | -3～3 | 0～0.4 | -0.1～0.3 | |
| 0～0.6 | -0.1～0.5 | 0～10 | -10～0 | -5～5 | 0～0.6 | -0.1～0.5 | |
| 0～1.0 | -0.1～0.9 | 0～16 | -16～0 | -8～8 | 0～1.0 | -0.1～0.9 | |
| 0～1.6 | -0.1～1.5 | 0～25 | -25～0 | -12～12 | 0～1.6 | -0.1～1.5 | |
| 0～2.5 | -0.1～2.4 | 0～40 | -40～0 | -20～20 | 0～2.5 | -0.1～2.4 | |
| 承压部分D1 | φ96 | φ160 | φ96 | ||||
Overview

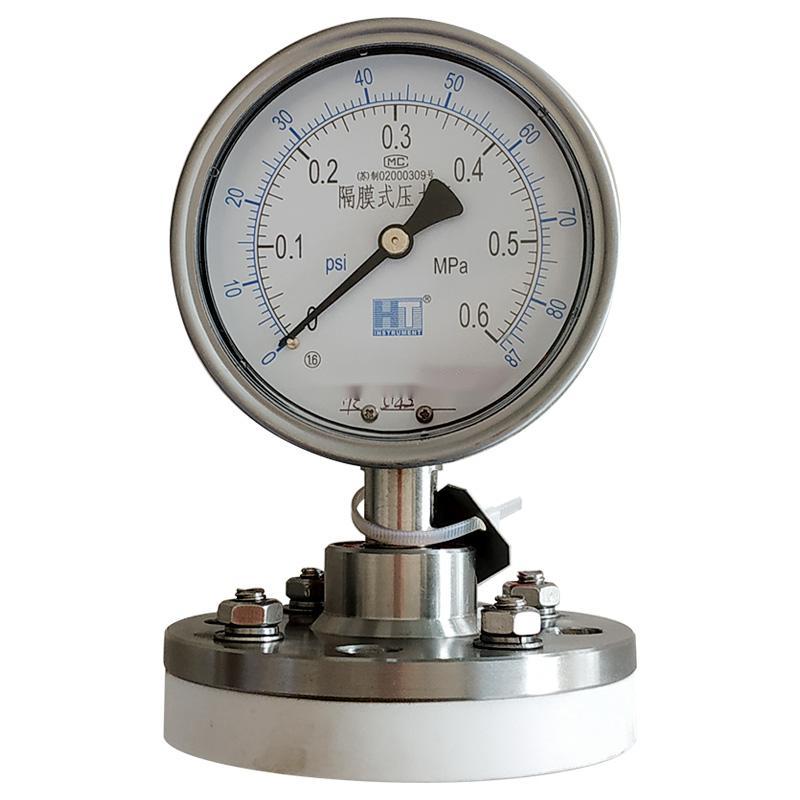

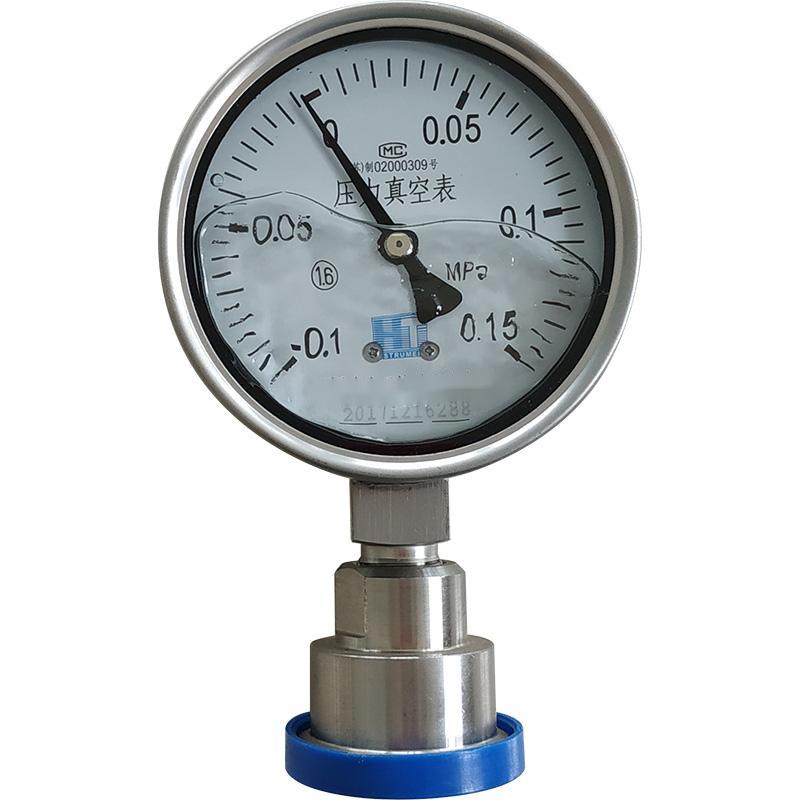

This serials Diaphragm pressure gauge is suitable for measuring the pressure of liquid and gas or granular solids that are corrosive, high viscosity, easily crystalizing, easy solidification and high temperature, and the occasions that the medium shouldn’t directly enter into the pressure gauge and prevent the sediment accumulation and easy to clean. Widely used in petroleum ，chemical, chemical fiber, chemical dying, pharmaceutical and food …etc.
Feature
1.Quick cleaning, without residue.
2.Both liquid filled and non-filled are available.
3.Measurement unit could be bar, psi.
