For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments.Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
Specification
| Model | YXNM-100 | YXNM-100BF | YXNM-150 | YXNM-150BF |
| Nominal Size | Φ100 | Φ150 | ||
| Fitting Thread | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | |||
| Accuracy Class | ±1.6% | |||
| (Measuring Range) (MPa) | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | |||
| -0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||
| 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||
| Upper Limit of Pressure | 2/3 | |||
| Vibration Class | V.H.4 | |||
| IP Protection Class | IP64. (IP65 must be customized) | |||
| Max. Operating Voltage | DC·24V | |||
| Max. Power | 1W | |||
Overview

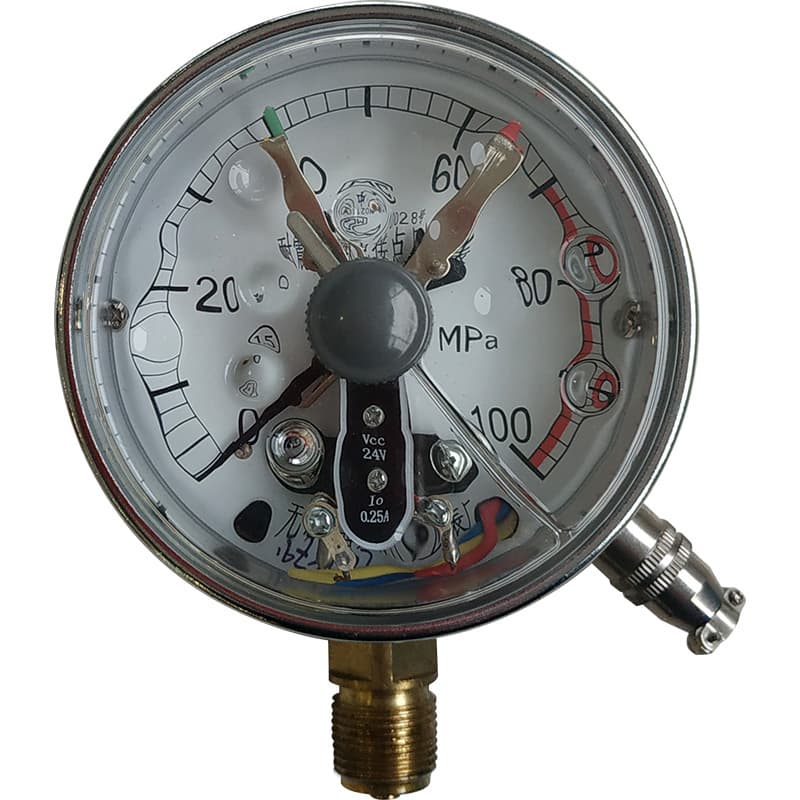

YXN-M serials electronic contact pressure gauges are excellent in resisting environmental vibration, media pulsation and impact load。Dial indication is clear and stable, and electric signal switching is reliable，Equipped with upper and lower limits two adjustable signal control。High sensitivity, fast response, no lag and jump phenomenon。YXN-M serial instrument’s contact terminal is sealed in vacuum，Therefore, the signal switching is reliable, no arcing phenomenon, long service life, and excellent switching characteristics。
The instrument is suitable for low voltage and small current operation, especially suitable for computer users in applying 24V DC PLC control signal switching. Due to magnetic switch used, this instrument can not be used in strong magnetic field, otherwise it’s easy to result in misoperation.
Feature
1.Up to 2 switch contacts per instrument (upper switch and lower switch).
2.Instruments with inductive contacts for use in hazardous areas.
3.Working Voltage: 24V.
4.Both liquid filled and non-filled are available.
5.Both back mount and lower mount (radial) are available.
6.Measurement unit could be bar, psi.
