For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments.Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
Specification
| Model | YXC100/150 | YXNC100/150 | YXC-100/150BF | YXNC-100/150BF |
| Nominal Size | Φ100/Φ150 | |||
| Fitting Thread | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | |||
| Accuracy Class | ±1.6% | |||
| Measuring Range (MPa) | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | |||
| -0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||
| 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||
| Power | 30 VA | |||
| Max. Operating Voltage | DC 220V or AC 380V | |||
| Safe Operating Voltage | DC 24V | |||
| Max. Operating Current | 1A | |||
| Safe Operating Current | 0.1 A | |||
Overview

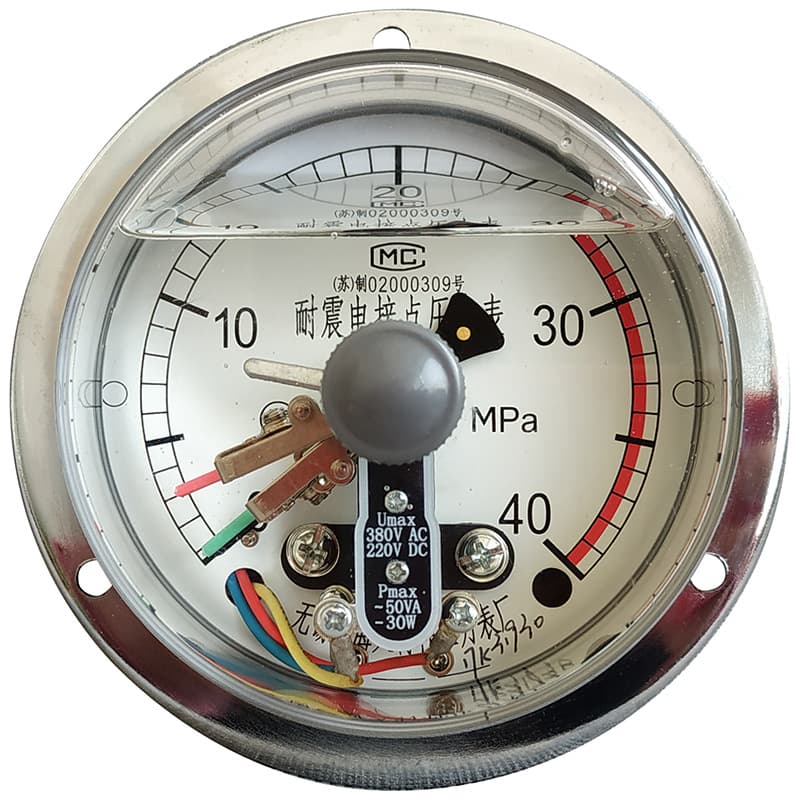

By using the magnetic effect contact device, YXC has the advantage of large rated power, sending message reliable and long service life… Can resist media pulsating and environmental vibration. It is widely used in petroleum chemical, metallurgy and power station industry…etc, or measure the pressure of various fluid media without explosion risk while matching the mechanical and electrical equipment. Usually, magnetic snap-action contact pressure gauges are applied together with corresponding electrical devices (such as relay and contactor, etc.), to automatically control the pressure system and send alarm message. To adapt the universal application requirements, the liquid-filled version, anti-corrosion version…etc are developed out.
Feature
1.Up to 2 switch contacts per instrument (upper switch and lower switch).
2.Instruments with inductive contacts for use in hazardous areas.
3.Working Voltage: 380V.
4.Both liquid filled and non-filled are available.
5.Both back mount and lower mount (radial) are available.
6.Measurement unit could be bar, psi.
