For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments.Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
Specification
| Model | YXNG-100 | YXNG-100BF | YXNG-150 | YXNG-150BF |
| Nominal Size | Φ100 | Φ150 | ||
| Fitting Thread | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | |||
| Accuracy Class | ±1.6% | |||
| Measuring Range (MPa) | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | |||
| -0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||
| 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||
| Upper Limit of Pressure | 2/3 | |||
| Vibration Class | V.H.4 | |||
| IP Protection Class | IP64. (IP65 must be customized) | |||
| Max. Operating Voltage | AC·220V | |||
| Max. Load Current | 3A | |||
Overview

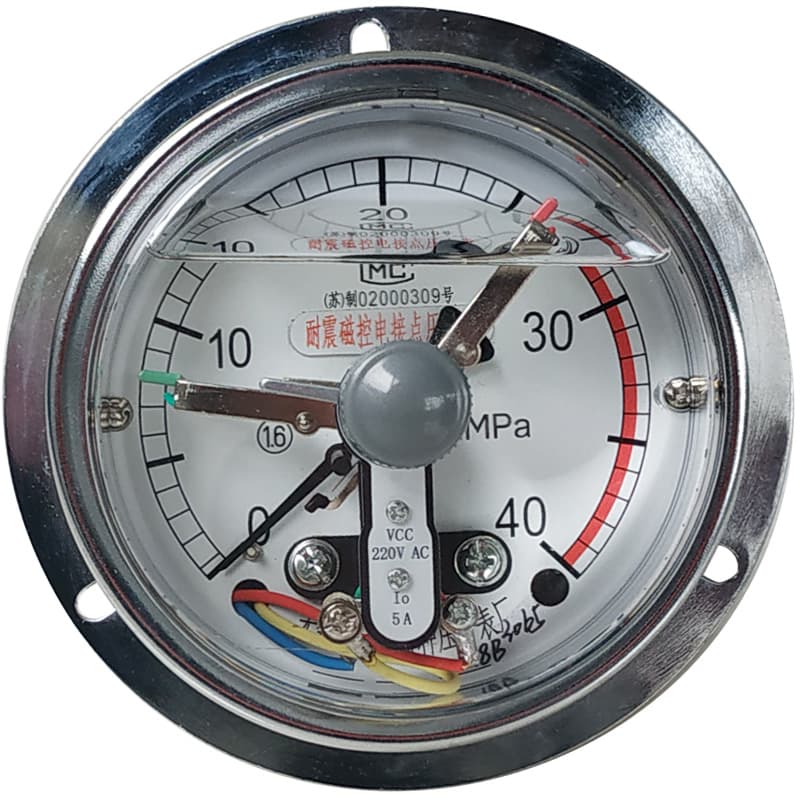

YXN-G serials gauges use high pressure resistant reed switch plus the high precision PCB, contact points are sealed in vacuum, isolated from damper oil, which ensured reliable signal switch, non electric arcing, quick response, effectively overcome the weakness of traditional model to improve the electrical life, so the overall performance is excellent.
Compared to the normal contact pressure gauge, which is low capacity in contact points, immersed in the damping liquid, so surrounded by oil film, big electrical resistance, easily burn up resulted in malfunction, YXN-G serials pressure gauge is excellent in ressisting enviroment shock, medial pulsating and impact load. Functioned by upper/lower 2 limits switch with adjustable signal, are suitable for the automatic control signal switch with AC 220V or above.
Feature
1.Up to 2 switch contacts per instrument (upper switch and lower switch).
2.Instruments with inductive contacts for use in hazardous areas.
3.Working Voltage: 220V.
4.Both liquid filled and non-filled are available.
5.Both back mount and lower mount (radial) are available.
6.Measurement unit could be bar, psi.
