Be applied to hydraulics and pneumatics,pumps and compressors.
Specification
| Model | YSZ-AB-1 | YSZ-AB-2 | YSZ-OB | YSZ-GB | YSZ-QB | |
| Accuracy Class | ±0.2%FS 、±0.5%FS | |||||
| Measurement Range (Mpa) | 0~1.6、2.5、4、6、10、16、25、40、60MPa | |||||
| 0~0.1、0.25、0.4、0.6、1、1.6、2.5、4、6、10、16、25、40、60MPa，-0.1~0MPa | ||||||
| Display | 4 digitLCD | 4/1/2 digit LED | ||||
| Output Signal | / | / | 4~20mA·DC、0~10mA·DC、0~5V·DC、1~5V·DC等 | |||
| Operating Enviroment | Digital Display portion | Temperature：5~40°C Related Humidity <85% | ||||
| Pressure Transmitter portion | Temperature：-20~+80°C Related Humidity up to 100% | |||||
| Power Supply | 3.6V Lithium Battery | 24V·DC | ||||
| Control Method | No control | Upper/Lower Limits Control, Alarm | ||||
| Capacity | / | AC·220V/3A | ||||
| Lifetime of touch point | / | ≥100000 cycle | ||||
Overview
YSZ-AB-1 Series internal electric digital display pressure gauge uses large capacity lithium battery supply, low power consumption, can work continuously for a long time, automatic light control or magnetic control switch can extend the life time of the battery; When LOBAT pops up, it means the battery is low and should be recharged in time with an unused charger (charger is provided separately). The instrument is waterproof and explosion-proof, especially suitable for the pressure measurement in the field with no power supply. With the adjustment device, it can be used on field.

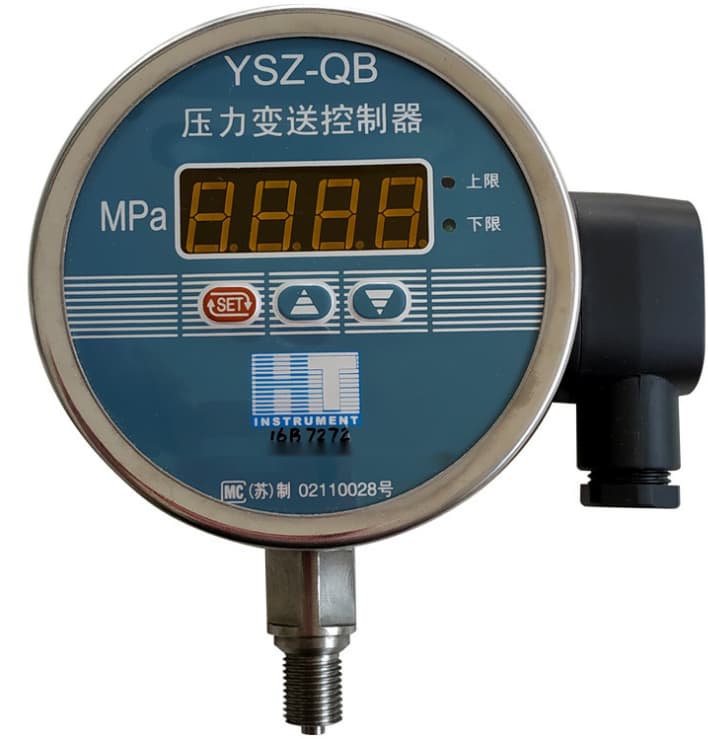

YSZ-QB Series digital display pressure controller is a multifunctional product which integrates pressure measurement, display and control. The product is an all-electronic structure, with a piezoresistive pressure sensor with a diaphragm filled oil core at the front end. The output signal is converted to standard signal by an amplifier circuit with high precision, low temperature drift and high reliability. It is easy to use, simple operation, easy to adjust, widely used in power, tap water, water treatment, petrochemical, metallurgy…etc. industries, to measure the pressure of the fluid medium and display & control, is an ideal replacement of the pointer type electric contact pressure gauge.
Feature
1.Both back mount and lower mount (radial) are available.
2.Battery and external power source are available.
