Specification
| Model | YE60 | YE60BF | YE75 | YE75BF | YE100 | YE100BF | YE150 | YE150BF |
| Nominal Size | Φ60 | Φ75 | Φ100 | Φ150 | ||||
| Fitting Thread | M14×1.5、G1／4＂、ZG1／4＂、 | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | ||||||
| 1／4NPT、G3／8＂、ZG3／8＂ | ||||||||
| Accuracy Class | ±2.5％,±1.6％ | |||||||
| Measuring Range (KPa) | Possitive Pressure | 0～1.6,0～2.5,0～4,0～6,0～10,0～16,0～25,0～40 | ||||||
| Negative Pressure | -1.6～0,-2.5～0,-4～0,-6～0,-10～0,-16～0,-25～0,-40-0 | |||||||
| Possitive/Negative Pressure | -0.8～+0.8,-1.2～+1.2,-2～+2,-3～+3,-5～+5,-8～+8,-12～+12,-20～+20 | |||||||
Overview

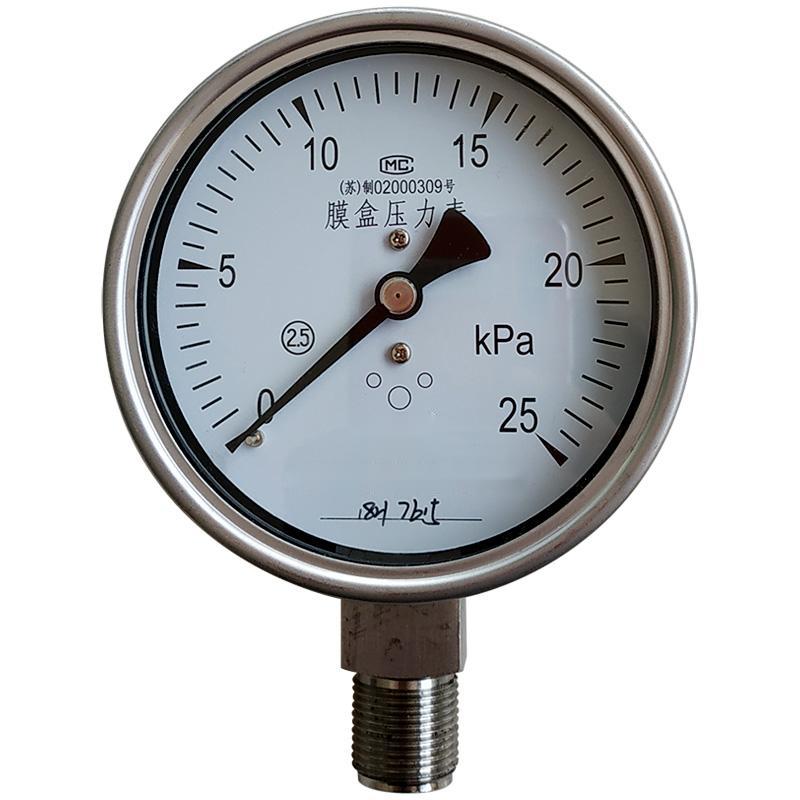

YE Serials Capsule pressure gauge is suitable for measuring the micro pressure and negative pressure without corrosion to copper alloy and no explosion risks. Widely used in boiler ventilation and gas pipelines and so on, this instrument can be installed and indicated on site.
Stainless steel capsule pressure gauge is developed with reference to the structural of the ordinary capsule pressure gauge. Made of stainless steel, it can measure the micro-pressure and negative pressure of all kinds of liquid media when the process requiring higher corrosion resistance.
Feature
1.Low pressure series.
2.Both Copper alloy wetted parts & stainless steel parts.

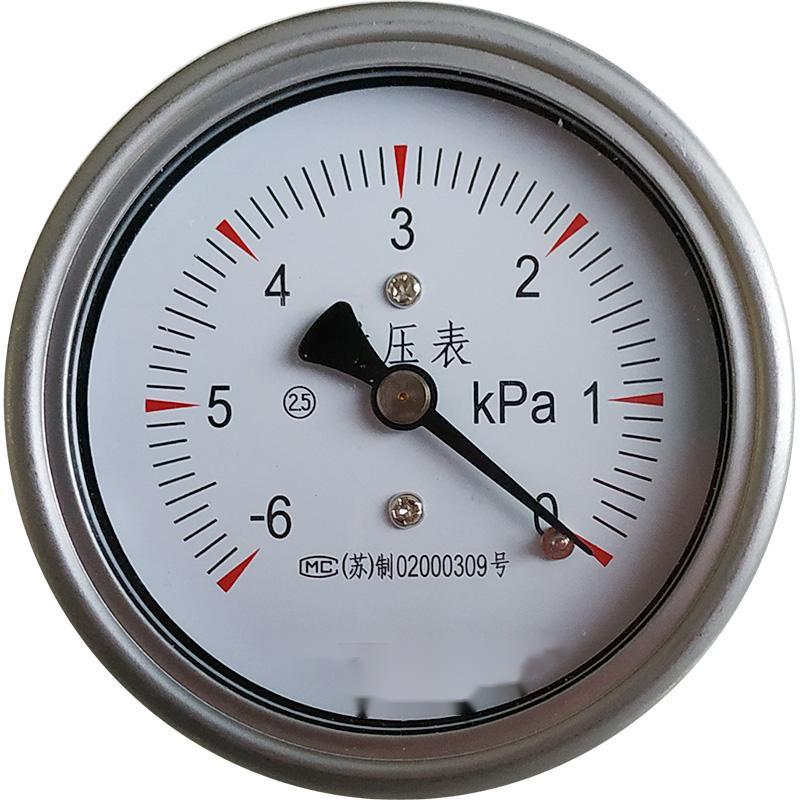

3.Both back mount and lower mount (radial) are available.
4.Measurement unit could be bar, psi.
