With liquid-filled case for applications with high dynamic pressure loads or vibrations.
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments.
Oil and gas industry, chemical and petrochemical industries, power engineering and also water and wastewater technology.
Specification
| Model | Y-40BF | Y-60BF | YN-60BF | YW-60BF | Y-100BF | YN-100BF | YW-100BF | Y-150BF | YN-150BF | YW-150BF |
| Nominal Size | Φ40 | Φ60 | Φ100 | Φ150 | ||||||
| Fitting Thread | 1／8NPT | M14×1.5、G1／4＂、ZG1／4＂、 | M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂ | |||||||
| 1／4NPT、G3／8＂、ZG3／8＂ | ||||||||||
| Accuracy Class | ±2.5% | ±2.5％ | ±1.6％ | |||||||
| Measuring Range (MPa) | 0～6，-0.1～0 | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3， | ||||||||
| -0.1～0.5，-0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||||||||
| 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||||||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||||||||
| Note: For YW-150BF, when temparature is above 200˚C, radiator is needed to ensure the instrument's accuracy | ||||||||||
Overview
All components are stainless steel, the main parts are made of 0CrL7Ni12Mo2 (316), suitable for the pressure measurement for strong corrosive media in enviroment of the corrosion gas. Widely used in petroleum, chemical, optical fiber, metallurgy, power station, phamarcy and food industrial fields.
(Liquid-filled) All stainless steel pressure gauge is more applicable in severe vibration. When measure the pressure of media with strong pulsating, the dial indication still sustains higher accuracy and stability, and long service life. Therefore, it has a wider applications.
Feature
1.Excellent load-cycle stability and shock resistance.
2.Completely from stainless steel.
3.Corrosion resistance and high temperature (200℃) resistance.
4.Both liquid filled and non filled are available.

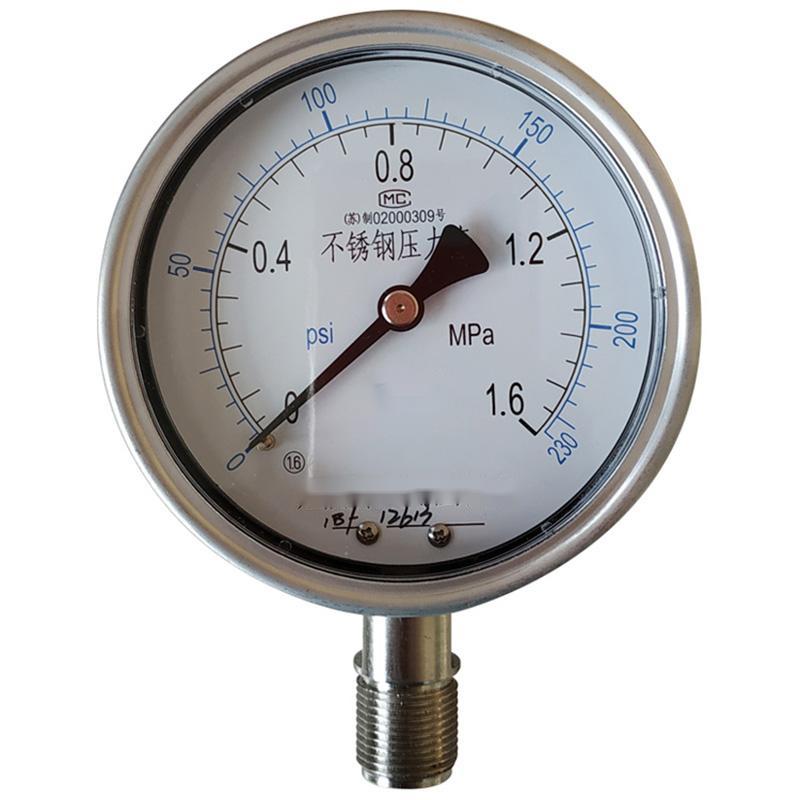

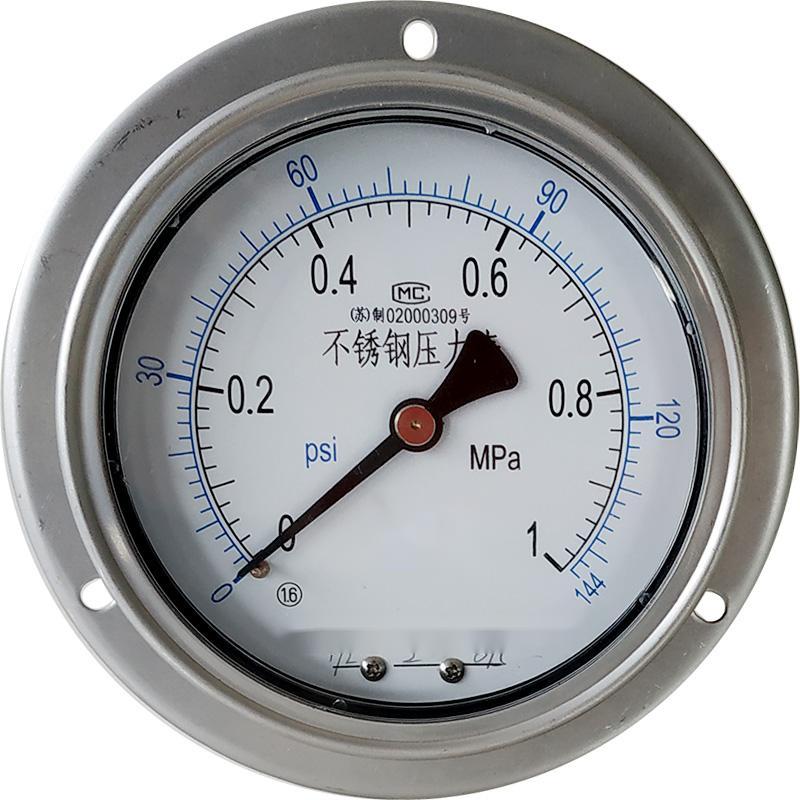

5.Both back mount and lower mount (radial) are available.
6.Measurement unit could be bar, psi.
