Intended for adverse service conditions where pulsating or vibration exists (with liquid filling).
Hydraulics and compressors.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Specification
| Model | YN60 | YN75 | YN100 | YN150 |
| Nominal Size | Φ60 | Φ75 | Φ100 | Φ150 |
| Fitting Thread | M14×1.5、G1／4＂、ZG1／4＂、 | M20×1.5、ZG1/2＂、G1/2＂、 | ||
| 1／4NPT、G3／8＂、ZG3／8＂ | 1/2NPT、G3／8＂、ZG3／8＂ | |||
| Accuracy Class | ±2.5% | ±1.6% | ||
| Measuring Range (MPa) | Vacuum | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | ||
| -0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||
| Non Vacuum | 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | |||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 | ||||
Overview
YN serials pressure gauge is excellent in shock resistance. With applications of high mechanical vibrations and media pulsating, it’s suitable for pressure measurement of gaseous, liquid and vapor media which has no risks of explosion, not highly crystallization or viscous, and will not attack copper alloy parts.With stable dial indication and clear reading, this type of gauges are widely used in heavy machinery, mining machinery, petrochemical industries, metallurgical and power industries.
Feature
1.Vibration and shock resistant (with liquid filling)
2.Copper Alloy

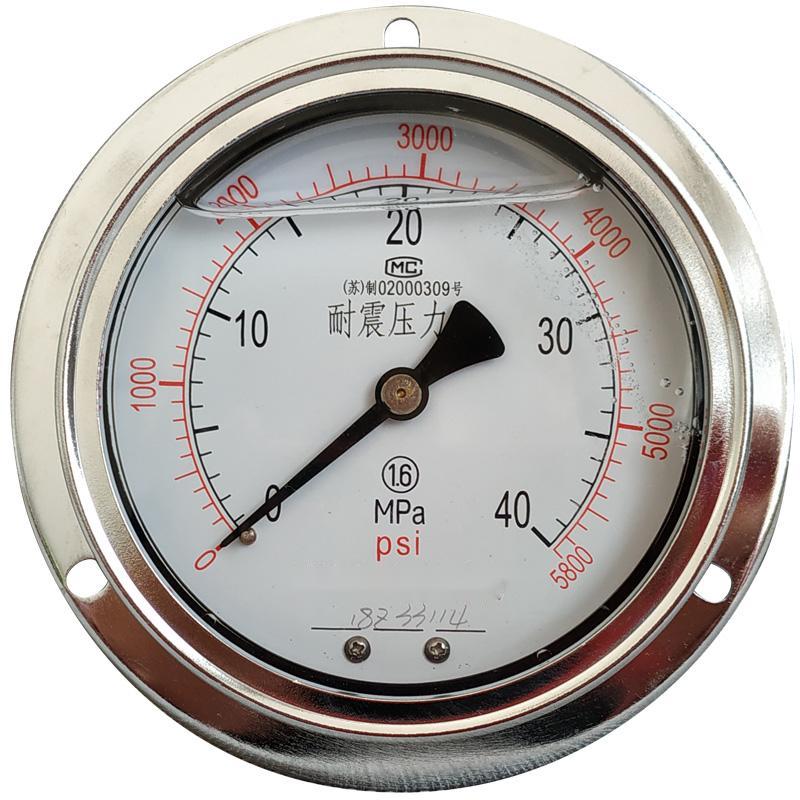

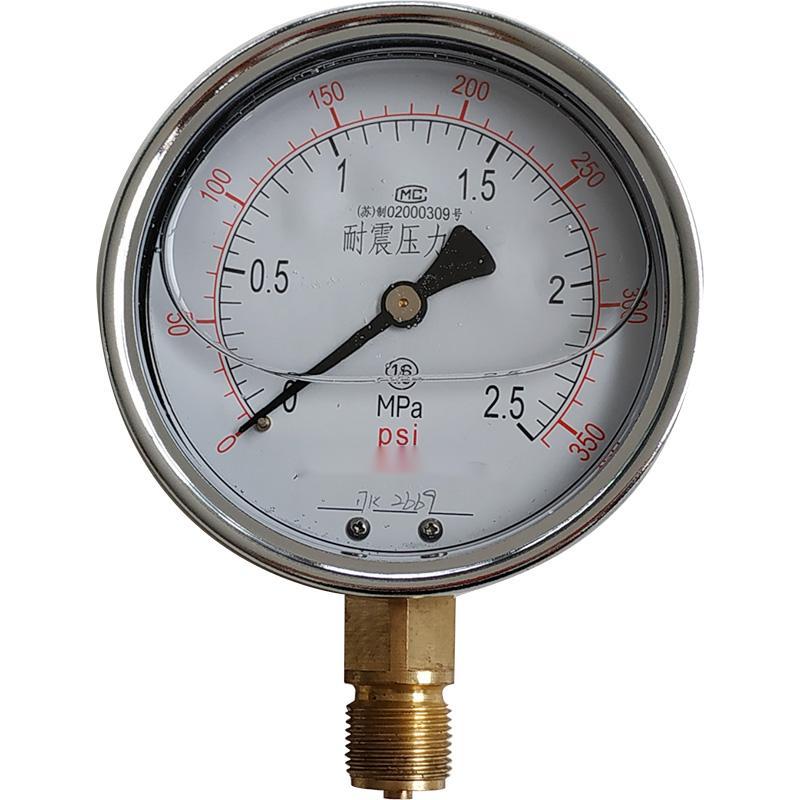

3.Both back mount and lower mount (radial) are available
4.Measurement unit could be bar, psi.
