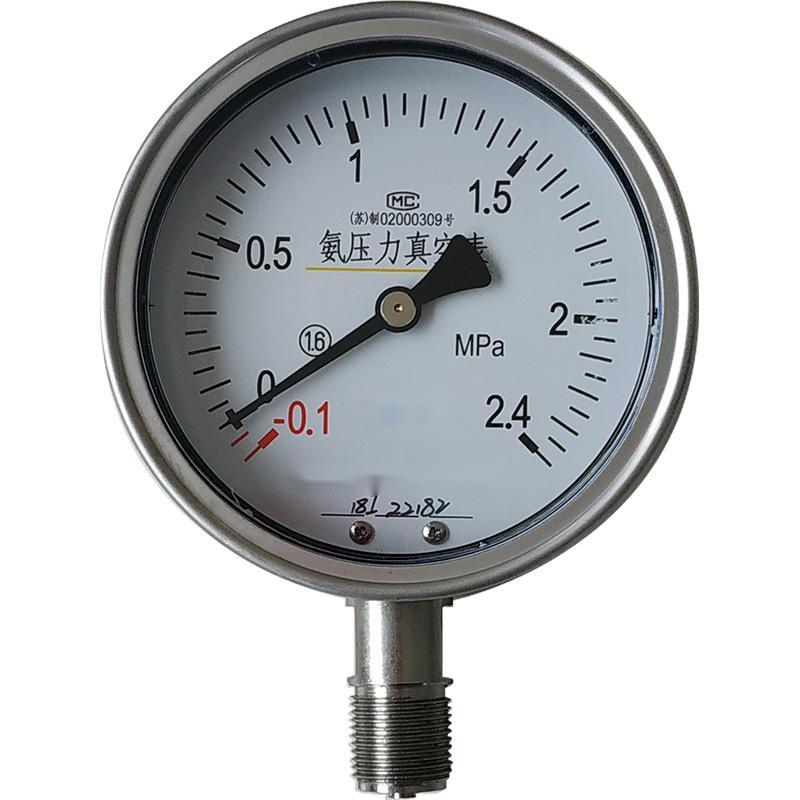

Specification
| Model | YA60 | YA60BF | YA100 | YA100BF | YA150 | YA150BF |
| Nominal Size | Φ60 | Φ100 | Φ150 | |||
| Fitting Thread | M14×1.5、G1／4''、ZG1／4''、 | M20×1.5、ZG1/2＂、G1/2＂、 | ||||
| 1／4NPT、G3／8''、ZG3／8'' | 1/2NPT、G3／8＂、ZG3／8＂ | |||||
| Accuracy Class | ±2.5％ | ±1.6％ | ||||
| Measuring Range (MPa) | -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5， | |||||
| -0.1～0.9，-0.1～1.5，-0.1～2.4 | ||||||
| 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6, | ||||||
| 0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60 | ||||||
Feature
1.Both Copper alloy wetted parts & stainless steel parts.
2.Both liquid filled and non-filled are available.
3.Both back mount and lower mount (radial) are available.
4.Measurement unit could be bar, psi.

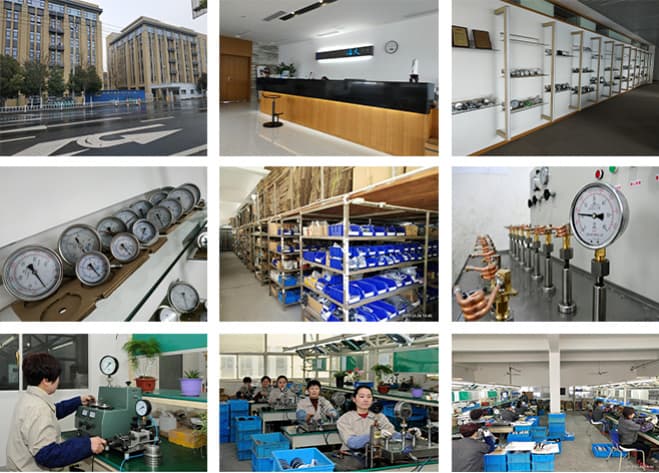

Production
