Air conditioning outlet

•

  FK · C side wall grille tuyere

  FK-C tuyere for the side wall grille type tuyere, often used for bathroom, bathroom return air, elevator, pipe and access port decoration. The blades of this series of tuyere are identical. The FK-C can be equipped with a filter. Commonly used main materials: 1, aluminum alloy 2, wood 3, stainless steel

  contact us
•

  Floor diffuser

  The FB floor diffuser is installed on the ground and can withstand the pressure of the human body and the daily maintenance machinery and equipment. It is divided into two types: aluminum and plastic. The wind direction adjustment disk is attached inside to adjust the airflow direction to achieve horizontal or direct air supply. FB floor flow can be connected to the plenum, or can be directly bought on the raised floor. The floor diffuser is suitable for installation in places where the top is not easy to buy pipes, such as the stands of the stadium, the conference room, the seat under the grand theater and the computer room where there is an elevated floor. Commonly used main materials: the panel is made of aluminum or plastic, the wind direction adjustment disk is made of polymer material, and the dust collecting bucket is plastic.

  contact us
•

  Stepped swirling air outlet

  SD step swirl air outlet adopts the processing technology of single stamping forming, no joint and solder joint. Installed on the facade of the auditorium steps of concert halls, conferences, cinemas and sports venues, blowing out rotating air flow, induction ratio is large, speed decay is fast, low sound, high comfort. Commonly used main materials: steel plate, aluminum plate, stainless steel, surface electrostatic powder coating

  contact us
•

  Single grille air outlet

  The blade Angle can be arbitrarily adjusted within the range of 0°-180°, and the blade can be adjusted to different positions to obtain the corresponding air supply distance and diffusion yong. The rear of the tuyere can be equipped with a regulating valve to control the wind volume and wind speed within an appropriate range. The size can be customized according to customer requirements, such as large size can be processed in groups. V means the front set of blades are vertical, H means the front set of blades are horizontal.

  contact us
•

  Light tuyere

  It is composed of conventional tuyere, plenum and fluorescent lamp, such as strip sickle shape and line shape. Not only the appearance is beautiful and has anti-coagulation, the sound is low, so that the designer has a greater choice of space, in the building decoration, decoration has a modern cylinder, the ideal of planning. Description: The size of the tuyere and the supporting plenum is processed according to the design requirements.

  contact us
•

  TCD seat supply column

  It is used to fix the bottom of the seats, such as the concert hall, conference space, movie theater, sports stadium stands, audience seats, etc. The shell has the characteristics of low turbulence and low noise. It is divided into two types: ink-bearing type and non-ink-bearing type. The star seat outlet can be used as a seat bracket by combining very well with seat. When installed, it can be connected to the bottom air duct or the ground of the high static pressure sandwich.

  contact us
•

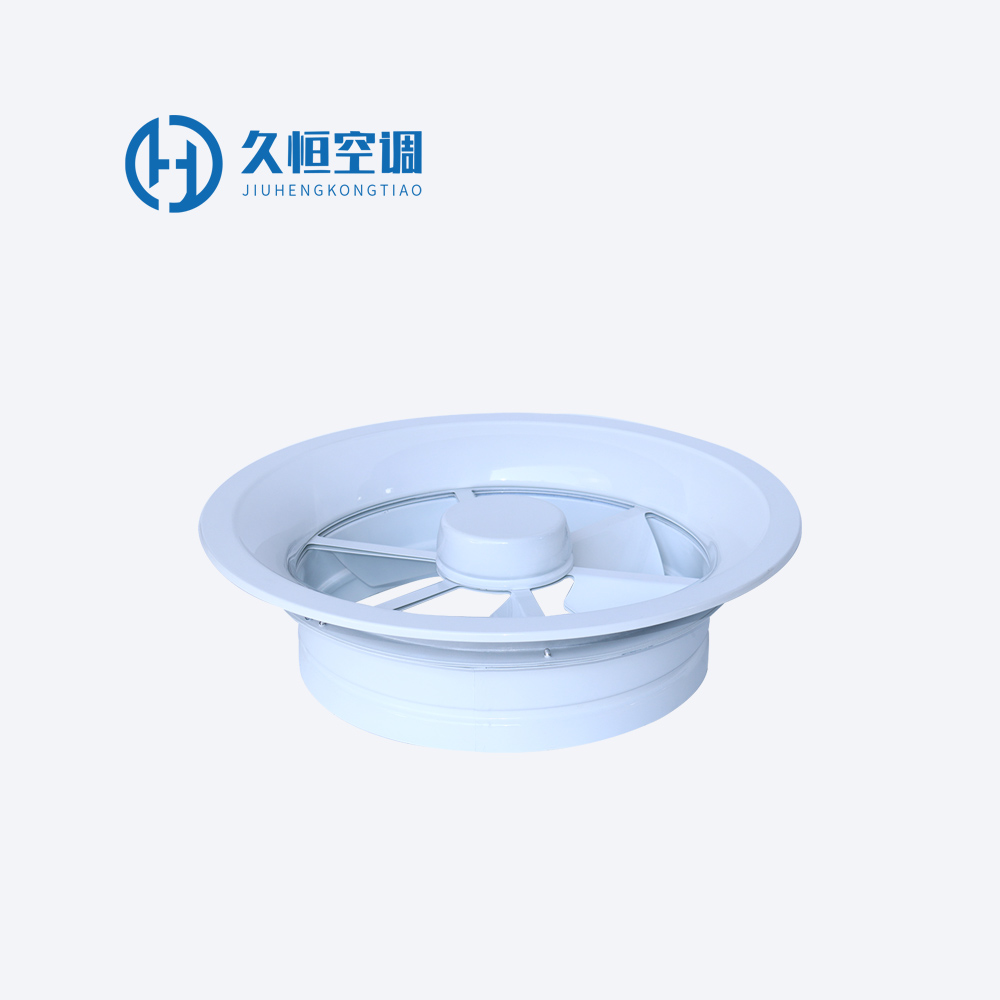

  Swirling air outlet

  FK-YXII series is one of the new product series of our company. It can be widely used in large Spaces above 3.8m in height, such as airports, station waiting halls, theaters, stadiums, industrial plants, commercial business halls, large conference rooms, shopping malls and so on.
