Automation equipment

•

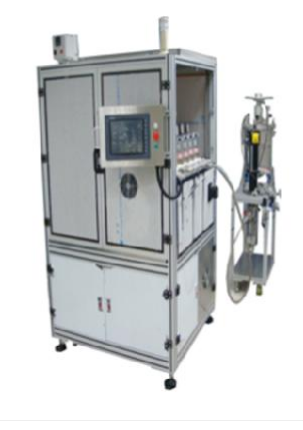

  Universal high precision automatic dispensing machine

  Dimensions: 1000mm*1000mm*1800mm
  Operation mode: OP loading and unloading
  Efficiency: loading and unloading 6s, single CT can reach 2s
  Features: 1. Product type can be identified according to SN
  2. The software automatically plans the optimal glue path to improve the UPH
  3. The two kinds of glue can be automatically mixed evenly according to a certain proportion, and then quantitatively coated on the product

  contact us
•

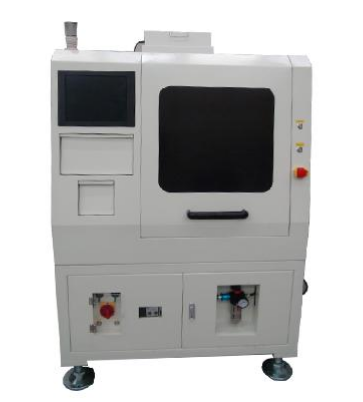

  Universal high precision automatic labeling machine

  Dimensions: 1200mm*1500mm*1800mm
  Operation mode: Inline
  Efficiency: loading and unloading 4s, single CT can reach 3s
  Incoming material: Roll material, compatible with 4 labels at the same time
  Labeling accuracy: 0.1mm
  Features: 1. Can identify the product type according to SN, can be mixed production
  2. Compatible with 3-100mm labels, the nozzle can be automatically changed according to the label type
  3. With product self-test function, production data can be uploaded to the server in real time

  contact us
•

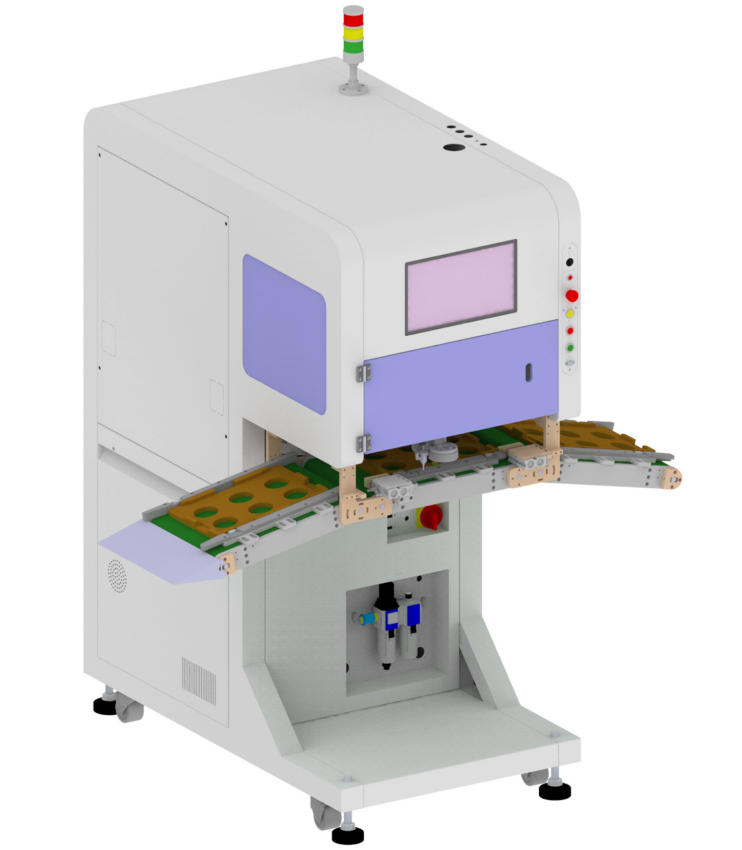

  Universal high precision automatic locking screw machine

  Dimensions: 1100mm*900mm*1800mm
  Operation mode: Inline
  Efficiency: Single screw CT up to 3s
  Incoming material: Screw feeder, support 4 screw feeder
  Positioning accuracy: 0.1mm
  Features: 1. Can identify the product type according to SN, can be mixed production
  2. Position mode and torque mode are optional
  3. With product self-test function, production data can be uploaded to the server in real time
