Robot automatic spraying production equipment

•

  Complete Set System for Automated Wheel Hub Production Line

  Description: By adopting a big data platform for intelligent scheduling production, the personnel arrangement in the production workshop has been reduced. The overall floor space occupied by the equipment is small, the production space in the workshop is increased, and it is convenient to place other production equipment and materials. The entire production line has introduced the MES production management system, making the production in the factory workshop more intelligent. It can monitor the status of production equipment in real time and greatly improve production efficiency.

  contact us
•

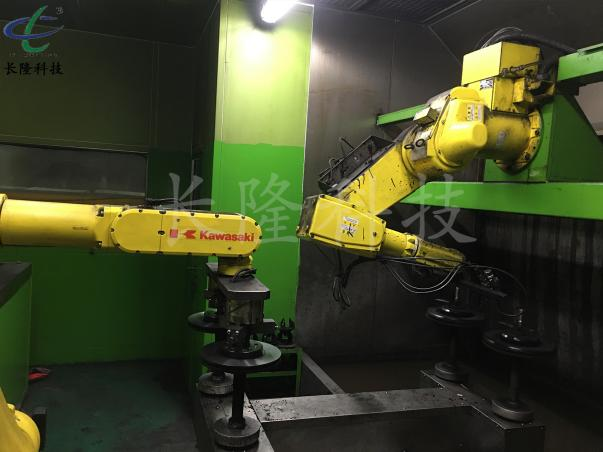

  Automobile Brake Disc Robot Automated Spraying Line

  Description: Roller conveyor transportation, Kawasaki manipulator BX200L equipped with servo grippers for loading and unloading, servo turntable rotation, robot loading, and then Kawasaki manipulator KF121 completes the spraying operation.

  contact us
•

  New Energy Vehicle Parts Robot Automated Production Line

  Description: Depending on the quantity and range of workpiece spraying, the Yaskawa MPX3500 robot with a larger action range can be selected. Equipped with an AGMD spray gun, it can flexibly perform spraying.

  contact us
•

  Pneumatic Double Gripper

  Description:
  1. This equipment system is independently designed and manufactured by our company.
  2. The workpiece clamping hand is used to grasp the products fed on and those discharged after the process. It is designed and manufactured based on the deformation amount at each workstation.
  3. The gripper teeth are made of heat-resistant materials to ensure long-term use.
  4. It is composed of a cylinder, connecting rod structure, etc., and the output force, speed, etc. are adjustable.
  5. Parallel switch: The accuracy and clamping force are determined by the gear rack. The gripper is equipped with a detection switch to check if it is missed.

  contact us
•

  Servo Turntable Unit

  Description: All the above-mentioned devices are driven by servo motors and uniformly coordinated by the robot control cabinet. Servo motors can ensure the operational accuracy of robots, thereby guaranteeing their mutual stability and reliability.

  contact us
