Options & Attachments

•

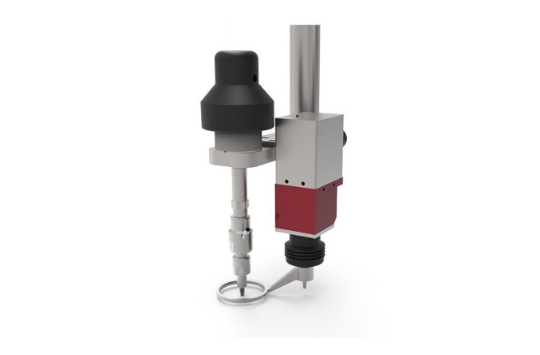

  Height detection and anti-collision integration

  Air pressure :0.2~0.4Mpa; Range :35mm

  Anti-collision safety switch distance :2.2mm

  Anti-collision and height detection integrated design; The mechanism is simple, compact and easy to maintain

  contact us
•

  Laser elevation tracking and anti-collision

  Z-direction travel :300mm

  Laser sensor measuring range :120±60mm

  A high-precision laser scanning sensor is used to scan the surface height of the material and establish the surface size of the plate

  Make a model. The CNC controller then adjusts the distance between the tool head and the material according to the data model.

  contact us
•

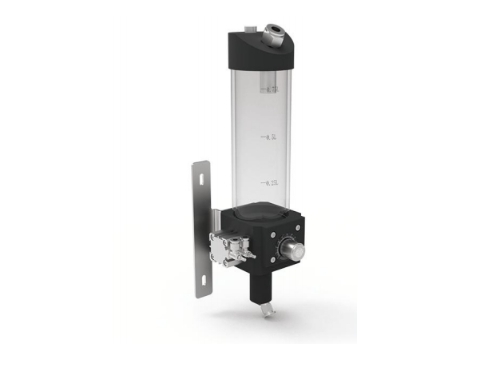

  Small sand bucket (with sand valve)

  Volume :700ml; Air pressure :0.4Mpa; Gear 1-10; Sand production capacity 0~1000g/min

  Vertical transparent sand bucket, the operator can clearly see the sand amount; Automatic control of abrasive supply is realized through CNC auxiliary function.

  contact us
•

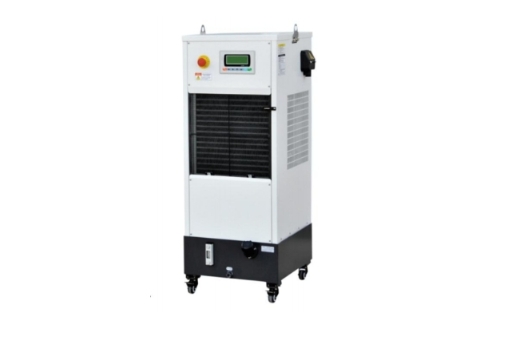

  Oil cooler

  Cooling capacity :6000~10300kcal/h; Ambient temperature :5~45℃

  Oil cooling system, forced cooling and circulation of the oil, improve the operating conditions of the hydraulic system, reduce the temperature of the oil, improve continuous working time, extend the service life of the equipment and so on.

  contact us
•

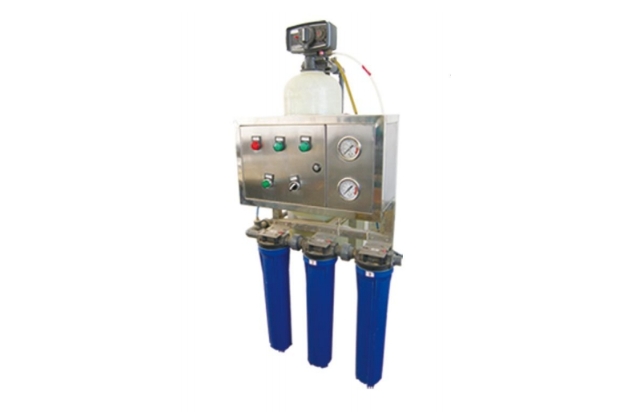

  Softened water system

  Treatment water :1m3/h; Influent hardness :≤9mmol/L; Water hardness :≤0.6mmol/L

  The system reduces various impurities and minerals in the cutting water, thereby protecting high-pressure parts from corrosion. Extend the service life of high-pressure parts.
