Air Conditioning

•

  Electrical Cabinet Air Conditioning Series

  Product features

  Equipped with temperature regulation and dehumidification functions, ensuring ideal temperature and humidity inside the electrical control cabinet;

  Adopting a rotary compressor with high reliability and low energy consumption:

  There is no air exchange between the air inside the cabinet and the ambient air, ensuring the cleanliness inside the cabinet;

  Select high air volume and high static pressure centrifugal fans with large circulating air volume;

  Reasonable air outlet and return structure to avoid air circulation short circuits;

  Equipped with alarm function, real-time detection of the usage status of the air conditioner;

  Small size, light weight, convenient installation, use, and maintenance

  Product Advantage

  High quality components, the main components of electrical cabinets and air conditioners are selected from well-known domestic and foreign brands, such as Shanghai Hitachi Electric for compressors and German EBM for fans; The heat exchanger and sheet metal parts are manufactured and processed by a well-known domestic air conditioner matching factory.

  Advanced testing methods, using German Leibao halogen leak detector to test the refrigeration system, ensure product quality, and greatly guarantee the performance of the electrical cabinet air conditioner.

  Our company has established a comprehensive service system and collaborated with multiple air conditioning after-sales service departments in China to ensure that customers receive the most timely and comprehensive support.

  Application scope

  It has been widely used in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, automobiles, military industry, etc. Currently, some large data processing centers and CNC machining centers in China have also been widely used. The excellent efficacy and performance of electrical cabinet air conditioners are gradually gaining high recognition from more and more high-end foreign users.

  contact us
•

  Industrial cabinet air conditioning

  Side mounted or door mounted wall mounted cabinet air conditioning

  1. Exquisite design, easy installation and maintenance. Adopting a compact design, multiple cooling solutions are available for smaller cabinets and parallel cabinets.

  2. High quality branded refrigeration components with long-lasting and stable cooling effects;

  3. Automatic constant temperature function, high control accuracy, wide temperature adjustment range, accurate and adjustable cabinet temperature of 15 ℃ -35 ℃.

  4. Equipped with various alarm protection functions and providing passive signal output, the multifunctional controller has a 485 communication interface and can be remotely controlled to monitor the operation status of the air conditioning.

  5. Stainless steel, carbon steel spray molding, or various special materials can be used as options for cabinet air conditioning applications under different environmental conditions.

  contact us
•

  Side mounted cabinet air conditioner BC-500

  Side-mounted or door-mounted wall-mounted cabinet air conditioners

  1. Exquisite design and easy maintenance. Compact design, multiple cooling solutions.

  2. High-quality brand accessories, with long-lasting and stable cooling effect.

  3. Automatic constant temperature function, high control accuracy and wide temperature adjustment range.

  4. Optional alarm protection output, equipped with 485 communication interface, can be controlled remotely.

  5. A variety of special materials such as stainless steel and carbon steel are available for cabinet applications under different conditions.

  contact us
•

  Side mounted cabinet air conditioner BC-2500

  Side-mounted or door-mounted wall-mounted cabinet air conditioners

  1. Exquisite design and easy maintenance. Compact design, multiple cooling solutions.

  2. High-quality brand accessories, with long-lasting and stable cooling effect.

  3. Automatic constant temperature function, high control accuracy and wide temperature adjustment range.

  4. Optional alarm protection output, equipped with 485 communication interface, can be controlled remotely.

  5. A variety of special materials such as stainless steel and carbon steel are available for cabinet applications under different conditions.

  contact us
•

  High temperature cabinet air conditioner BCH-450

  Side-mounted or door-mounted high-temperature cabinet air conditioner

  1. High temperature resistant design, increased heat dissipation area, special working condition compressor.

  2. Large air volume circulation heat dissipation to prevent high-voltage thermal protection of equipment.

  3. Specially designed filter, resistant to oil and dust, suitable for high temperature environments.

  4. Optional alarm protection output, equipped with 485 communication interface, can be controlled remotely.

  5. Air conditioning working conditions in various temperature ranges can be customized to meet special requirements.

  contact us
•

  Self evaporative side mounted cabinet air conditioner BCZ-3000

  1. Equipped with an integrated condensate vaporizer, it solves the problem of water discharge from air conditioning condensation.

  2. High power heating element with a high evaporation capacity of 1200 milliliters per hour.

  3. Energy saving products with a low power consumption of 120W per hour.

  4. Easy to install, with no changes in the overall structure, and the vaporizer concentrated at the bottom of the air conditioner.

  5. Constant temperature control, automatic adjustment of evaporation capacity, optional real-time monitoring of air conditioning operation status.

  model

  BCZ- 3 0 00

  Power supply form

  1P /220V/50HZ

  Overall dimensions (mm)

  Width W

  43 5

  High H

  111 5

  Thick D

  2 8 0

  Refrigeration capacity

  3 0 00W

  Operating current

  9.2A _

  Condensate evaporation amount

  350ML/H

  input power

  2000W _

  refrigerant

  R22

  work noise

  70dB _ _

  Protection level

  Inner loop

  IP 5 4

  outside loop

  IP 34

  Temperature setting range inside the cabinet

  25℃～38℃(factory setting 30 ℃ )

  Operating ambient temperature range

  - 25 ℃～45 ℃

  Power connection method

  3-core power cord (reserve 2 meters in length)

  Total Weight

  6 5 kg

  Exterior color

  RAL 7035(light gray)

  Circulating air volume

  Inner loop

  1 2 50 m³ / h

  outside loop

  1 55 0m³/h

  Temperature control method

  Digital display temperature controller

  Test conditions: Dry bulb temperature inside the electrical cabinet: 35°C, wet bulb temperature: 26°C, dry bulb temperature outside the electrical cabinet: 35°C

  contact us
•

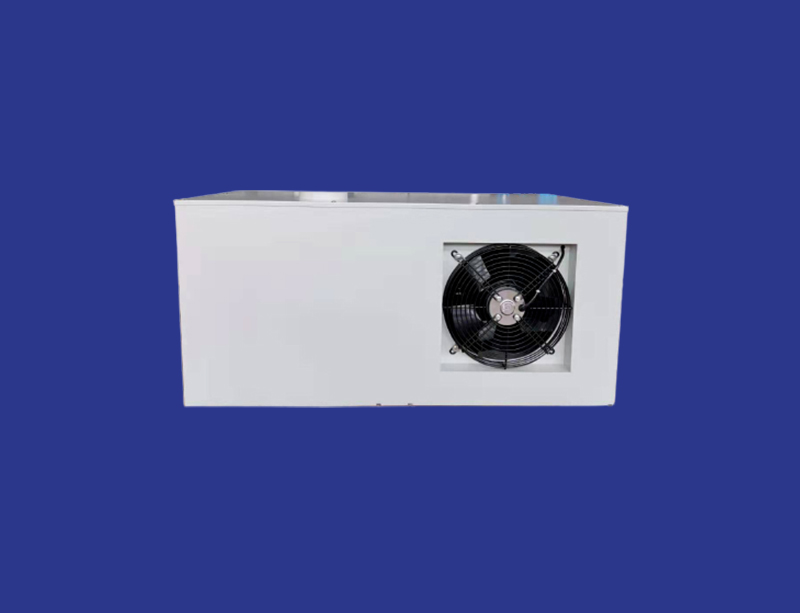

  Top mounted installation method series 2 cabinet air conditioning BDL-10

  1. Double anti-leakage protection at the bottom to ensure that the air conditioner does not drip or leak.

  2. Thicken the condensate pipe for double protection and smooth pipe flow.

  3. It has protection functions such as high voltage, low voltage, overheating and overcurrent;

  4. Compact structure, reasonable air duct, top air outlet and side air outlet are optional.

  5. It has high protection level and can be divided into two forms: outdoor use and indoor use.

  contact us
•

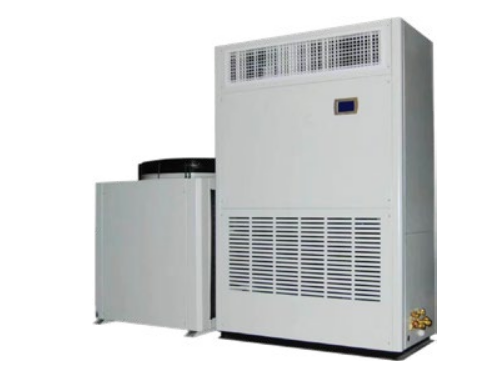

  Computer room air conditioner BG-2.5K~BG-40K

  Product Features

  1. Adopting a microprocessor controller with a Chinese and English operating interface, the operation is simple and easy to understand.

  2. Real time monitoring of indoor and outdoor temperature and humidity. Realize linkage with the computer room air conditioning through intelligent control.

  3. The system has a delay start function and LCD display screen with Chinese characters display function, which is fresh and easy to operate, and can be set with parameters.

  4. The communication interface adopts RS-485 intelligent interface to achieve telemetry, remote signaling, and remote control.

  5. Low noise, good dust prevention effect, and significant energy-saving effect.

  6. The intake and exhaust devices of the fresh air system have insect proof, waterproof, and anti-theft functions, without backflow.

  7. It has fault alarm function, ultra-low temperature and ultra-high temperature alarm function.

  Application

  Medium and large exchange rooms and mobile rooms

  Computer rooms and data centers (IDC). High tech environment and laboratory

  Industrial control room and precision machining equipment

  Standard testing room and calibration center

  UPS and battery room. Biochemical culture room

  Hospitals and testing rooms

  contact us
•

  Outdoor cabinet air conditioning BCW-300~BCW-2500W

  Product Features

  1. By cooling the air inside the control cabinet and dissipating the heat and moisture inside the cabinet outside, temperature sensitive components inside the cabinet are protected;

  2. When the temperature range is between 40 and 55 degrees Celsius and other heat dissipation products cannot achieve the expected effect;

  3. The installation screws of the air conditioner are completely designed inside the cabinet, which plays a good anti-theft role;

  The air circulation inside and outside the cabinet is completely isolated, maintaining good sealing inside the cabinet and avoiding the invasion of external moisture, dust, and insects.

  Application

  Outdoor unmanned stations specifically designed for the communication and testing industries, outdoor control cabinets for power systems, and outdoor LED display control systems must maintain a protection level of IP55 for outdoor electrical cabinets.

  contact us
•

  Top mounted installation method series 2 cabinet air conditioning BDL-10

  Product Features

  1. The main components adopt well-known domestic and foreign brand components, such as Hitachi compressors and German EBM fans;

  2. Dual filtration and dual protection can fully meet the usage environment of high temperature, high heat, high dust, and oil pollution at customer sites;

  3. The air conditioning system is equipped with multiple protection functions, greatly improving the stable operation performance of the air conditioning;

  4. According to customer specific requirements, including stainless steel shell sheet metal, it can improve the corrosion resistance and weather resistance of air conditioners.

  Application

  This series of products uses R134A environmentally friendly high-temperature refrigerant, which can be used in high-temperature environments with ambient temperatures up to 65 degrees Celsius. And the unit structure adopts advanced design concepts, with dual filters installed at the fan inlet, greatly improving the dust and oil resistance of the air conditioning unit. It is especially suitable for steel mills, coking plants, and textile industries with high dust and oil pollution in high and harsh environmental temperatures.
