Hydraulic Cylinder Accessories

•

  Guide Column

  The guide column is a guide element used in combination with components in the mold to ensure that the mold can move and guide the mold stroke with precise positioning. It is generally cylindrical with a shoulder, and usually has an oil groove.
  The roundness of the guide column has high requirements. The main purpose of drilling the center hole is to use the cylindrical grinder to grind the outer diameter, because when using the cylindrical grinder to grind the outer diameter, it is necessary to use the tip to withstand the center hole to make the guide post rotate. Can be ground.

  contact us
•

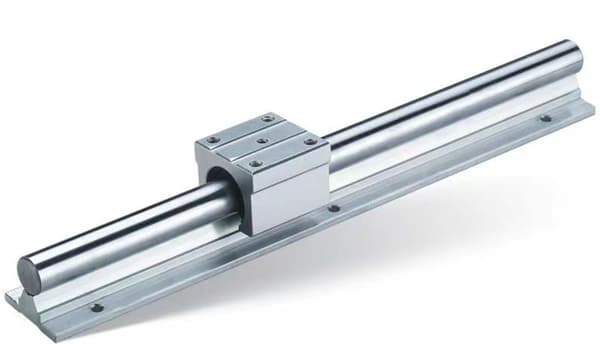

  Guide Rail

  Guide rail, also known as slide rail, linear guide rail, linear slide rail, for linear reciprocating motion occasions, has a higher rated load than linear bearings, and can bear a certain torque, can achieve high-precision linear movement under high load.

  contact us
•

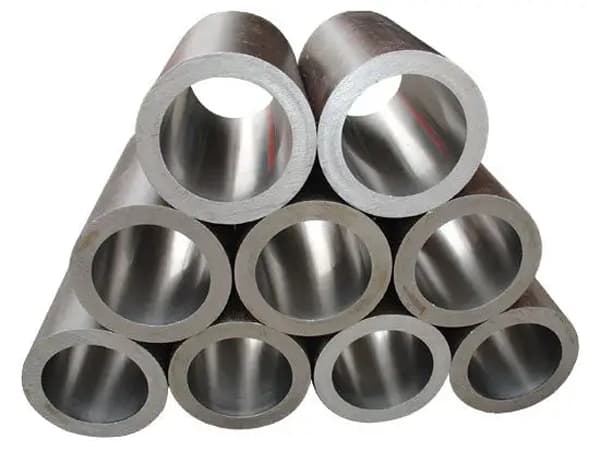

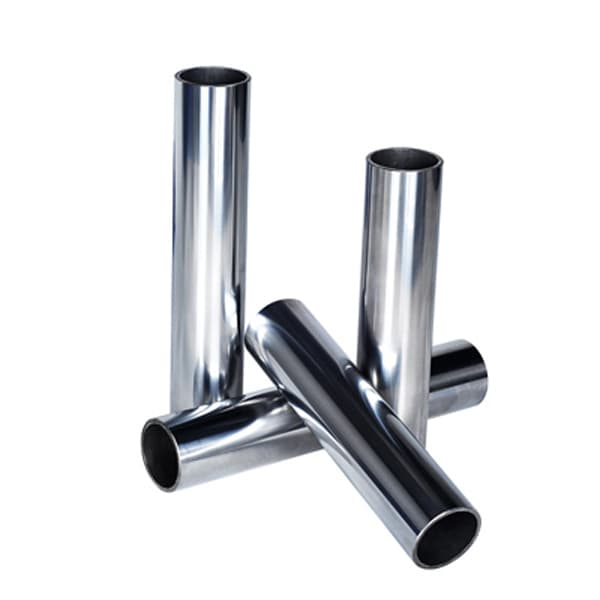

  Cylinder Barrel

  The cylinder barrel is the main part of the hydraulic cylinder, which forms a closed cavity with the cylinder head, piston and other parts to promote the piston movement. There are 8 types of commonly used cylinder barrel structures, which are usually selected according to the connection form of cylinder barrel and cover.

  contact us
•

  Hollow Piston Rod

  Manufactured by advanced technology of precision cold drawing, fine grinding and high precision polishing
  It can be directly used in oil cylinders, air cylinders, shock absorbers, piston rods, and widely used in hydraulic pneumatics, textile printing and dyeing, printing machinery guide rails, die-casting machines, injection molding machine guide rods, ejector rods and four-injection oil press guide columns.
  Rod diameter: 6-1200mm
  Material: 45#, 42CrMo, 40cr, 2Cr13

  contact us
•

  Shaft Pins

  Customization accept.

  contact us
•

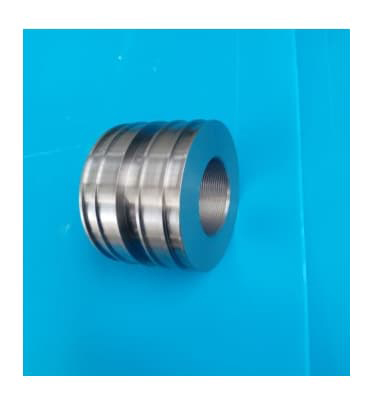

  Piston

  Including:
  Φ127Φ51L94;
  Φ146Φ86L114;
  Φ127Φ57L99;
  Φ133Φ57L86;
  Φ168Φ78L114.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

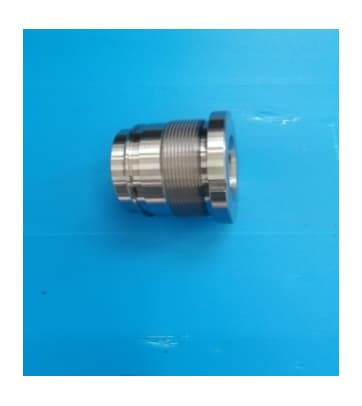

  Gland

  Including:
  Φ133Φ53L129;
  Φ114Φ50L122;
  Φ102Φ46L84;
  Φ102Φ46L84;
  Φ133Φ57L84.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

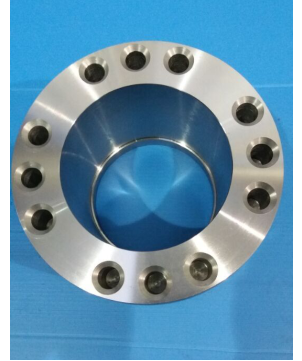

  Tube End

  Including:
  Φ188Φ108L124;
  Φ210Φ126L129;
  Φ219Φ129L134;
  Φ273Φ153L146;
  Φ254Φ144L145.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

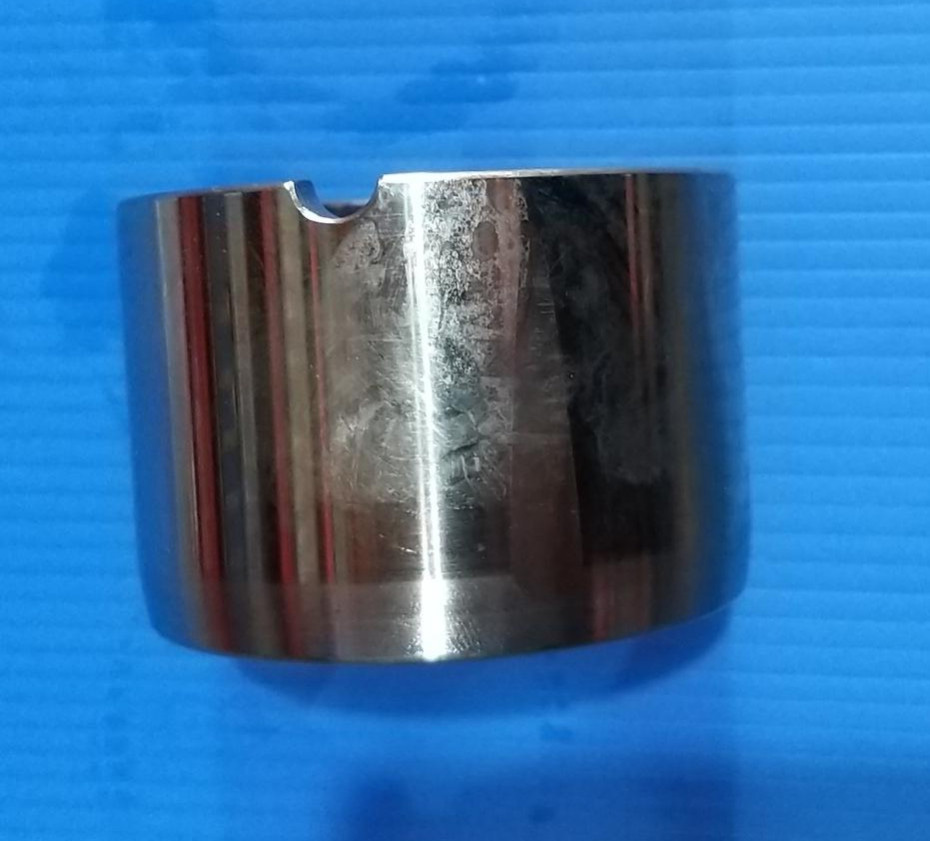

  Cushion-Ring

  Including:
  Φ117Φ101L60;
  Φ125Φ106L60;
  Φ130Φ111L60;
  Φ142Φ121L65;
  Φ91Φ76L60.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

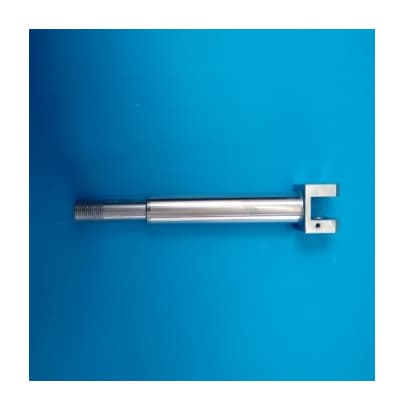

  Rod

  Including:
  Φ53L94;
  Φ73L133.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

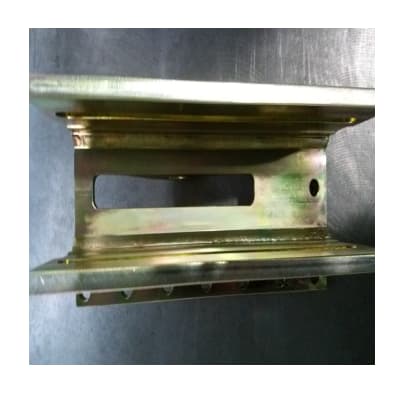

  Guiding Seat

  Including:
  308*181*146.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

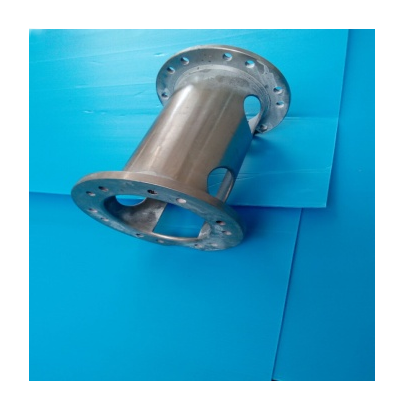

  Support

  Including:
  Φ205L280.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

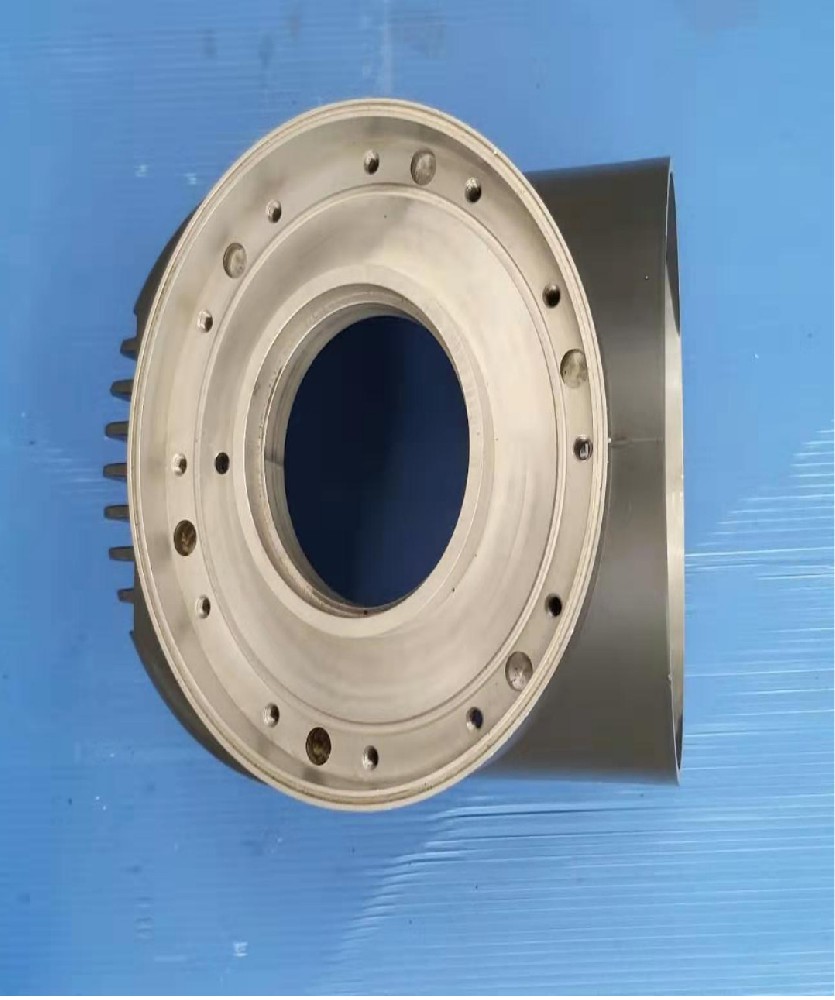

  Housing

  Including:
  Φ190L185.

  OEM & ODM service.
  Sample available.
  MOQ:500 / each size.

  contact us
•

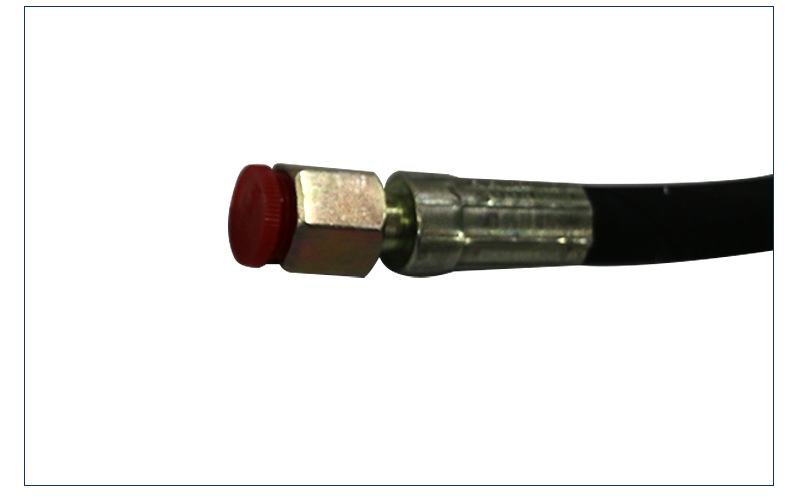

  φ 6 Drift & φ 8 Drift Tubing

  High pressure oil pipe is an integral part of high pressure oil circuit. It is required that the oil pipe should bear certain oil pressure and have certain fatigue strength to ensure the sealing requirements of the pipeline.
  The oil pipes supplied by our company for the lift are mainly divided into the following two specifications:
  φ 6 drift diameter
  6 I layer
  6 Layer II
  φ 8 drift diameter
  8 I layer
  Layer 8 II

  contact us
•

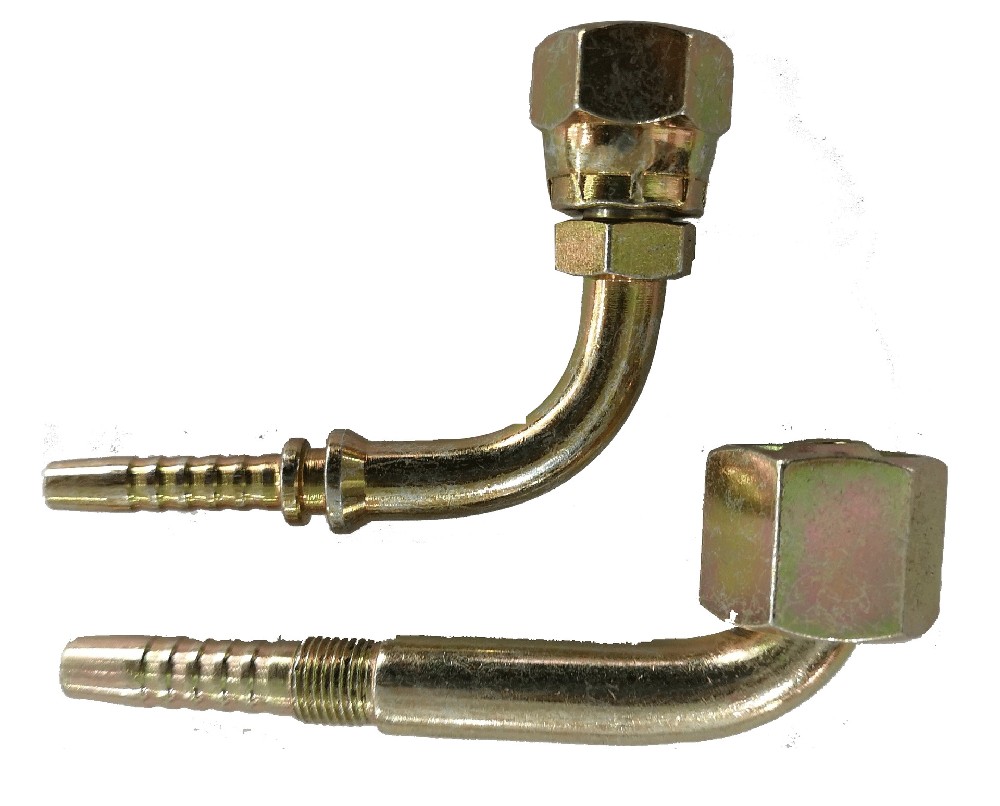

  Hydraulic Mechanical Joint

  Including straight connector, right angle joint, ball joint, bent joint, tee joint, etc. to choose;
  High quality material, stable performance, easy installation;
  Not easy to deform, not easy to break;
  A variety of styles are available for installation and support customization.
