Large Hydraulic Cylinder

•

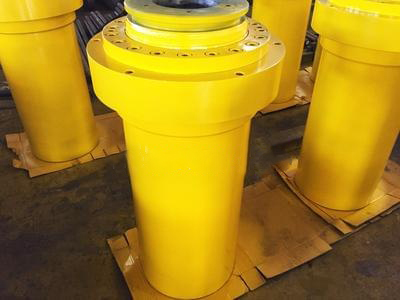

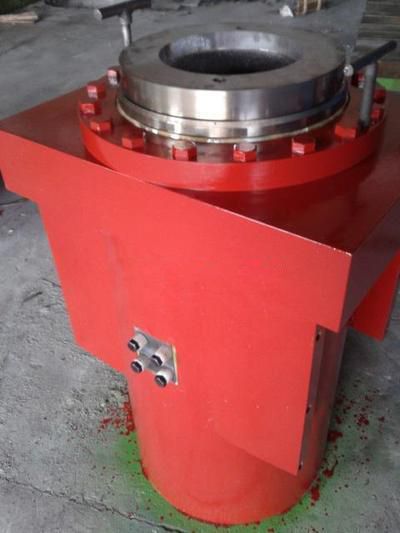

  300 Ton Plunger Cylinder

  This product is a vulcanizing machine master cylinder, the use of 300 tons of pressure, the products for clients of the special shape of customized products, imported seals, long-term high temperature, no leakage, due to the reasonable design, sealing replacement parts only need to stop half an hour can easily done for your production brings the more time and reduce the cost of maintenance and, we can also according to your need for you to provide professional design and reference, you at least cost to produce the best products.
  The hydraulic cylinder piston specifications: diameter of 300mm, test pressure is 31.5Mpa, using pressure is 20MPa, effective stroke: 600mm.

  contact us
•

  3000 Tons Of Tire Vulcanizing Machine Master Cylinder

  Production of tire vulcanizing machine dedicated a large hydraulic cylinder, 3000 tons of pressure, cylinder diameter to 1500-1800 effective stroke and vulcanizing machine bedplate 2800x2800, specially for large tire vulcanizing machine production line application.
  The following is a hydraulic cylinder production process and steps:
  lathe machining (rough machining + precision machining, control of all sizes)
  clean and spray paint to dry, to be equipped with.

  contact us
•

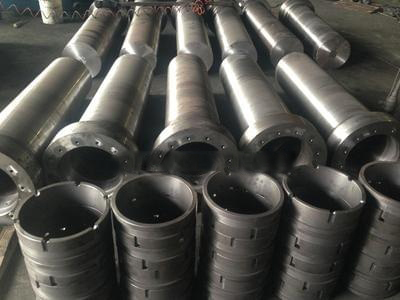

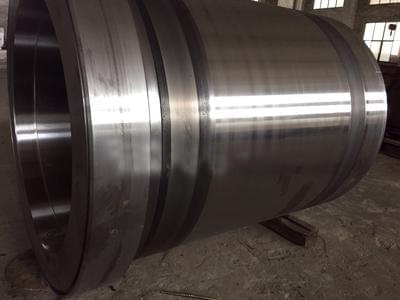

  Cast Iron Roll

  Production of alloy chilled cast iron piston, has the characteristics of several kinds of hollow and solid specifications etc.. Company production of the hollow plunger diameter 200 Phi 1300mm, the length 500~10000mm, casting structure, appearance, strong bearing capacity, solid solid plunger and the plunger surface hardness is consistent, but material saving 30%, 20% of the price of the discount, the plunger surface hardness up to hrc45 ~ 55%, the surface roughness is about 0.6, hardness layer depth is about 10 ~ 15mm for in all kinds of cold, hot pressing machine, vulcanizing machine, copper and aluminum extrusion machine, wood oil cylinder, hydraulic machine, hydraulic machinery, products of good quality, reasonable price, prompt delivery, and thoughtful service.

  contact us
•

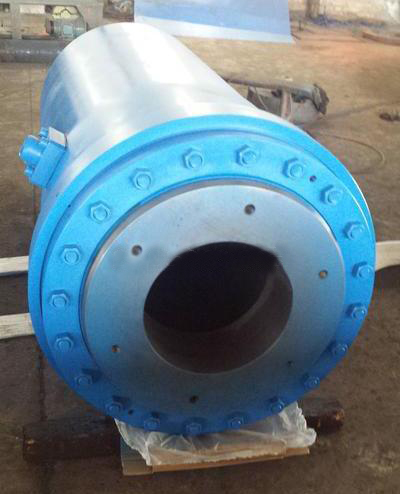

  Hydraulic Cylinder Of Wood Press

  For multi-layer solid wood compressor hydraulic cylinder, due to the long trip, the original design of the hydraulic cylinder cannot be without dismantling the complete mechanical equipment hydraulic cylinder repair and replacement work, according to the customer request the company to provide solutions, hydraulic cylinder can be in without disassembly of the hot pressing board complete of equipment maintenance, greatly reducing the maintenance cost, saves the maintenance time, if your device also has a similar situation, can find, we help you offer a solution.

  contact us
•

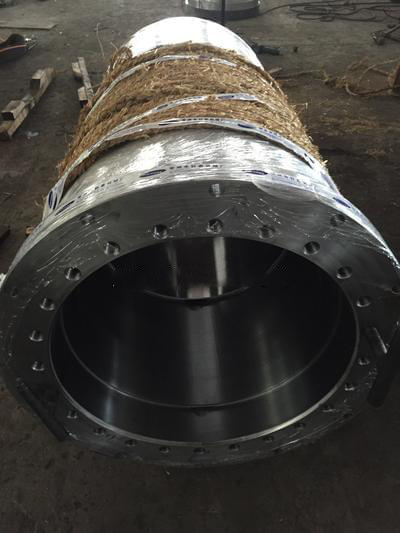

  Integral Forging Cylinder

  Copper, aluminum extrusion machine hydraulic cylinder and forging equipment of hydraulic cylinder, the cylinder using the forging forming advantages: high pressure, long service life, suitable for long time high load work. Disadvantages: forging molding difficult, blank margin, high cost, choose according to your needs, provide drawings, we will provide you with reasonable price.

  contact us
•

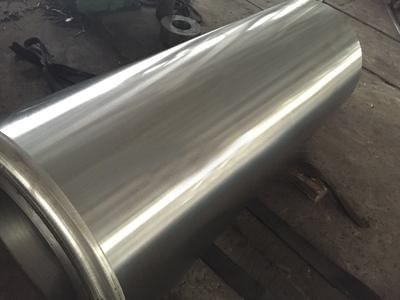

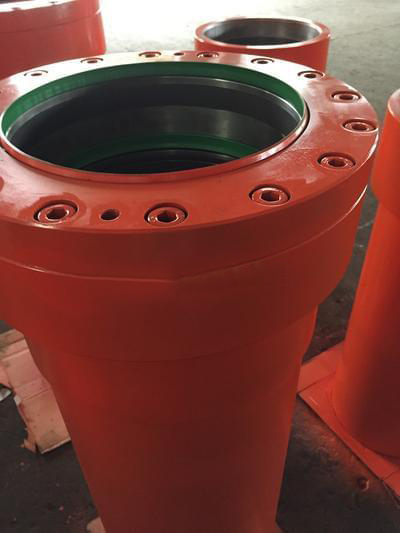

  Special Cylinder For Copper And Aluminum Extrusion Machine

  Provide you with professional customized hydraulic cylinders, such as copper and aluminum extrusion machine, tire vulcanizing machine, wood press, various types of hydraulic machinery main cylinder block, cylinder diameter 300~ diameter 2000mm and 10000mm. Length, pressure 5 ~ 31.5Mpa, customized to your drawings.er using the forging forming advantages: high pressure, long service life, suitable for long time high load work. Disadvantages: forging molding difficult, blank margin, high cost, choose according to your needs, provide drawings, we will provide you with reasonable price.

  contact us
•

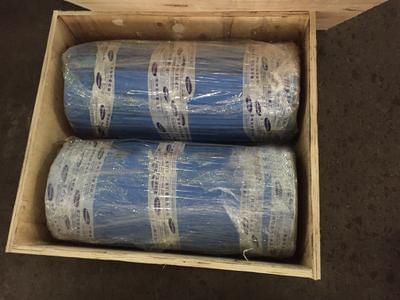

  200 Tons Wood Press Cylinder

  For multilayer solid wood compressor hydraulic cylinder, due to long stroke, the original design of the hydraulic cylinder can not be completed in the mechanical equipment hydraulic cylinder repair and replacement work, according to customer requirements to provide solutions to our company, hydraulic cylinder can be completed in the case of not removing the hot press plate repair, greatly reducing maintenance costs, saving time, if you have a similar situation, you can find us to help you provide.

  contact us
•

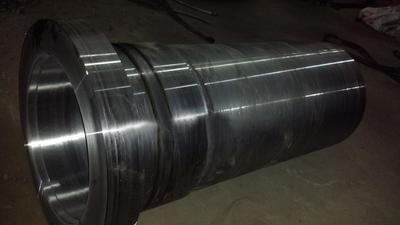

  600 Tons Of Wood Machine Dedicated

  Specialized in producing all kinds of YZG series of woodworking machinery oil cylinder and piston cylinder. It is widely used in wood (Multi - layer press, hot press, cold press, particle board production line), press, curing machine, bamboo plywood. High hardness, good wear resistance, surface hardness of 65-75hsd, the surface finish of the 8 corners, the length of 300-5000mm 250-1300mm production of frozen cylinder piston diameter specifications of the product. According to user requirements, to ensure the user's needs, so time, quality and price of supply.

  contact us
•

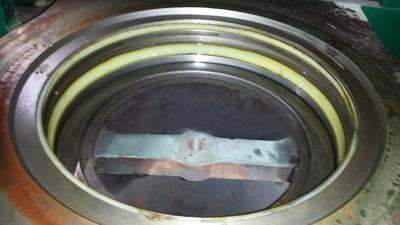

  1000 Ton Export Piston Cylinder

  Produced for customers in Indonesia production supporting press hydraulic cylinder, the hydraulic cylinder plunger diameter Phi 700, travel 2100mm. The pressure of 30MPa, the actual use of pressure is 25MPa, hydraulic cylinder bolts for adjustable double stud, the seal is a V-shaped combined sealing ring and the sealing parts of the advantages is to withstand pressure, in a sealed micro insufficient, can adjust the height of the bolt to seal, hydraulic cylinder used a main sealing parts.

  contact us
•

  5000 Ton Cylinder Of Vulcanized Machine

  PV plate, conveyor belt production line.
  Rubber type flame retardant conveyor belt production process and equipment and ordinary fabric conveyor belt and wire rope conveyor belt production process and equipment similar, production line can be made from ordinary fabric conveyor belt and rubber type of difficult to burn conveyor belt, also can produce wire rope conveyor belt.
  The hydraulic cylinder piston diameter: diameter 600, travel L450mm, the use of pressure: 20Mpa, each press 10 hydraulic cylinder.

  contact us
•

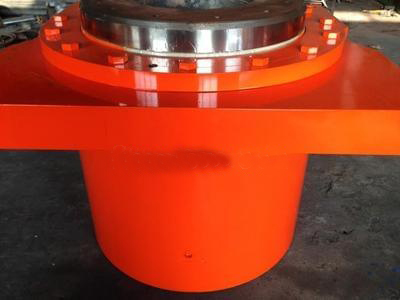

  Master Cylinder With 600 Tons Of Tile Machine

  Special hydraulic cylinder molded tile, a bit: long service life, fast molding, easy disassembly maintenance and repair.
  Plunger diameter: diameter 630, stroke: L250mm, pressure: 23Mpa, maximum thrust: 6200KN.

  contact us
•

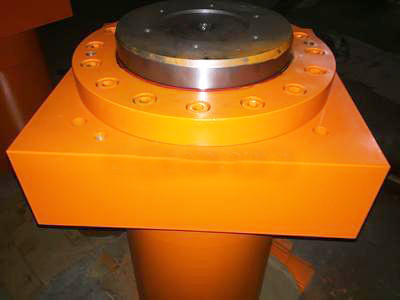

  Special Master Cylinder For Curing Machine

  This product is used in the tire curing machine, 300 tons and 600 tons, the product is a special custom products, the use of seals are Taiwan import, can be long-term high temperature, no leakage, due to the reasonable design, seal replacement can easily get 1 hours, reduce the cost of maintenance and maintenance, we can also according to your needs to provide you with professional design and reference, you can produce the best products at least.
  The hydraulic cylinder piston: Phi 450, Phi 650, pressure test: 30.5Mpa, using pressure: 19Mpa, effective stroke: between 450 and 900 mm, the maximum thrust for 450KN 650KN.

  contact us
•

  Test Pressure Of The Main Cylinder For 700 Tons

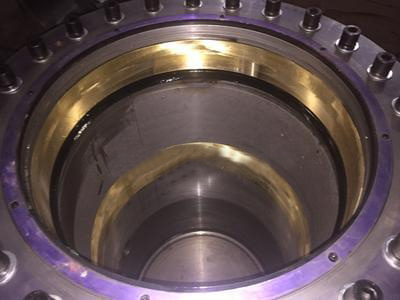

  700 tons of hydraulic cylinder block, internal 3 guide (two copper guide ring a cast iron guide), the maximum bearing pressure 30Mpa.
  Applicable to this kind of rubber curing machine, hydraulic pressure machine, electric circuit board press and all kinds of professional pressure equipment, pressure big, strong, long life.

  contact us
•

  1000 Ton Cylinder Plunger

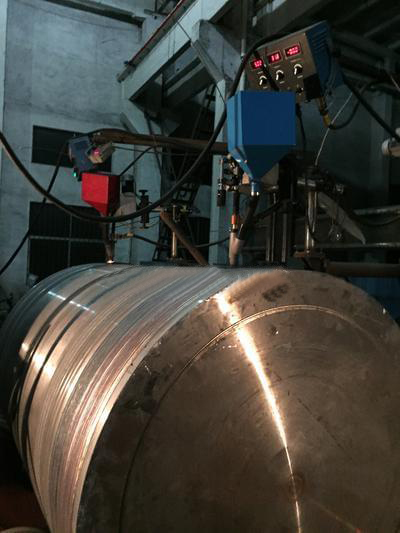

  Large tire vulcanizing machine special stainless steel plunger and surfacing plunger, the surface hardness of HRC is more than or equal to 50 to 55, plunger diameter can be customized according to customer demand, the diameter 800~2000mm, length 500mm~10000mm.
  This product is also applicable to other pressure equipment of hydraulic cylinder, plunger surface high hardness, hardness layer depth can be customized according to the needs, generally 5 ~ 6mm and ordinary chilled cast iron piston compared, long service life, surface will not rust and other advantages, scrap, life-long repair.

  contact us
•

  3000 Tons Of Stainless Steel

  Large tire vulcanizing machine special stainless steel plunger and surfacing plunger, the surface hardness of HRC is more than or equal to 50 to 55, plunger diameter can be customized according to customer demand, the diameter 800~2000mm, length 500mm~10000mm.
  This product is also applicable to other pressure equipment of hydraulic cylinder, plunger surface high hardness, hardness layer depth can be customized according to the needs, generally 5 ~ 6mm and ordinary chilled cast iron piston compared, long service life, surface will not rust and other advantages, scrap, life-long repair.

  contact us
