  Plastic spraying line

  Plastic coating is divided into two categories: "baking paint" and "UV vacuum coating": conventional production lines are divided into "heat curing baking paint line" and "vacuum coating UV line"

  Plastic thermosetting paint baking line:

  Car door handles, plastic bottles, phone cases, etc

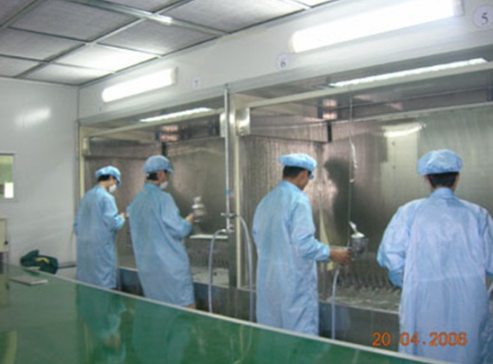

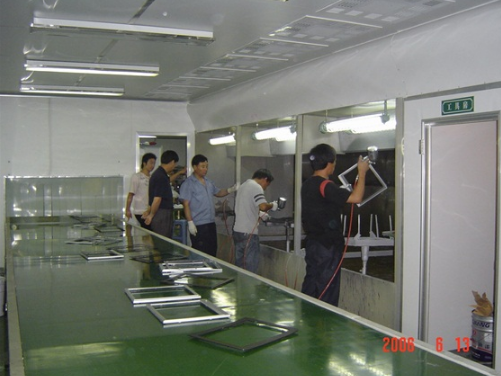

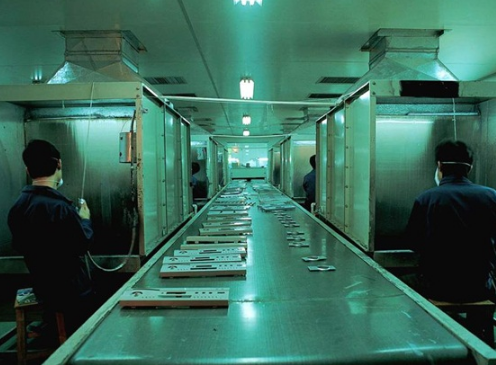

  Spraying method: mechanical spraying, fixed grab spraying, manual spraying

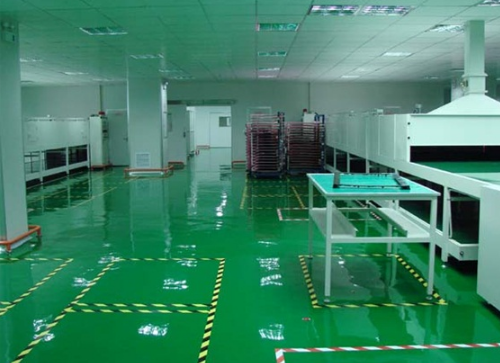

  Baking method, tunnel is the oven, tunnel is the circuitous oven, IR infrared

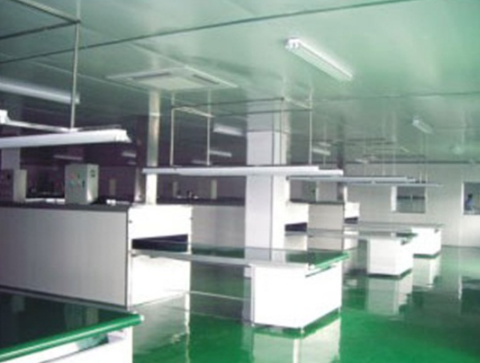

  Painting environment: 100000 level painting room;

  Output: depends on the fixture method of the workpiece and the baking time of the coating combined with the linear speed

  Process flow: Commonly used are two coats, two grills, three coats, three grills, and four coats, four grills; The commonly used equipment is divided into online and rotary baking

  Online

  Feeding - preheating - flame dust removal - automatic electrostatic brush dust removal - automatic spraying - (bottom coating) - preheating - (middle coating) standing - thermal curing baking - cutting

  Transfer line baking:

  Online

  Feeding - preheating - flame dust removal - automatic electrostatic brush dust removal - (bottom coating) - preheating - (middle coating) preheating - surface coating - standing - manual wire transfer - high-temperature baking line - cutting

  Vacuum coating UV line

  Applicable accessories: electric shavers, car taillights, phone covers, caps, bottles and other accessories

  Spraying method: spraying robot, fixed grab

  Baking method: IR infrared, tunnel is a circuitous oven

  Painting environment: painting room level 100000, painting room level 10000

  Production:

  It depends on the fixture method of the workpiece and the baking time of the coating combined with the line speed

  Process flow: commonly used single UV and double UV

  Single UV:

  Online

  Feeding - preheating - flame dust removal - automatic electrostatic dust removal - automatic spraying - (treatment agent) - preheating - (primer) - standing - IR - UV curing - cutting - vacuum coating - secondary feeding - electrostatic dust removal - topcoat - standing - IR - UV curing - cutting

  Dual UV:

  Online

  Feeding - preheating - flame dust removal - automatic electrostatic dust removal - automatic spraying - (treatment agent) - preheating - (primer) - standing - IR - UV curing - cutting - vacuum coating - secondary feeding - preheating - electrostatic dust removal - spraying topcoat - standing - IR - UV curing - cutting
