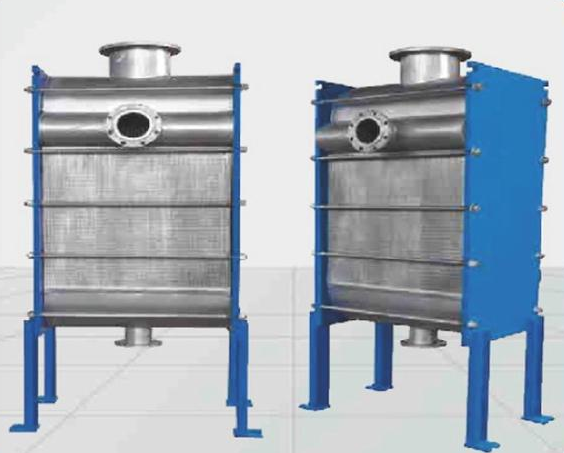

Fully Welded Plate Heat Exchanger

All welded plate heat exchanger is a completely new concept of welded plate heat exchanger. Its appearance is similar to a dry detachable heat exchanger, which not only promotes the efficient heat transfer and compact structure of ordinary plate heat exchangers, but also has the characteristics of shell and tube type resistance to medium to high pressure and medium to high temperature.

Due to the full countercurrent flow of fluid inside the heat exchanger, it can achieve the end temperature difference that other types of fully welded heat exchangers cannot achieve. The plate type cover plate can be opened for mechanical cleaning by convection. This type of heat exchanger generates higher shear stress in the flow channel than other types of welded heat exchangers. Therefore, it is not easy to scale. Meanwhile, its uniqueness

The flow channel design can also be used as an efficient condenser.

Product Advantages

1. The periphery of the plate adopts laser automatic welding, without rubber sealing gasket, and is resistant to high temperature and pressure.

2. High heat transfer efficiency, with almost all plate surfaces participating in heat transfer.

3. It occupies a small area and is equivalent to a detachable plate heat exchanger.

4. The diameter of the inlet and outlet pipes is non-standard design, with strong adaptability.

5. The gasket between the plates is not sealed, which is suitable for various types, usage, and maintenance costs.

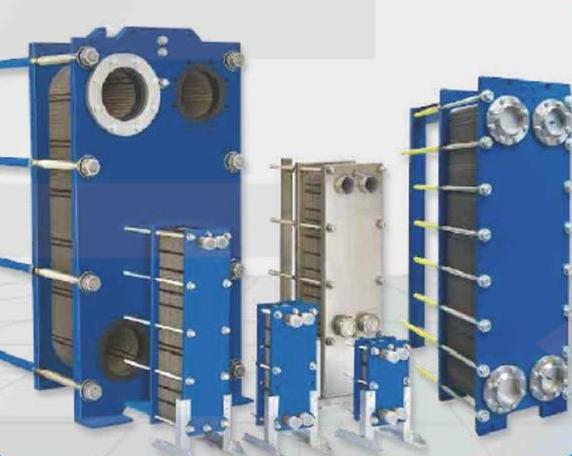

Semi Welded Plate Heat Exchanger

If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely

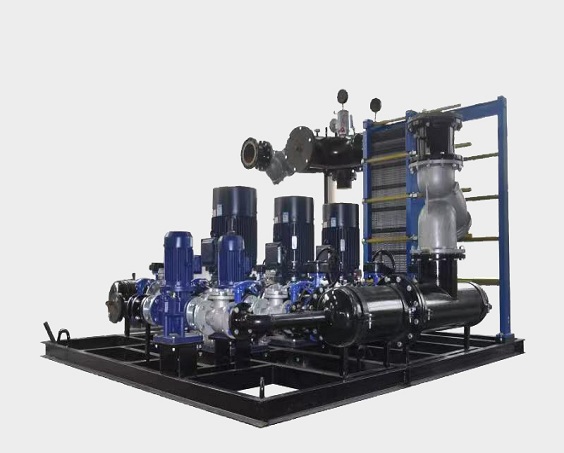

Plate Heat Exchange Unit

The heat exchange unit integrates a heat exchanger, circulating pump, makeup pump, instrument, and transmission

Electromechanical equipment consisting of sensors, electrical controls, and valve pipelines, and

Scientific calculation and optimization design, excellent hardware configuration, reasonable structural layout, and control

The system is advanced, easy to operate, economical in operation, and can meet different needs

The integrated heat exchange comprehensive solution proposed by users has been widely applied to regional supply

Heat and refrigeration system, domestic hot water system, waste heat recovery 1 seawater desalination, process cooling

But in many fields such as systems. Adhere to strict adherence during product development and design stages

Using high-quality raw materials to manufacture high-quality products.

From core components to every accessory, well-known domestic and foreign brand products are selected,

To ensure the excellent quality and performance of the entire product.

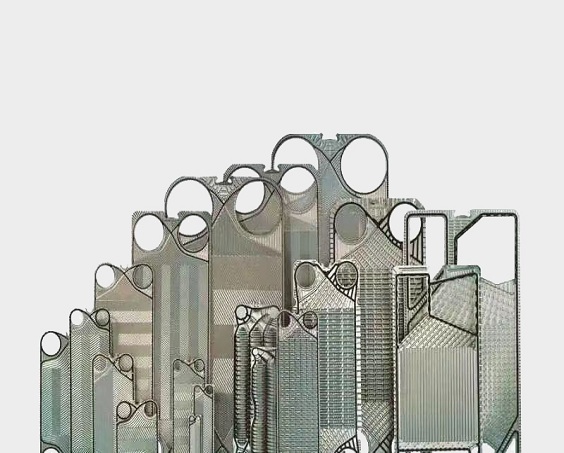

Heat Exchanger Plate

If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely

Heat Exchanger Shim

The design of corrugated plates provides a large and compact overall surface

Optimize heat transfer by integrating, and by using this surface area, heat can be transferred from a liquid

The transfer of a body or gas to another liquid or gas.

The heat transfer area of the plate is compressed into a zigzag ripple. When two boards

When overlapping in a relative herringbone shape, spiral flow and high turbulence can

Achieve high transfer coefficient and effective self-cleaning.

The diversion domain of the plate ensures uniform flow of fluid throughout the entire plate

Move to maximize heat transfer capability. Optimized traffic allocation

It can also reduce scale and uneven temperature distribution, thus improving the performance level

Maintain a high level during operation while reducing unnecessary energy loss

Loss, maintenance costs, or unplanned downtime.

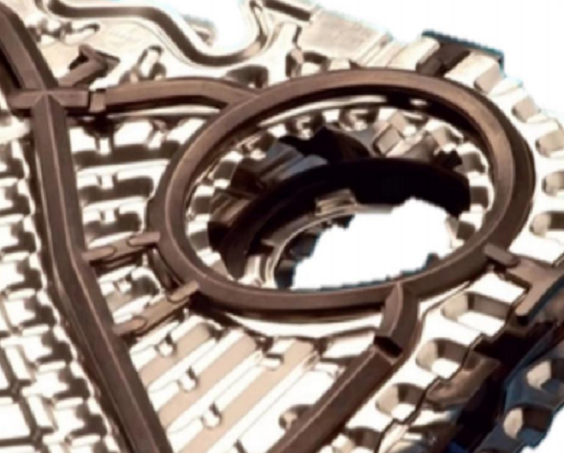

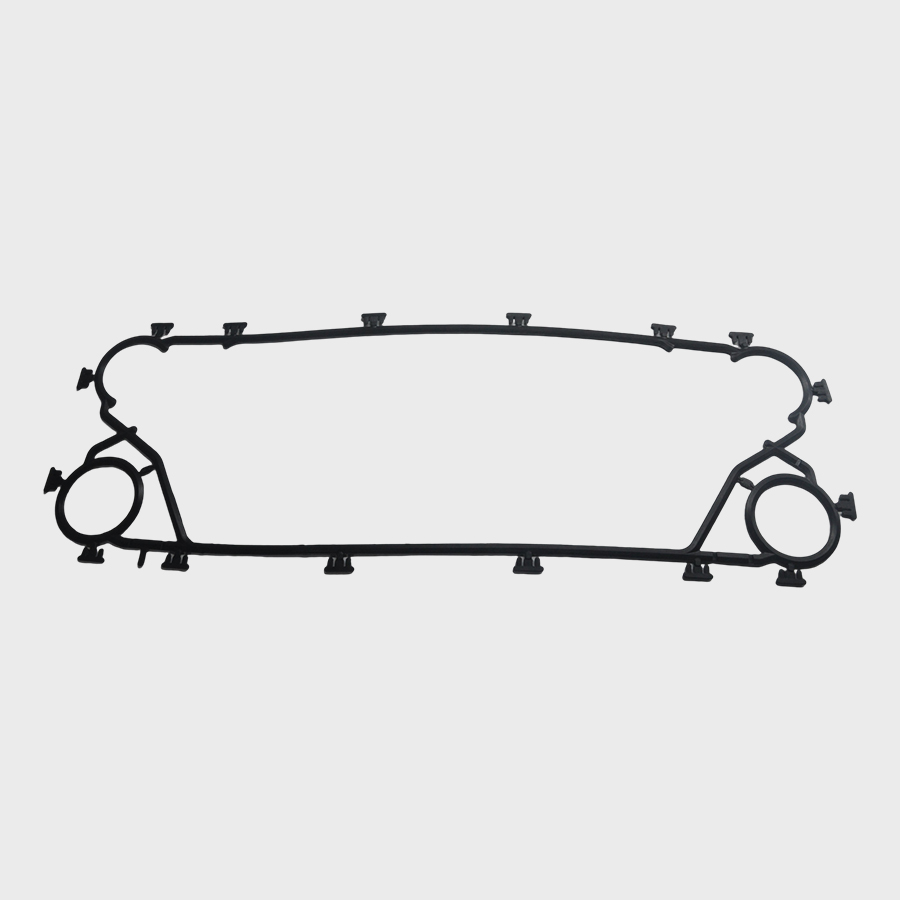

Gaskets are a key component of the performance of heat exchangers.

We will integrate the design of gaskets and plates to ensure optimization

Sealing of. Each is customized according to the heat exchange conditions. Correct contour

The combination of width, thickness, and different polymers to avoid premature leakage

There are significant differences in the risk of damage to gaskets or plates. just

Accurate matching extends gasket life, reduces downtime, and reduces

Reduced maintenance costs.

Vertical Spiral Plate Heat Exchanger

Vertical spiral plate heat exchanger

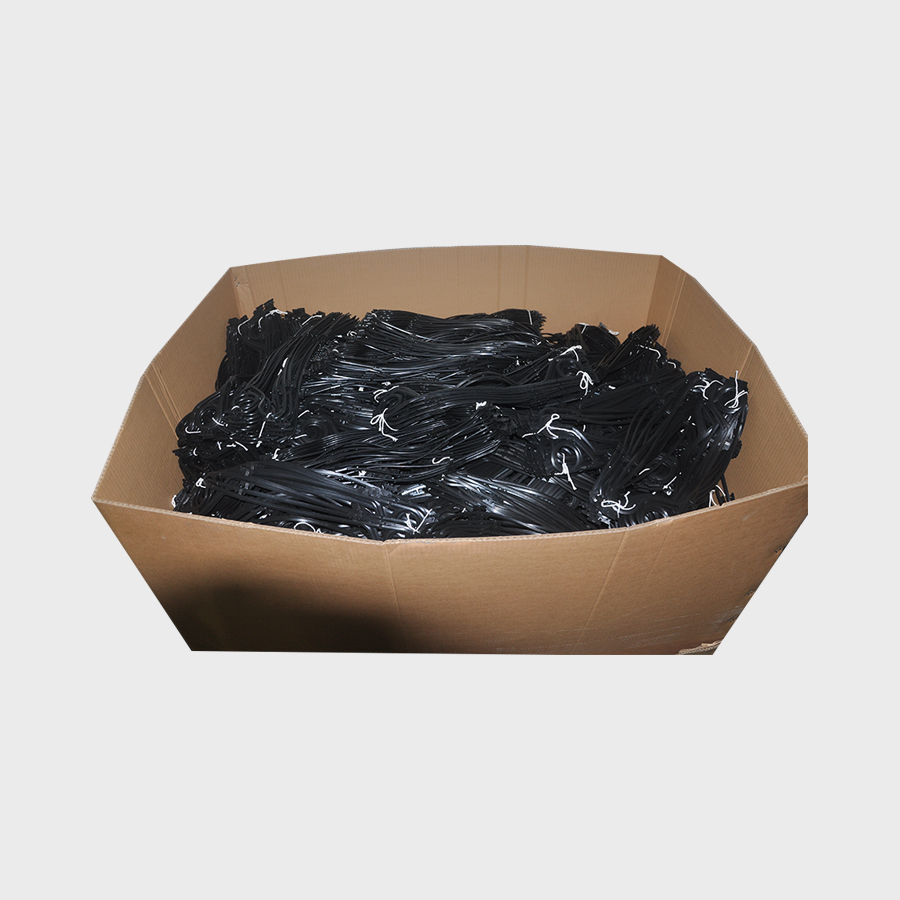

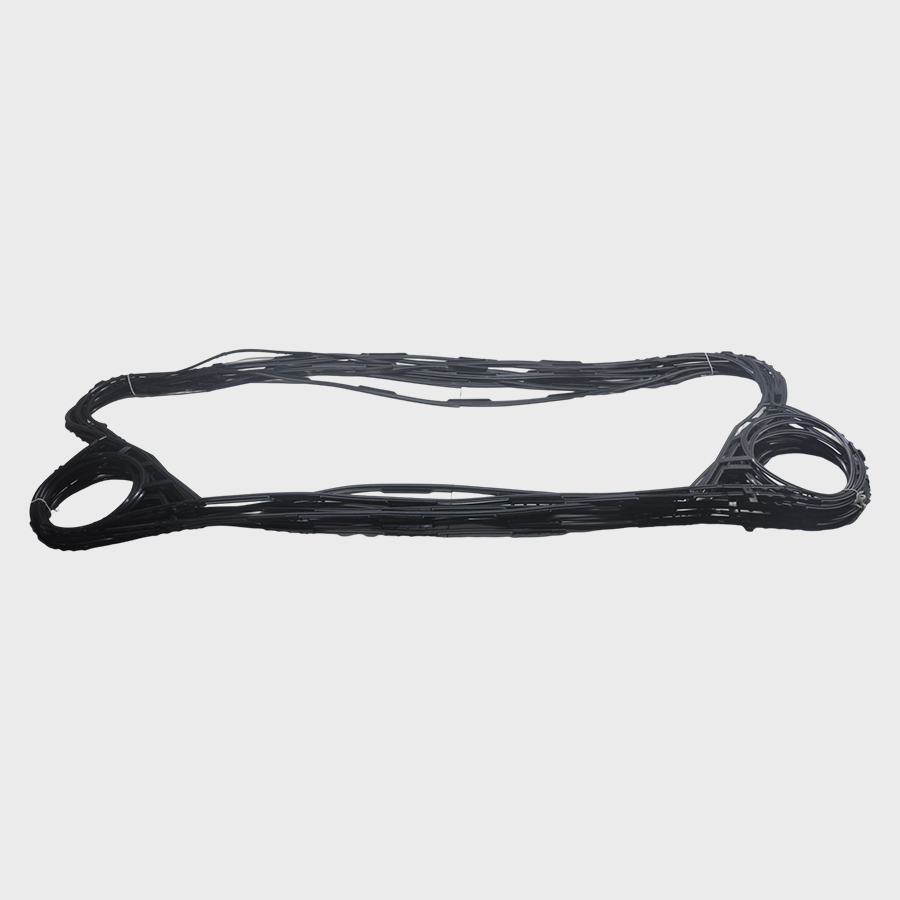

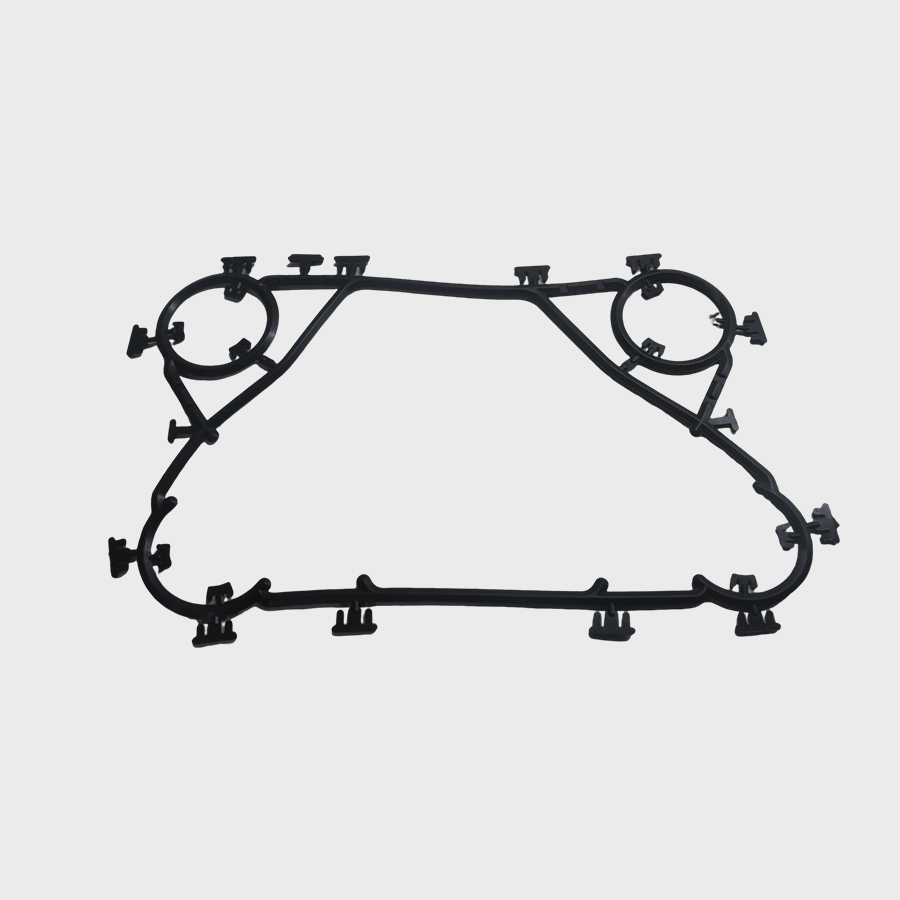

Heat Exchanger Gasket

Heat Exchanger Gasket

Heat Exchanger Gasket

Heat Exchanger Gasket
