Water Cutting Head

•

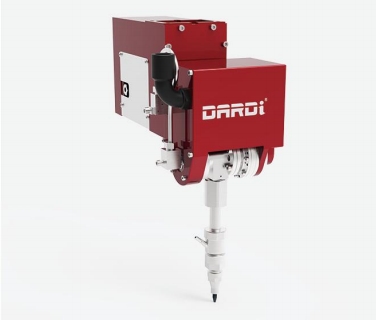

  AC90 5-axis cutting head (with sand)

  Product characteristics

  ·0-90° chamfer or swing Angle machining, can be cut

  Space for stereoscopic workpieces (90° when cutting, required

  Specially installed protective devices);

  · Larger than AC60 and AB50

  The Angle of the yaw;

  · Suitable for cutting head, round pipe, metal and

  Three-dimensional processing of composite materials;

  · Equipped with RTCP function, requires 3D software support.



  Main parameter

  · A-axis stroke :±90°

  · C-axis stroke :±360°

  ·A, C axis positioning accuracy :≤30"

  · Repeated positioning accuracy of axis A and C :≤20"

  · Maximum operating speed :360°/s

  · Software RTCP

  contact us
•

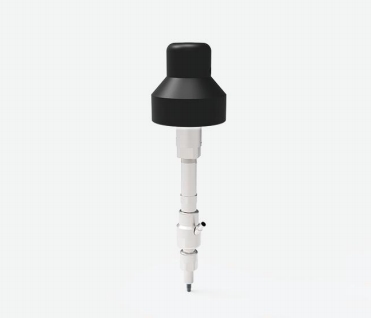

  Pure water cutting head

  Product characteristics

  · Ordinary vertical cutting;

  · Suitable for soft material cutting, such as:

  Paper, cloth, foam, sponge, rubber, plastic

  Materials, leather, etc.;

  · Simple structure, easy maintenance, easy to use

  This low characteristic.

  Main parameter

  · With a variety of aperture gems, water line thickness about

  0.13 ~ 0.5 mm;

  contact us
•

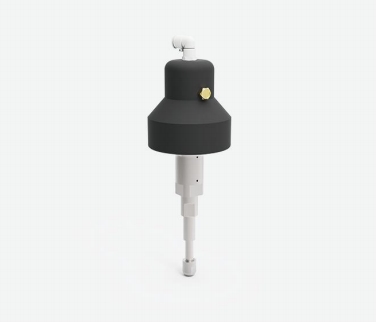

  Three-axis cutting head

  Product characteristics

  · Ordinary vertical cutting;

  · Suitable for cutting all kinds of hard materials, for example

  Such as: metal, glass, stone, carbon fiber

  Etc.;

  · Has the characteristics of simple structure and easy maintenance.



  Main parameter

  · Equipped with 7mm outer diameter sand pipe;

  · Equipped with various aperture gems and sand pipes, thick water line

  It is about 0.56~1.5mm thin

  contact us
•

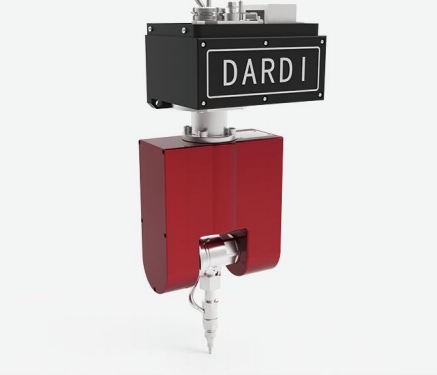

  AB10 Five axis cutting head (sand)

  Product characteristics

  ·0°~10° deflection Angle cutting;

  · Vertical cutting can be achieved with deflection compensation function

  Cut or small Angle cutting, suitable for all kinds of high precision

  Degree cutting situations, such as medical orthopedic implants

  Material, etc.;

  · Reverse can be achieved with the verticality compensation function

  Groove cutting, suitable for ceramic, stone parquet

  Etc.;

  · With RTCP function, no 3D software required.



  Main parameter

  · A-axis travel :±10°

  ·B axis travel :±10°

  ·A, B axis positioning accuracy :≤30"

  · Repeated positioning accuracy of axis A and B :≤20"

  · Maximum operating speed :360°/s

  · Software RTCP

  contact us
•

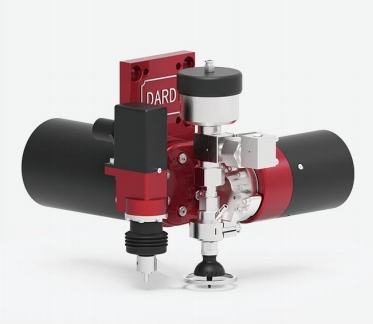

  AB50 5-axis cutting head (with sand)

  Product characteristics

  ·0-50° deflection Angle processing, can achieve vertical and

  Bevel cutting;

  · The change of cutting Angle can achieve continuous smoothing

  Crossing, has a better section and work efficiency

  Rate, suitable for complex section requirements

  Shape parts processing;

  · Strong versatility, can replace AC60,

  AB10 five-axis head;

  · Equipped with RTCP function, requires 3D software support.



  Main parameter

  · A-axis stroke :±50°

  ·B axis stroke :±50°

  ·A, B axis positioning accuracy :≤30"

  · Repeated positioning accuracy of axis A and B :≤20"

  · Maximum operating speed :360°/s

  · Software RTCP

  contact us
