Wood spraying production line
Furniture and woodwork electric automatic painting line
Suitable accessories: spray painting of irregular objects such as tables, stools, bicycles, and categories
Spraying method: spraying robot, fixed spraying (can stop spraying and track spraying), reciprocating spraying machine
Baking method: tunnel winding type, using biological particle combustion machine
Painting environment: enclosed, without any special features
Output: depends on the fixture method of the workpiece, the baking time of the machine coating, and the line speed
process flow
Pre processing of the upper part (degreasing I, degreasing II, water washing I, water washing II, surface adjustment, phosphating water washing III, water washing IV, pure water washing, fresh pure water spraying, water drying (100 ℃~120 ℃ * 10min) → coating (automatic spraying+manual repair) → UV curing (180 ℃~190 ℃ * 20-30 min) → cooling → lower part
Depending on the different workflow of the workpiece, it varies depending on the customer's needs

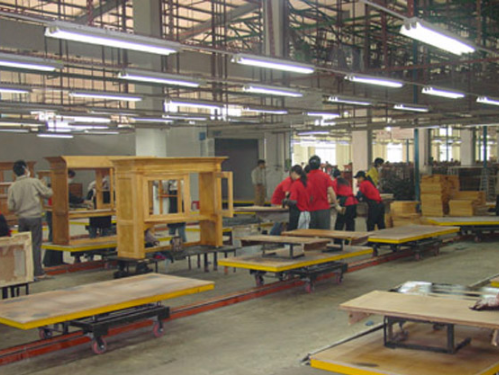

Furniture and woodwork electric automatic painting line (depending on actual requirements)
The spray type treatment method uses the spray principle to make the liquid medicine continuously act on the surface of the workpiece. It has strong work continuity and high efficiency, and is suitable for the requirements of large batch operations. The treatment effect is good. It is suitable for large pipe fittings, long pieces and items with simple structure. In general, it uses a high frame structure to save ground space.
The diving treatment method is a method of conveying the workpiece through a suspended chain to immerse it in a swimming pool and process it in a medicine pool. It is suitable for handling various complex shaped objects, with good results and saving medicine dosage
Immersion treatment method is to use a crane to lift and immerse the workpiece in a liquid medicine pool, and complete the surface treatment of the workpiece through physical and chemical methods. Suitable for degreasing powder coating equipment for workpieces with complex surfaces and severe rust

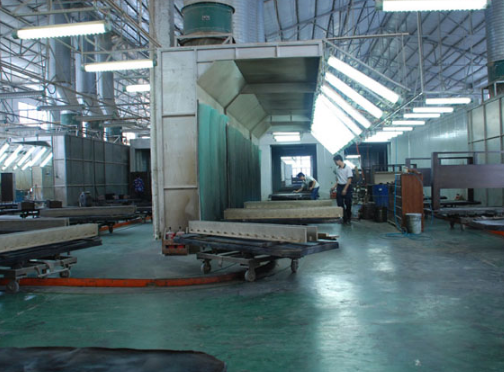

Spraying equipment
Design and customize suitable coating equipment according to the size of the workpiece
Drying and curing equipment
The drying path is self running, and the workpiece is on the conveyor line and enters the drying path. The drying path maintains a constant temperature, and the workpiece comes out of the drying path to complete solidification. After waiting for cooling, the workpiece can be unloaded. Using multiple fuels for heating, rock wool sandwich panels are used as drying boards, which have efficient insulation capacity and greatly save costs. Generally used for UV curing, far-infrared drying lines, curing furnaces, industrial ovens, etc
