Calcium Aluminate Fiber Products
-

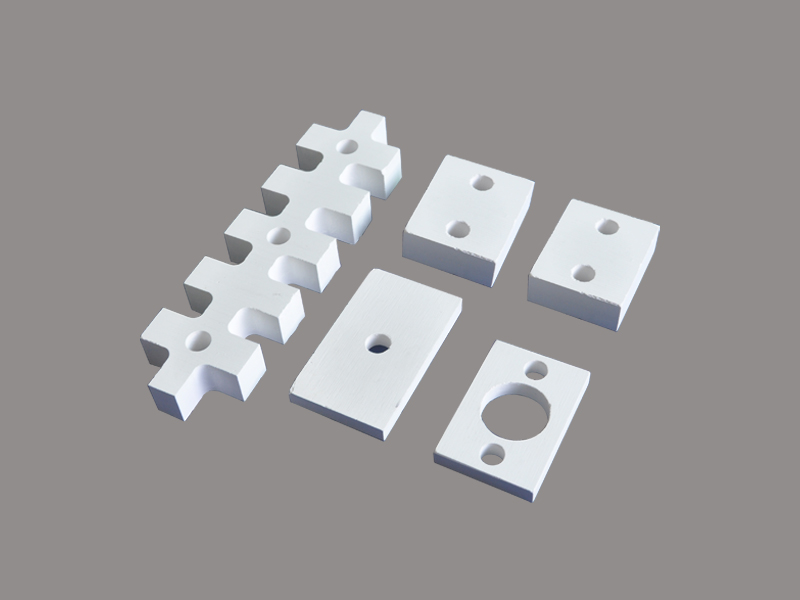

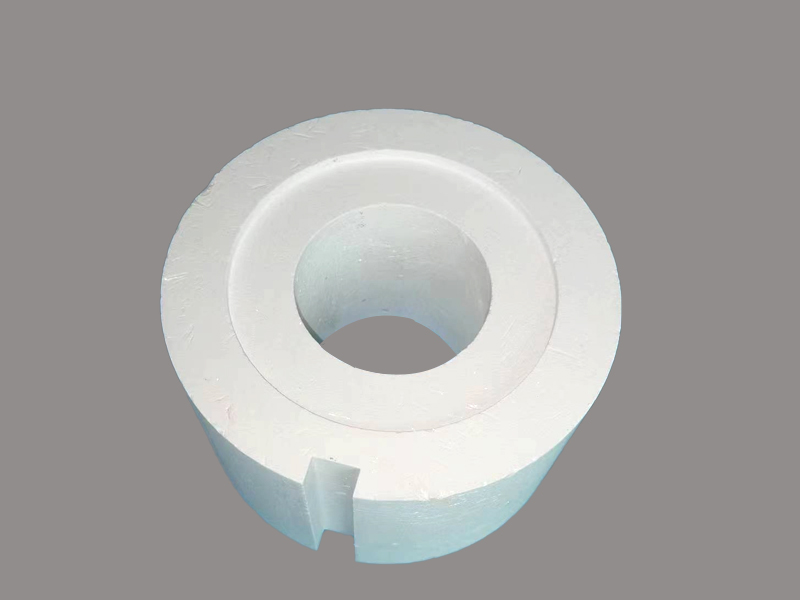

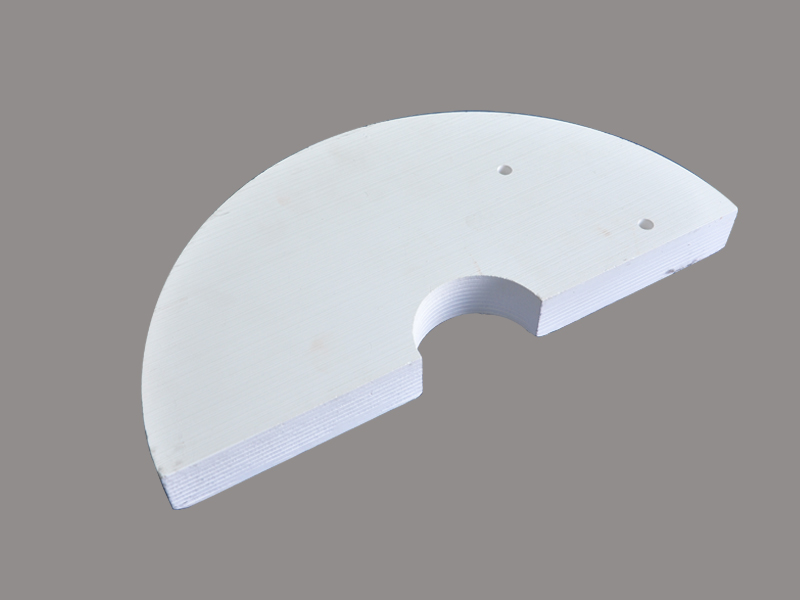

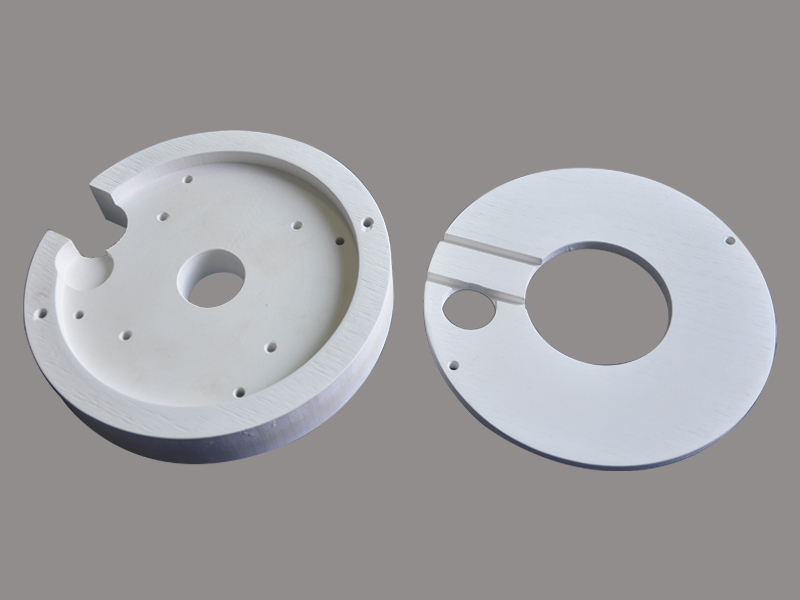

Calcium silicate board special-shaped parts
Product Technical DataSheet
Name & Code of Products: High-density calcium silicate board , code: K series board
Application scope: covering non-ferrous metals, petrochemicals, steel, glass, electronics, fire protection and many other industries. It has the advantages of high strength, excellent insulation, thermal shock resistance, thermal conductivity, and quality stability.
All panels are non-asbestos products.
ProjectKA - 700
Maximum heat resistance temperature ° c800-1000
Bulk densityKg / m³350-700±10%
Flexural strength MPa≥5.5MPa
Compressive strength MPa≥8.6-13 MPa
Thermal ConductivityW/m.k200 °
400 °≤0.110
500 °≤0.131
Thermal expansion coefficient %100 °0.02
200 °0.03
400 °0.15
600 °0.31
700 °
High temperature linear shrinkage % 7 50X3hLength / Width≤0.35
Thick≤ 2.14
UseDoor core board, pipe insulation, thermal insulation, thermal insulation, electrolytic cell insulation, local equipment insulation, low thermal conductivity, non-conductive, electrical insulation, high mechanical strength, waterproof, small creep, good dimensional stability.
Plate specifications (length * width * thickness) mm tolerance mm1200*1200*(25-110)mm ±2mm
The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications. -
Calcium silicate board special-shaped parts
Product Technical DataSheet
Name & Code of Products: High-density calcium silicate board , code: K series board
Application scope: covering non-ferrous metals, petrochemicals, steel, glass, electronics, fire protection and many other industries. It has the advantages of high strength, excellent insulation, thermal shock resistance, thermal conductivity, and quality stability.
All panels are non-asbestos products.
ProjectKF-850
Maximum heat resistance temperature ° c1000
Bulk densityKg / m³850±10%
Flexural strength MPa≥8.2MPa
Compressive strength MPa≥15 MPa
Thermal conductivity W/mk200 °≤0.12
400 °≤0.10
500 °≤0.14
Thermal expansion coefficient %100 °0.02
200 °0.02
400 °0.14
600 °0.30
700 °0.34
High temperature linear shrinkage % 7 50X3hLength / Width≤0.30
Thick≤ 2.20
UseThermal insulation, heat insulation, used for mechanical equipment frame components, used for heat insulation of parts with high temperature contact, equipment local heat preservation, heat insulation, non-conductive, electrical insulation
Plate specifications (length * width * thickness) mm tolerance mm1200*1200*(25-110)mm ±2mm
The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications. -
Calcium silicate board special-shaped parts
Product Technical DataSheet
Name & Code of Products: High-density calcium silicate board , code: K series board
Application scope: covering non-ferrous metals, petrochemicals, steel, glass, electronics, fire protection and many other industries. It has the advantages of high strength, excellent insulation, thermal shock resistance, thermal conductivity, and quality stability.
All panels are non-asbestos products.
ProjectKT-850
Maximum heat resistance temperature ° c1000
Bulk densityKg / m³850±10%
Flexural strength MPa≥7.9 MPa
Compressive strength MPa≥19 MPa
Thermal conductivity W/mk200 °≤0.11
400 °≤0.14
500 °≤0.16
Thermal expansion coefficient %100 °0.02
200 °0.02
400 °0.14
600 °0.31
700 °0.37
High temperature linear shrinkage % 750X3hLength / Width≤ 0.28
Thick≤ 2.03
UseAdapter plates, buffer plates, launder liners, floats, machined filter boxes, baffles Contact with non-ferrous metals, thermal insulation gaskets for electronic equipment, flange insulation, thermal insulation enclosures, components, base plate components, thermal press insulation .Low thermal conductivity, thermal shock resistance, and excellent machining performance.
Plate specifications (length * width * thickness) mm tolerance mm1200*1200*(25-110)mm±2mm
The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications. -
Calcium aluminate fiber products
Product Technical Data Sheet
Name & Code of Products: High-density calcium silicate board , code: K series boardScope of application: covering non-ferrous metals, petrochemicals, steel, glass, electronics, mechanical structural parts, electrical insulation parts with high temperature resistance, and many other industries, with high strength, excellent insulation, thermal shock resistance, thermal conductivity, and stable quality Sexual and other advantages.
All panels are non-asbestos products.
ProjectKAL-P ( calcium aluminate fiberboard )Maximum heat resistance temperature ° c1100-1550Bulk density Kg / m³1650-1800±10%Flexural strength MPa≥28.24 MPaCompressive strength MPa≥48.29 MPaThermal conductivity W/mk800 °≤0.3901000 °1200 °Thermal expansion coefficient %600 °800 °≤ 0.15671100 °1200 °1400 °High temperature linear shrinkage % 1500X30h Length / Width ≤2.2 1ThickUseResistance arc, induction furnace shell, electrical insulation and protection, high-strength and high-temperature insulation components for machine and instrument structures, high-speed rail electrical control room insulation, ship thermal insulation, with excellent high dielectric strength and arc resistance properties.Plate specifications (length * width * thickness) mm tolerance mm900*600*(20-90)mm ±2mm The data represents typical average results obtained by testing under ASTM or other acceptable procedures as required, and is subject to normal variations and should not beused for specifications.
