Drying Equipment

•

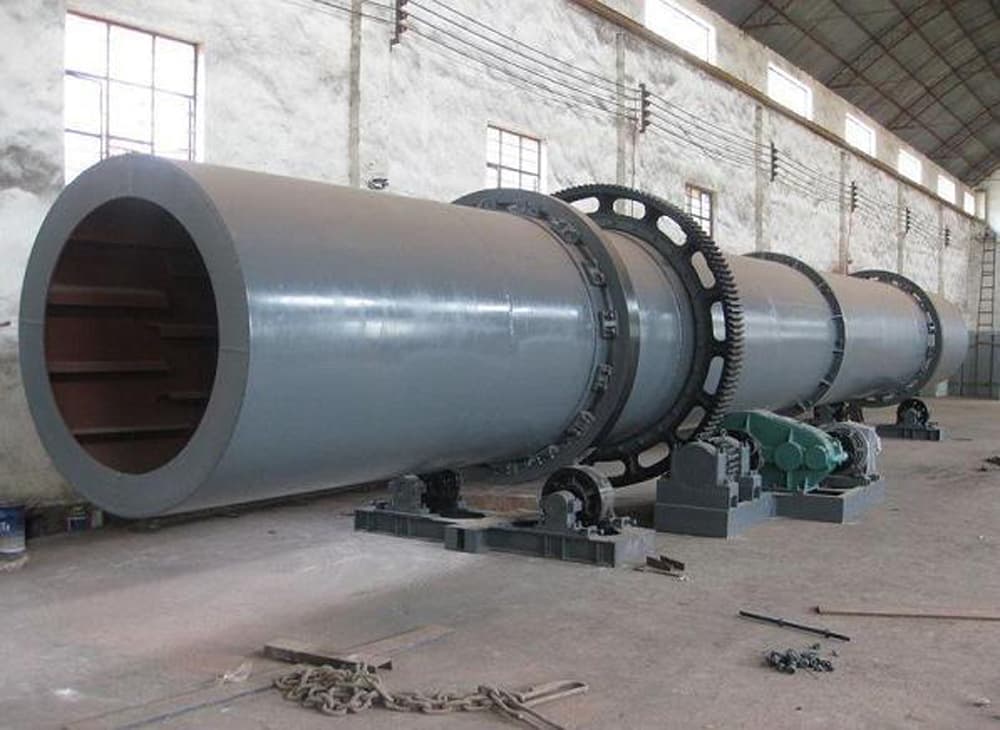

  HYG Series Rotary Drum Dryer

  Mainly used for pre-burning of hard magnet oxygen powder, and can also be used in cement, metallurgy, chemical industry and other industries.
  Continuous operation is possible with low function consumption.
  The equipment consists of the main kiln and its supporting transmission device, cooling pipe, fuel oil system, electrical control, secondary air intake device, exhaust dust removal device and preheating kiln body, etc.
  MOQ:1

  contact us
•

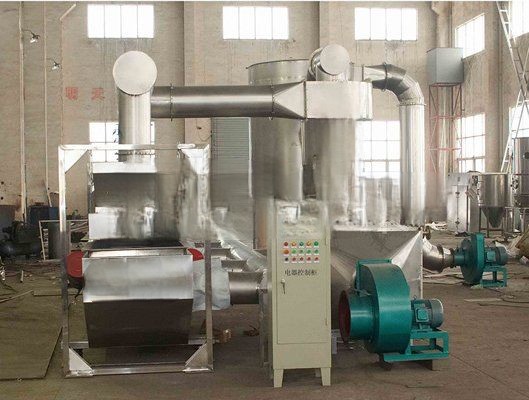

  GZQ series vibrating fluidized bed dryer

  Working principle
  The material enters the machine from the feed inlet. Under the action of vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed to exchange heat with the wet material, the wet air passes through the cyclone separator. After dust removal, it is discharged by the exhaust air at a ratio of 1:3, and the dry material is discharged from the discharge inlet.
  Performance characteristics
  ◎The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
  ◎Smooth fluidization, no dead space and blow-through phenomenon, can obtain uniform drying and cooling products.
  ◎Good adjustability and wide application range. The thickness of the material layer, the moving speed in the machine and the change of the full amplitude can be adjusted steplessly.
  ◎Little damage to the material surface. It can be used for drying fragile materials, and the working effect will not be affected even when the material particles are irregular.
  ◎The fully enclosed structure is adopted. Effectively prevent cross-infection between materials and air, and the working environment is clean.
  ◎High mechanical efficiency and thermal efficiency, good energy saving effect, 30-60% energy saving compared with ordinary drying devices.
  Applicable materials
  It is suitable for drying and cooling of powdery and granular materials in chemical, pharmaceutical, food, dehydrated vegetables, grain, minerals and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, shredded radish, soybean meal, distiller's grains, seeds, slag, sugar, etc.

  contact us
•

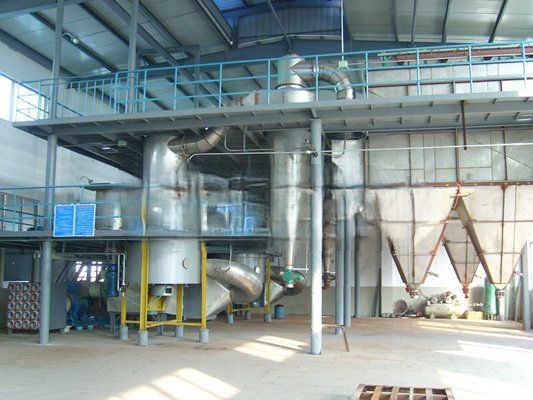

  XSG rotary flash dryer

  Working principle

  The hot air tangent enters the bottom of the dryer and forms a strong rotating wind field driven by the agitator. The paste material enters the dryer through the screw feeder. Under the strong action of the high-speed rotating agitator, the material is dispersed under the impact, friction and shear force. The block material is quickly crushed, fully contacted with the hot air, heated and dried. The dehydrated dry material rises with the hot air flow, the grading ring intercepts the large particles, and the small particles are discharged from the center of the ring outside the dryer, and recycled by the cyclone separator and dust collector. The dry or large materials are thrown to the wall by centrifugal force, and then fall back to the bottom for crushing and drying.

  Performance characteristics

  ◎ The organic combination of swirl, fluidization, spouting and crushing classification technology.

  ◎ Compact equipment, small size, high production efficiency, continuous production, realizing "small equipment, large production".

  ◎ High drying intensity, low energy consumption and high thermal efficiency.

  ◎ The material has a short retention time and good quality, which can be used for drying heat-sensitive materials.

  ◎ Negative pressure or micro negative pressure operation, good airtightness, high efficiency, and elimination of environmental pollution.

  Applicable materials

  Organic substances: atrazine (pesticide insecticide), lauric acid, benzoic acid, benzoic acid, fungicide

  Sodium oxalate, cellulose acetate, organic pigments, etc.

  Dyes: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various dyes

  Intermediate of nitrogen dyes.

  Inorganic substances: borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide

  Various metal hydroxides, various heavy metal salts, synthetic cryolite, etc.

  Food: soybean protein, gelatinous starch, wine tank, wheat sugar, wheat starch, etc.

  contact us
•

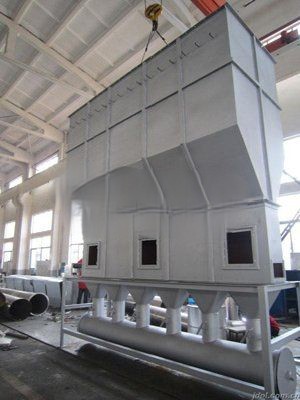

  XF series horizontal boiling dryer

  Product Introduction
  Boiling drying, also known as fluidized bed, is composed of air filter, heater, fluidized bed host, cyclone separator, bag filter, high-pressure centrifugal fan, and operating table . Due to the different properties of drying materials, matching For dust removal equipment, you can consider it according to your needs. You can choose cyclone separator and bag filter at the same time, or you can choose one of them. The small granular and powdery materials need to be equipped with a bag filter, and a pneumatic feeding device and a belt conveyor are available for selection.
  The granular solid material is fed into the fluidized bed dryer by the feeder, and the filtered clean air is heated and sent to the bottom of the fluidized bed by the blower to contact with the solid material through the distribution plate, forming a fluidized state to achieve gas-solid heat and mass exchange. After the material is dried, it is discharged from the discharge port, and the exhaust gas is discharged from the top of the fluidized bed, and the solid powder is recovered by the cyclone dust collector group and the bag filter, and then emptied.
  Steam, electricity, and hot blast stoves can all be used (according to user requirements).
  Working Principle
  The clean hot air is distributed into the bed through the valve plate, and the wet material entering from the feeder is boiled by the hot air. Due to the extensive contact between the hot air and the material, the process of heat and mass transfer is enhanced, so it can be dried in a short time. If the continuous type is used, the material enters from one end of the bed, and after tens of seconds to several minutes of boiling and drying, it automatically flows out from the other end of the bed. This equipment is generally operated under negative pressure.
  Applicable to materials
  ◎Drying operations of pharmaceuticals, chemical raw materials, food, grain processing, and feed. Such as: drying and dehumidification of raw materials, tablet granules, traditional Chinese medicine granules, health food, beverage granules, corn germ, feed, plastic resin, citric acid and other powdery materials. The particle size of applicable materials is generally 0.1-6mm, and the recommended particle size is 0.5-3mm.
  Installation instructions
  ◎All equipment should be placed flat, fixed with foot screws, and all parts should be well sealed.
  ◎The fan can be placed outdoors or in a self-built anechoic room. The floor plan can be adjusted as appropriate according to the specific situation.
