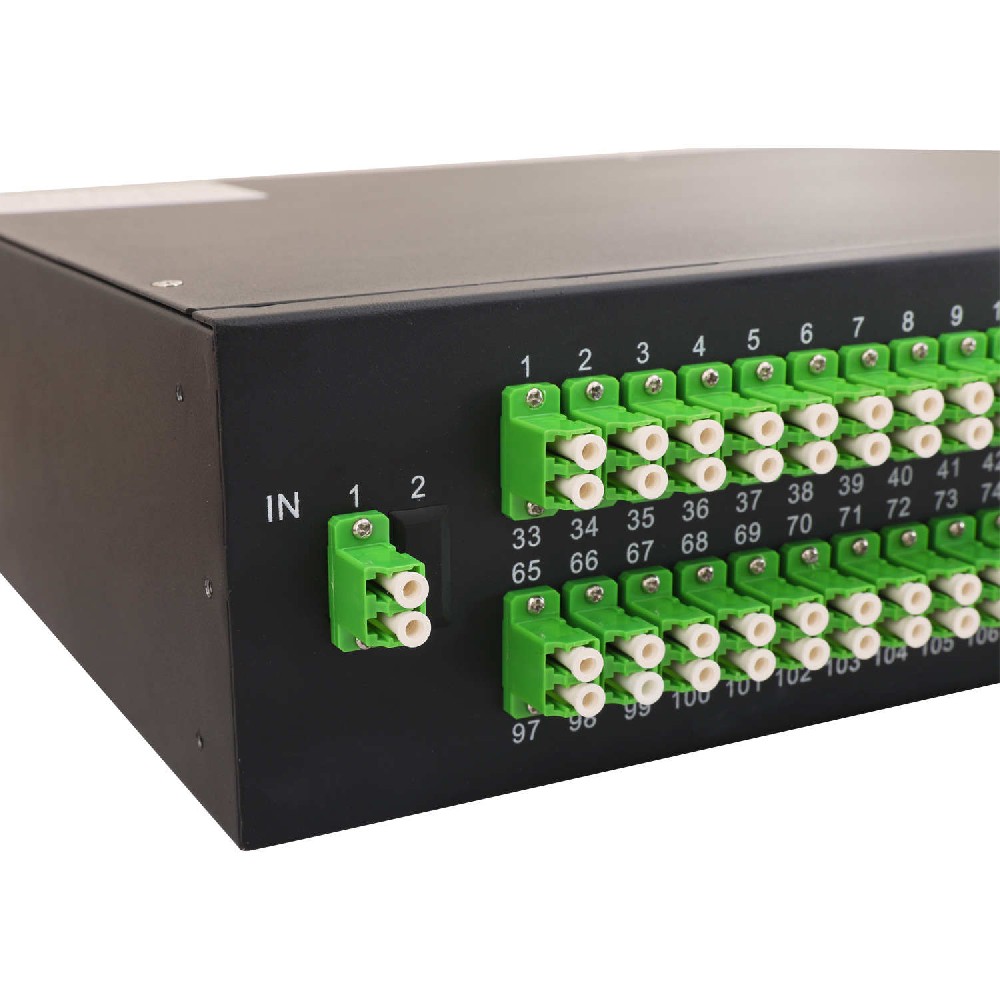

Rack Type Splitter

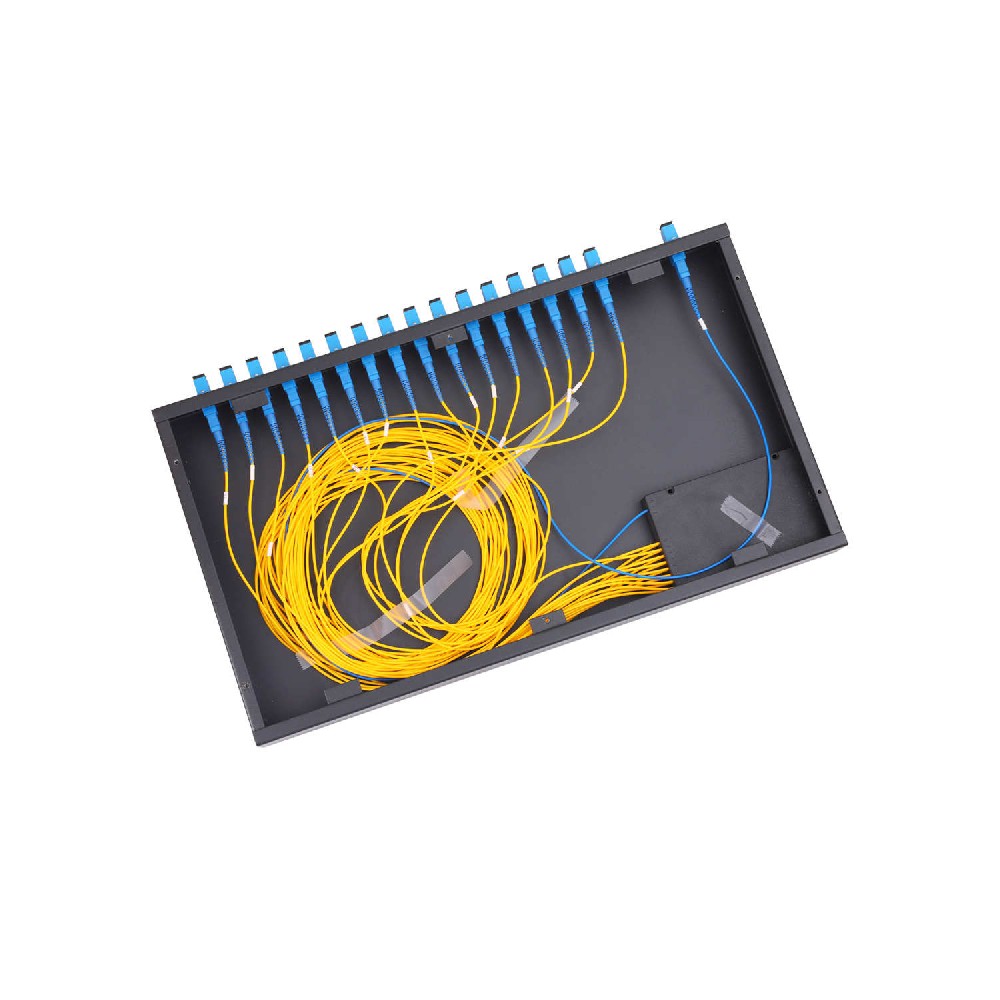

Rack type splitter

Rack Type Splitter

Rack type splitter

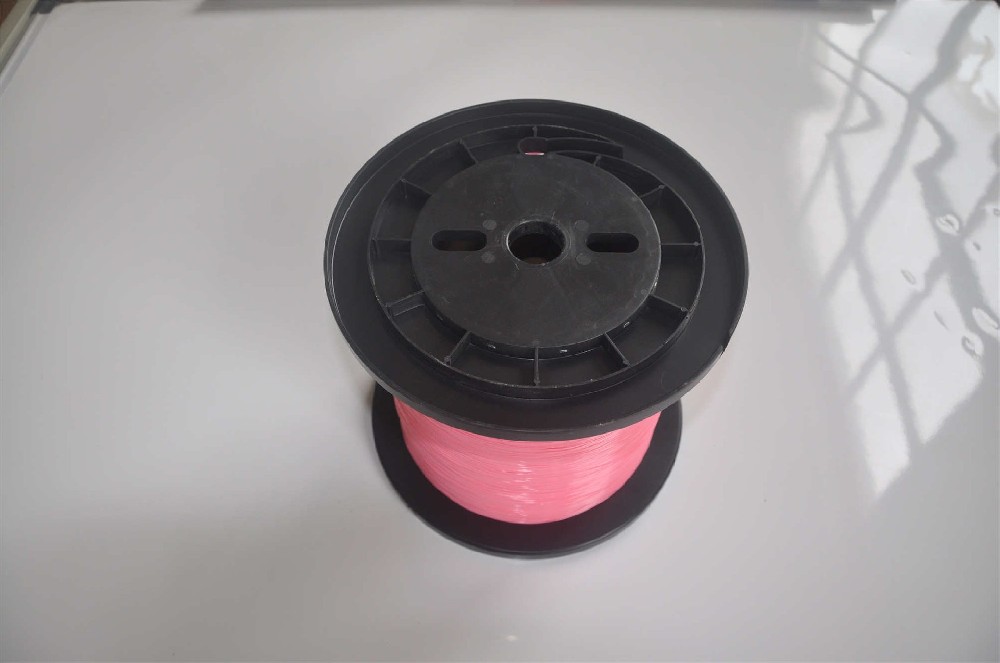

Fiber Optic Cable

Widely used in the large-scale application of plc integrated optical technology.
ISO9001 standard.
Various colors optional.
OEM & ODM support.

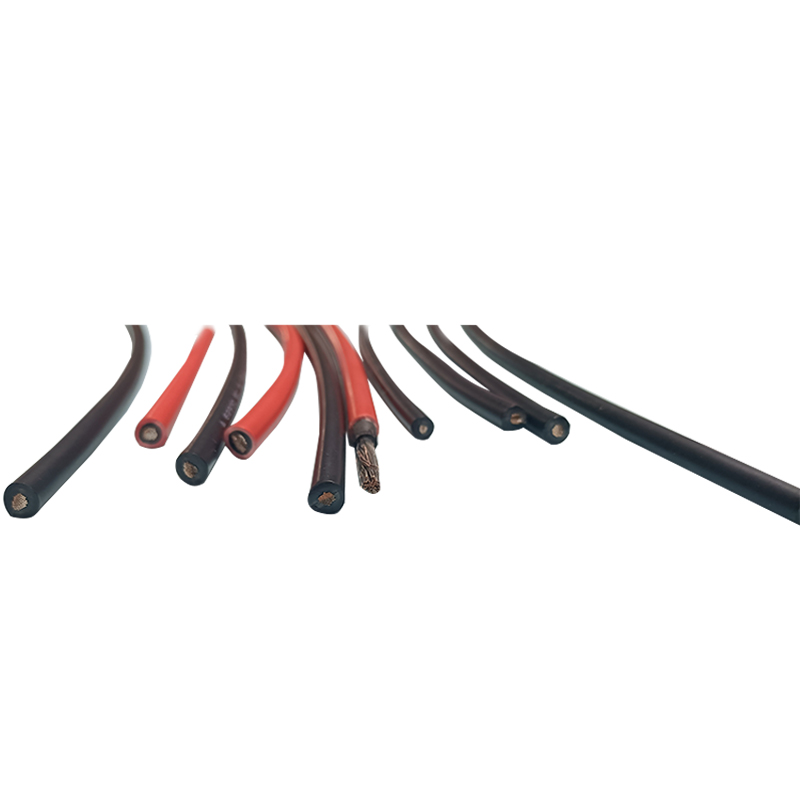

UL4703 PV Wire

Name： UL4703 PV Wire 600V

Certification:

UL Approval UL4703 600V

18AWG～2AWG

Technical data:

Rated voltage(U): 600VAC

Test voltage(U0): U=600V

18~10AWG,U0=3000V,50HZ,1Min

8~2AWG,U0=3500V,50HZ,1Min

Maximum temperature for conductor : +120°C

Ambient temperature: –40°C up to +90°C



Name： UL4703 PV Wire 1000 OR 2000V


Technical data

Nominal voltage(U): 1000 OR 2000VAC

Test voltage(U0):

U=1000V,2000V

18~10AWG,U0=6000V,50HZ,1Min

8~2AWG,U0=7.5KV,50HZ,1Min

1/0~4/0AWG,UO=9.0KV,50HZ,1Min

Conductor maximum temperature: +120°C

ESP10V2V2-K ESP15V2V2-K Connecting cable for TUV & CGC energy storage system

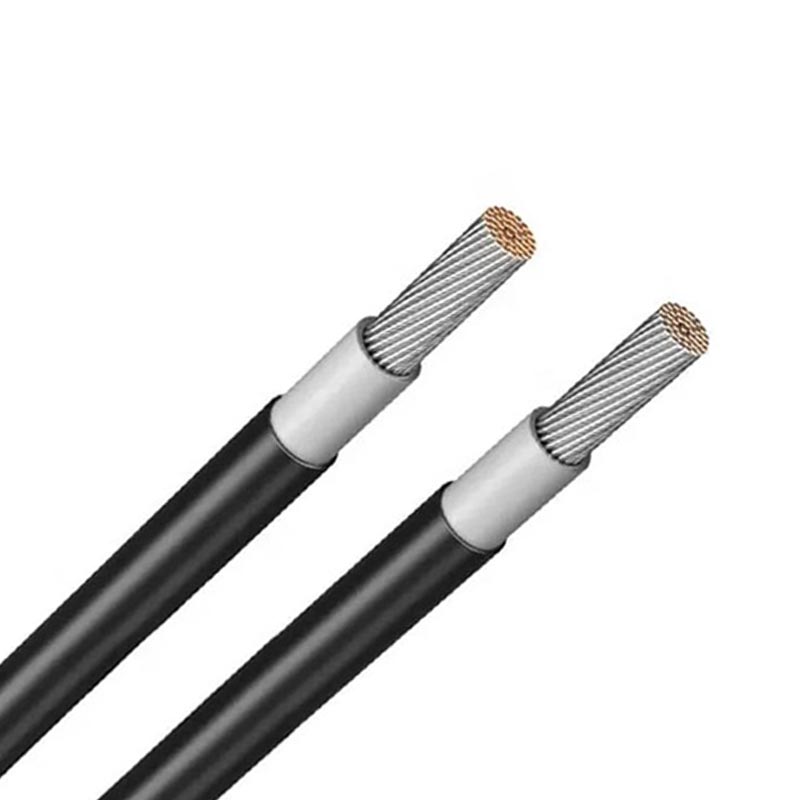

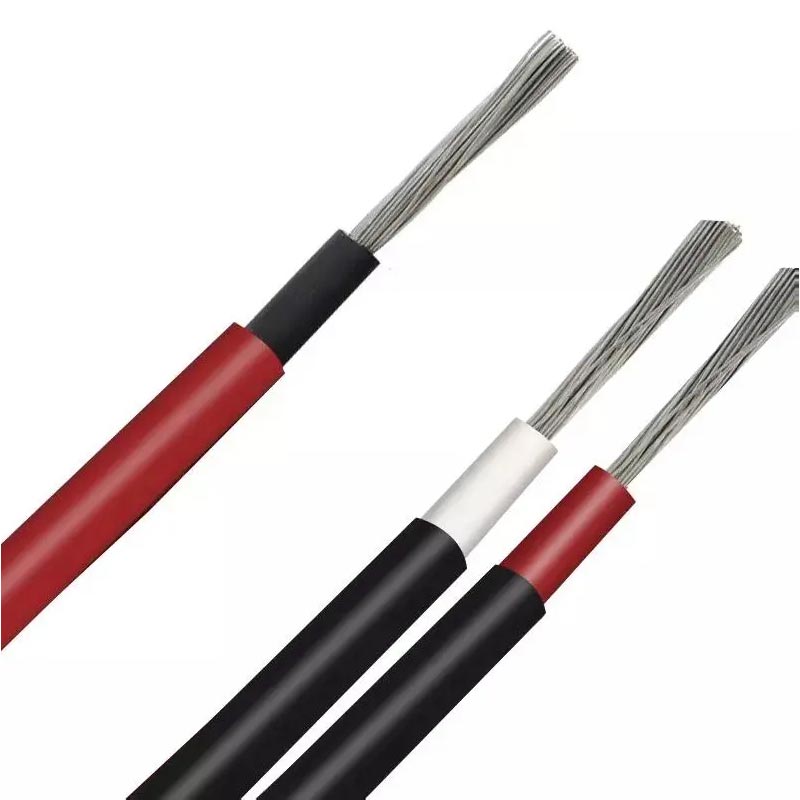

Solar Cable or PV Cable

Technical data

Nominal voltage: U0/U=1000/1000VAC

Voltage test on completed cable:6.5KV AC,1.5KV DC,5min.

Ambient temperature:-40℃ up to + 90℃

Max. Temperature at conductor:+120℃

The life time is 25years(Ambient temperature:–40°C to 90°C)

The permitted short-circuit-temperature is 200°C , 5S

Bending radius : ≥4×φ（D＜8mm), ≥6×φ（D≥8mm )

If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely
