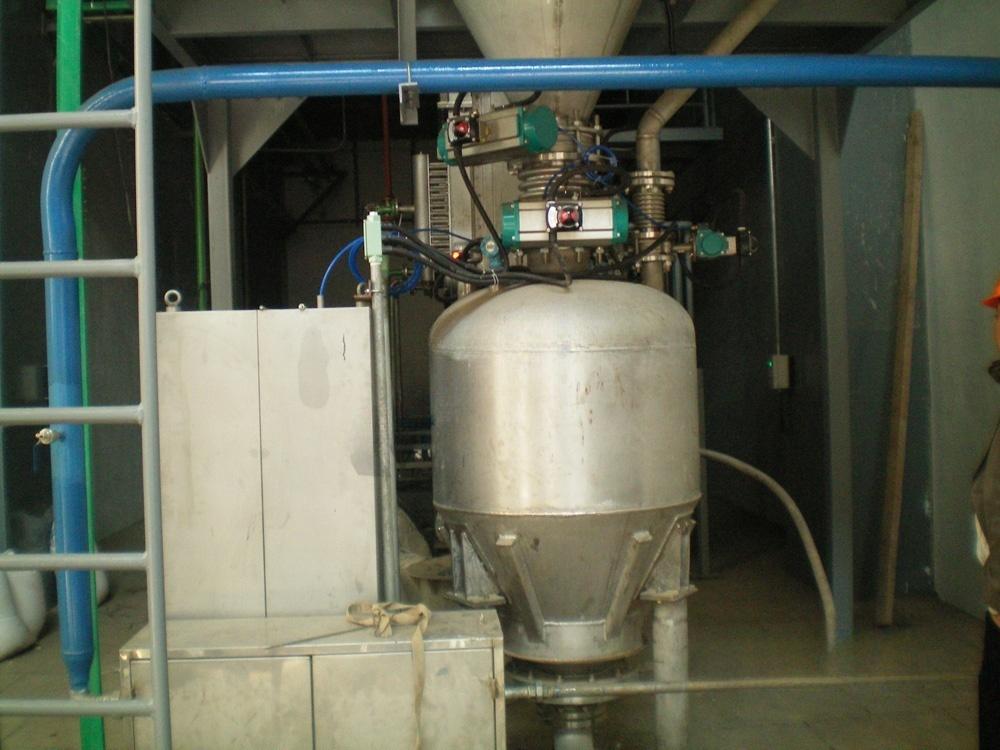

Dense Phase Pneumatic Conveying System

Positive Pressure Dilute Phase Pneumatic Conveying System

The roots blower is generally used as the power source for dilute phase positive pressure pneumatic conveying. The low-pressure compressed air at the fan outlet is mixed with the powder provided by the feeder in the accelerator chamber and then transported to the receiving bin through pipes. The receiving bin needs to be equipped with a ventilation device on the top of the bin. Dilute phase positive pressure pneumatic conveying can realize synchronous metering of powder during conveying.

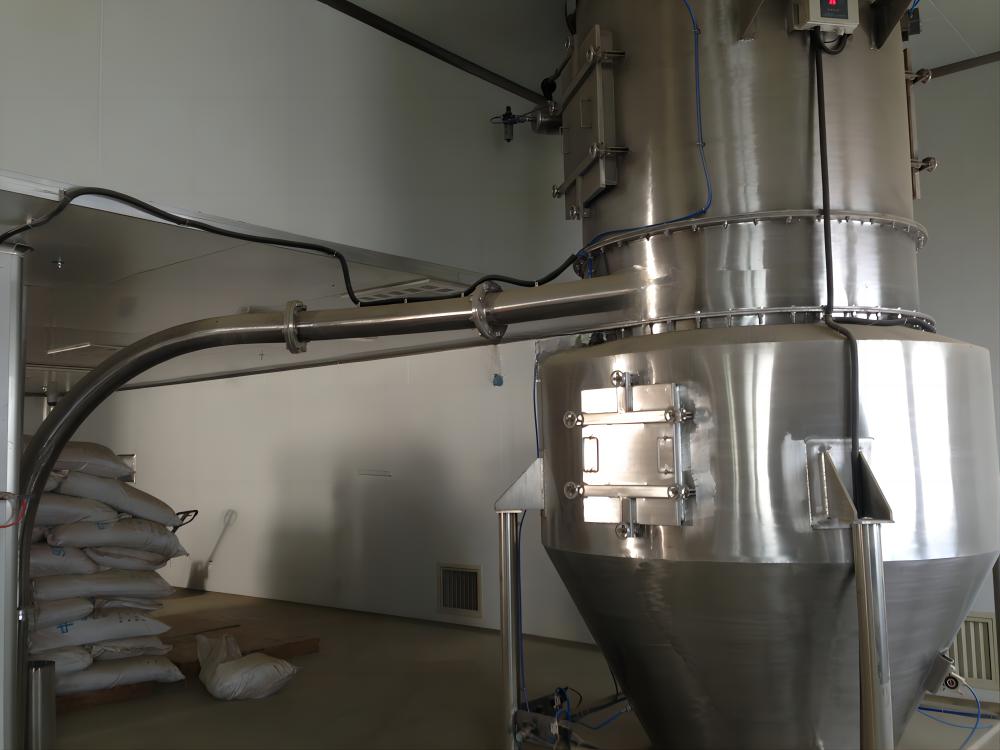

Negative Pressure Dilute Phase Pneumatic Conveying Device

Generally, Roots blower, centrifugal fan or vortex pump are used as the power source for dilute phase negative pressure pneumatic conveying to pump the pipeline and vacuum hopper into a certain vacuum state, so that the air inlet can form two-phase flow of material powder and gas under the action of atmospheric pressure, and then it is fed into the vacuum hopper through the conveying pipeline. The gas-solid separation is carried out through the vacuum feeding hopper.
