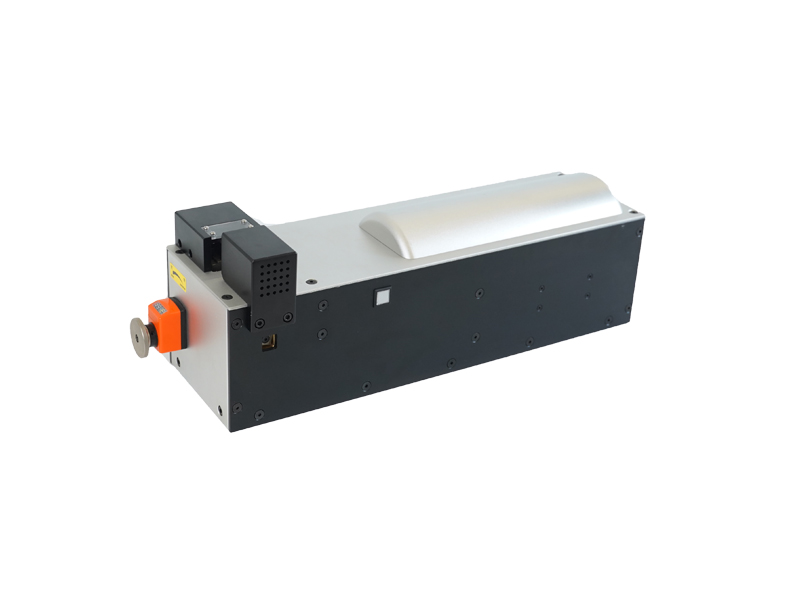

Wiring Harness Machine

•

  Manual wire harness machine

  Model characteristics
  Manual adjustment for a single product
  Lap welding process between multiple conductor and conductor
  Copper, aluminum, or copper-aluminum cables can be used


  Scope of application
  Automobile wire harness processing, wire ends into knots
  Transformer leads, relay leads, etc


  Frame selection
  Wy-20XS030L 25mm2 rack
  Wy-20XS060L 50mm2 rack


  Technical parameter
  Rack model :Wy-20XS030L Rack model :Wy-20XS060L
  Maximum power :3.0KW Maximum power :6.0KW
  Operating frequency :20KHz Operating frequency :20KHz
  Power input :220AC /50Hz Power input :380AC/50Hz
  Air source input :min0.65MPa Air source input :min0.65MPa
  Welding capacity :0.5~25mm2 Welding capacity :2.5~50mm2
  Frame weight :20Kg
  Rack size :535x168x178mm

  contact us
•

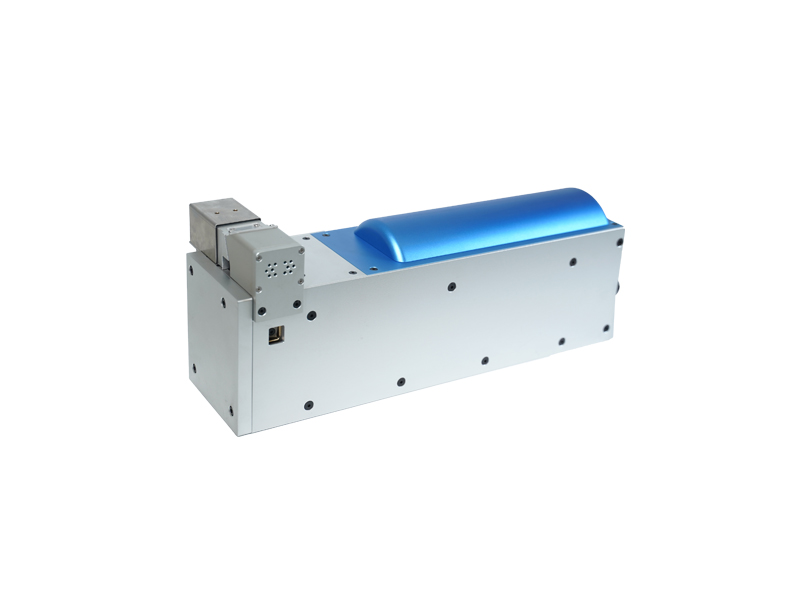

  Automatic wire harness machine

  Model characteristics
  Automatic adjustment, can be connected to MES system
  Lap welding process between multiple conductor and conductor
  Copper, aluminum, or copper-aluminum cables can be used
  Comes with quality monitoring software


  Scope of application
  Automobile wire harness processing, wire ends into knots
  Transformer leads, relay leads, etc


  Frame selection
  Wy-20XS030H 25mm2 rack
  Wy-20XS060H 50mm2 rack


  Technical parameter
  Rack model: Wy-20XS030H Rack model: Wy-20XS060H
  Maximum power: 3.0KW Maximum power :6.0KW
  Operating frequency: 20KHz Operating frequency: 20KHz
  Power input: 220AC /50Hz Power input :380AC /50Hz
  Air source input: min0.65MPa Air source input: min0.65MPa
  Welding capacity: 0.5 ~25mm2 Welding capacity: 2.5 ~ 50mm2
  Frame weight: 20Kg
  Rack size: 483x1 95x165mm
