Mechanical Seals

•

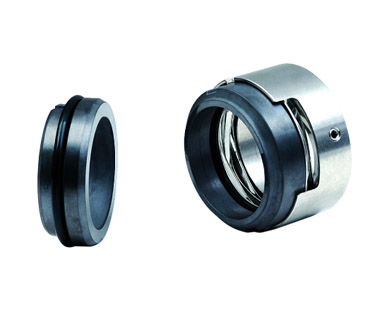

  HCMFLWT

  Technical parameters:

  Sealing chamber temperature: -40 ℃+400 ℃

  Linear speed: ≤ 20m/s

  Sealing chamber pressure: ≤ 25bar

  Shaft diameter size: 16-100mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary seal: flexible graphite

  Spring and metal parts: 304316, Hastelloy alloy, AM350, In718, Ti

  contact us
•

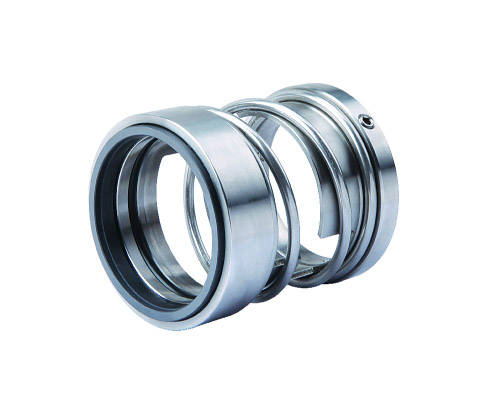

  HC58U/59U

  Technical parameters:

  Sealing chamber temperature: -20 ℃+250 ℃

  Linear speed: ≤ 15m/s

  Sealing chamber pressure: ≤ 12bar

  Shaft diameter size: 14-100mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, perfluorocarbon rubber, polytetrafluoroethylene

  Spring and metal parts: 304316, Hastelloy alloy

  contact us
•

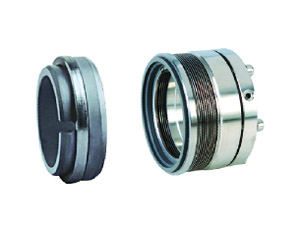

  HCH7N/H74

  Technical parameters:

  Sealing chamber temperature: -20 ℃+220 ℃

  Linear speed: ≤ 20m/s

  Sealing chamber pressure: ≤ 25bar

  Shaft diameter size: 14-100mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, perfluorocarbon rubber

  Spring and metal parts: 304316, Hastelloy alloy

  contact us
•

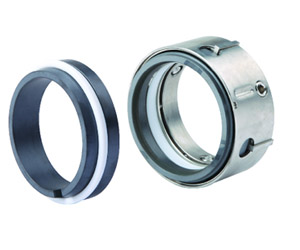

  HCM3N/M32/M37/M37G

  Technical parameters:

  Sealing chamber temperature: -20 ℃+180 ℃

  Linear speed: ≤ 15m/s

  Sealing chamber pressure: ≤ 10bar

  Shaft diameter size: 10-80mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber

  Spring and metal parts: 304316

  contact us
•

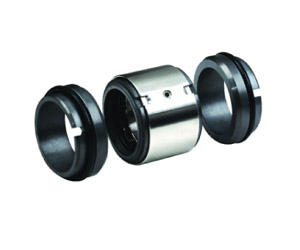

  HCM74-D

  Technical parameters:

  Sealing chamber temperature: -20 ℃+220 ℃

  Linear speed: ≤ 20m/s

  Sealing chamber pressure: ≤ 16bar

  Shaft diameter size: 18-100mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, perfluorocarbon rubber

  Spring and metal parts: 304316, Hastelloy alloy

  contact us
•

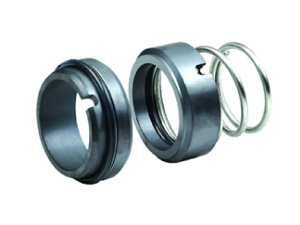

  HCHA211

  Technical parameters:

  Sealing chamber temperature: -20 ℃+160 ℃

  Linear speed: ≤ 20m/s

  Sealing chamber pressure: ≤ 12bar

  Shaft diameter size: 20-100mm

  Material combination:

  Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

  Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber

  Spring and metal parts: 304316
