Sandblasting Machine

•

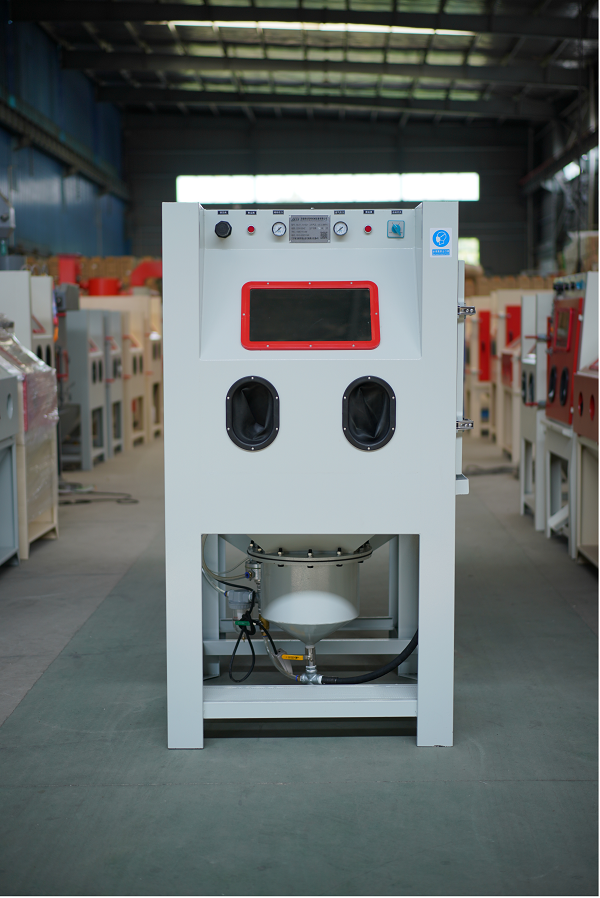

  1010SW Liquid Sandblasting Machine

  Suitable products:
  1) Suitable for liquid sandblasting (shot) processing technology.
  2) Suitable for small and medium-sized parts of single, small batch processing.
  3) Clean the oxide skin, residual salt and welding slag of heat treatment parts, welding parts, castings, forgings, etc. The cleaning quality can reach Sa3 level.
  4) Suitable for cleaning burrs and surface residues of machine additions.
  5) Change the surface roughness Ra value of the workpiece.
  6) It is suitable for the pretreatment processing before the surface coating and plating of the workpiece, which can obtain the active surface and improve the adhesion of the coating and coating.
  7) Suitable for high precision and complex shape parts finishing processing.
  8) It is suitable for improving the physical and mechanical properties of the surface of the workpiece, such as changing the surface stress state, improving the lubrication conditions of the matching parts, and reducing the noise during the movement of the matching parts.
  9) Can be used for the renovation of old parts.
  Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
  Overall dimensions:
  Overall dimensions 1000 (W) 1500 (H) 1800 (H) mm
  Key technical data
  Electrical equipment
  1) Grinding pump motor: AC380V, 50Hz, 2.2KW, 2840r/min.
  2) Lighting device: AC220V, 50Hz, 30W energy-saving lamps.
  3) Total power: about 3KW.
  Tank grinding fluid volume: about 70 L.
  Abrasive:
  1) Type: corundum, glass sand abrasives are recommended.
  2) Granularity: 24 # ~ 180 #.
  3) Dosage: 20 ~ 30kg.
  Work table:
  1) Diameter: Φ600mm.
  2) Maximum uniform weight: 200Kg.
  Airbrush:
  1) Quantity: 1 manual spray gun.
  2) Nozzle diameter: φ8mm.
  3) Air nozzle diameter: φ4mm.
  4) Working pressure (compressed air gauge pressure after startup) : 0.2 ~ 0.6MPa.
  5) Single gun air consumption: about 1M3/min (determined according to compressed air pressure).
  Total air consumption:
  Approximately 1M3/min (determined by compressed air pressure).
  Gas pipe connector size:
  φ12mm(straight hose)
  Pipe connector size: outer diameter of 13mm(equal to the hose inner diameter).
  Weight:
  The main package weighs about 200kg
  Working conditions:
  1) Power supply: three-phase 380V, three-phase four-wire (need to connect the neutral line) 50Hz power supply.
  2) Air source: air source pressure 0.8MPa, displacement 1 M3/min[refers to the standard state (20℃, 101.325kPa) air volume flow.
  3) Water source: industrial tap water.

  contact us
•

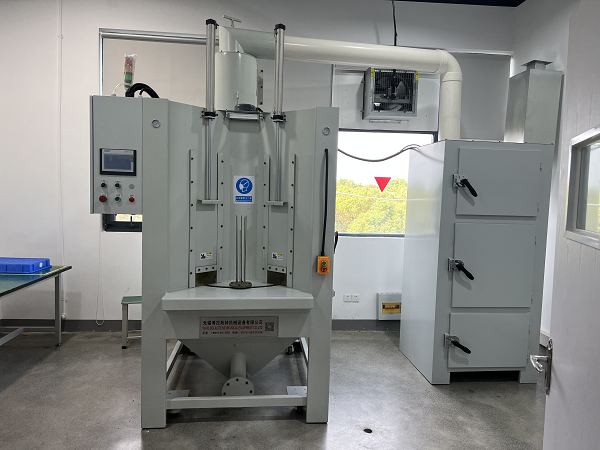

  Fully automatic robot turntable sandblasting machine

  Suitable products:
  Disk and cylindrical workpieces ‌ : such as handicrafts, glass lampshades, non-stick pans, flashlights, etc.
  square workpieces ‌ : such as baking pan, stainless steel wash basin and so on.
  ‌ other special-shaped workpieces ‌ : such as electronic, medical equipment, auto parts and so on.
  Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Polishing and drawing treatment; Enhance adhesion; Increase surface texture
  Overall dimensions:
  1700 * 3500 * 2900

  contact us
•

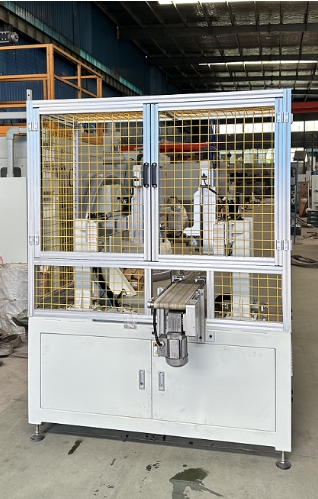

  Eight-gun pass-through machine

  Suitable products:
  1) The surface sandblasting pretreatment of the product before electroplating and spraying processing, so that the surface of the workpiece is absolutely clean, so as to improve the adhesion and anti-corrosion ability of the covering layer; Casting parts, stamping parts, heat treatment parts and other metal workpiece oxidation, residue, dirt, burr and other cleaning and renovation treatment; Surface cleaning of non-metallic products, removal of black spots on the surface of ceramic embryonic parts and restoration of paint patterns.
  2) Etching, non-slip processing: metal products, non-metal products surface etching patterns, text and non-slip treatment, (such as: marble, handle non-slip, seal, stone inscription, etc.)
  Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
  Overall dimensions:
  Applicable processing range: width ≤600mm, height ≤200mm, note: the width exceeds 600mm can not be sprayed;
  Suitable abrasive: 30-600 mesh abrasive (glass beads; Brown corundum; Silicon carbide; Ceramic sand), etc
  Equipment type: wind recovery/mechanical recovery type;
  Main machine parameter: ≤ L3000×W1280×3200;
  Total equipment parameters: ≤ L3604×W1480×H3200; Gun group swing system parameters: 0.4KW motor, swing frequency ≥60 times /min (adjustable);
  Spray gun group parameter :8 HX-B spray guns; Boron carbide nozzle: diameter 8× 20×60;
  Workpiece conveying parameters: conveyor power 0.75KW conveying speed 0.6-3m/min adjustable;
  Dust box parameters: ≤ L1100×W850×H2200mm(including fan height) 3Kw high pressure centrifugal fan;
  Lighting and control appliances: 0.25KW
  Daily production: determined by the shape of the customer's workpiece and production efficiency;
  Total power of equipment: ≈4KW (excluding power of air compressor equipment)

  contact us
•

  Trolley turntable sandblasting machine

  Suitable products:
  Product surface pretreatment, cleaning, refurbishing, polishing and other processing: product plating, spraying processing before the surface sandblasting treatment, so that the surface of the workpiece is absolutely clean, so as to improve the adhesion of the covering layer and anti-corrosion ability; Casting parts, stamping parts, heat treatment parts and other metal workpieces to remove oxide skin, residue, dirt, burr and other cleaning and renovation treatment; Surface cleaning of non-metallic products, removal of black spots on the surface of ceramic embryonic parts and restoration of paint patterns. Etching, non-slip processing: metal products, non-metal surface etching pattern, text and non-slip treatment, (such as: marble, handle non-slip, seal, stone inscription, etc.)
  Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
  Overall dimensions:
  Applicable processing range: rotary diameter ≤150mm, total height ≤450mm;
  Number of turntables: 4
  Number of blasting and handling workers: 1
  Suitable abrasive: emery; Glass beads; Brown corundum; Silicon carbide; isoabrasive
  Abrasive recovery type: negative pressure siphon type;
  Main machine parameter: L1200×W1500×H2910;
  Dust collector parameters: L1000×W1300×H2600; 6 filter element, 3Kw high pressure centrifugal fan;
  Gun group swing system parameters: 0.75KW motor, swing frequency ≥60 times /min (variable frequency);
  Spray gun group parameter :6 HX-B spray guns are divided into two groups, each group of three spray guns for a station sand blasting operation; Boron carbide nozzle: diameter 8× 20×60;
  Specify the system parameters; Set up two 12W LED lights, one for observing the sandblasting state in the cabin, and one for bench lighting.
  Large rotary motor: 0.75KW, small rotary motor: 0.4KW;
  Workpiece sandblasting time: adjustable at any time;
  Daily production: determined by the shape of the customer's workpiece and production efficiency;

  contact us
•

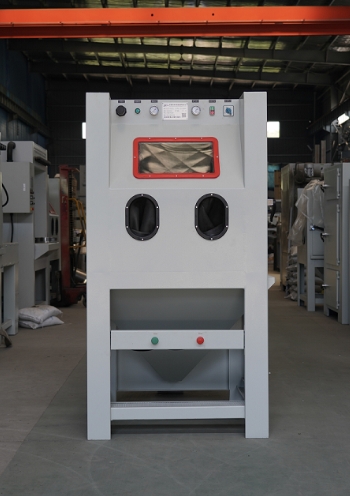

  1010 Press-in Chamber Sandblasting Machine

  Applicable products: This machine can clean the rough surface of forgings, welding parts, heat-treated parts, stamping parts and machined parts, remove scale, residual salt and burrs, and is used for pre-treatment before spraying and electroplating; this machine can also be used for spraying glass beads and strengthening the surface of polished parts; this machine is suitable for small-batch production of medium and small parts with high quality and high efficiency; this machine is especially suitable for casting factories, stainless steel parts factories, aluminum alloy parts factories, auto parts factories, etc.
  Function description: cleaning and removing impurities; surface erosion reduction and sandblasting; enhancing adhesion; increasing surface texture

  contact us
•

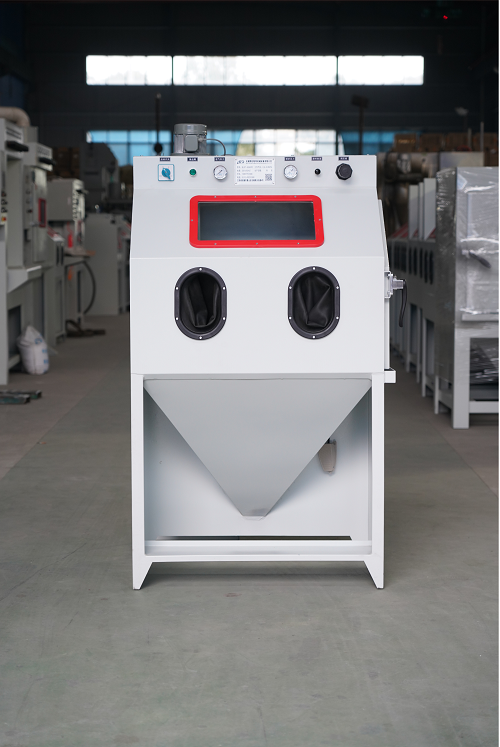

  9060 Manual Sandblasting Machine

  Applicable products: Mainly used for sandblasting before electroplating, painting, spraying and all other covered processing to improve adhesion; heat treatment, descaling, deburring, rust removal, degreasing and refurbishment of old parts on various molds, castings, stampings, metal and non-metal surfaces; polishing and atomization matte treatment of all ceramic products, glass products and plastic products; surface treatment of all metal products, glass, plastic crafts, jewelry, glasses, clocks, etc.
  Function description: cleaning and removing impurities; surface erosion reduction and sandblasting; enhancing adhesion; increasing surface texture

  contact us
•

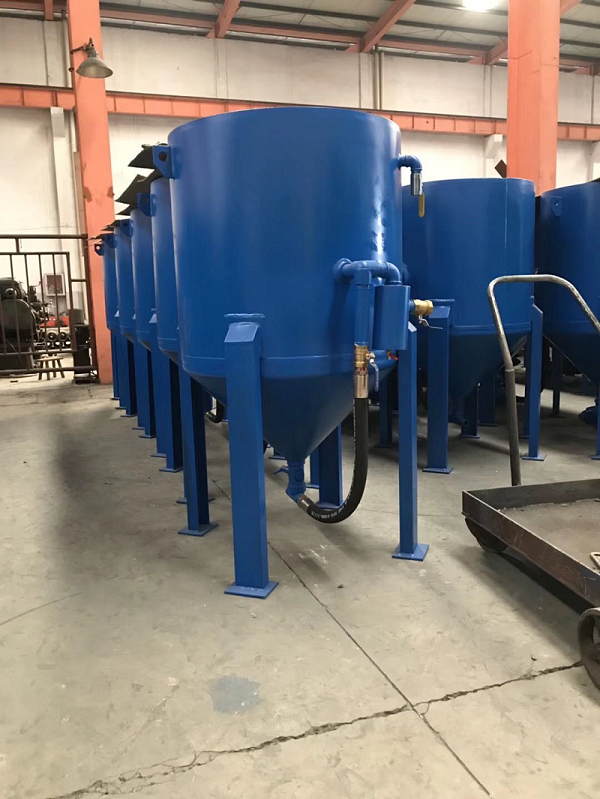

  800SW mixed water sandblasting machine

  Applicable products: BLST-800SW series sandblasting machine is an environmentally friendly sandblasting equipment, which is a multi-purpose, high-efficiency, new environmentally friendly sandblasting equipment designed and produced by our company. The equipment uses compressed air as power to spray abrasives onto the surface of the workpiece at high speed. After the abrasive impact, the rust on the surface of the workpiece is removed, so that the surface reaches a certain degree of cleanliness and roughness. It has a good effect of suppressing dust, the working environment is clean and pollution-free, and the work site meets the "GB103328-10333-89" workshop air dust hygiene standard. The equipment can be widely used in petrochemical, metal structure, shipbuilding, pipeline power, aerospace, locomotive manufacturing and other industries, and is an ideal tool for pretreatment of various steel structures before painting.
  Function description: cleaning and removing impurities; surface erosion reduction and sandblasting; enhancing adhesion; increasing surface texture

  contact us
•

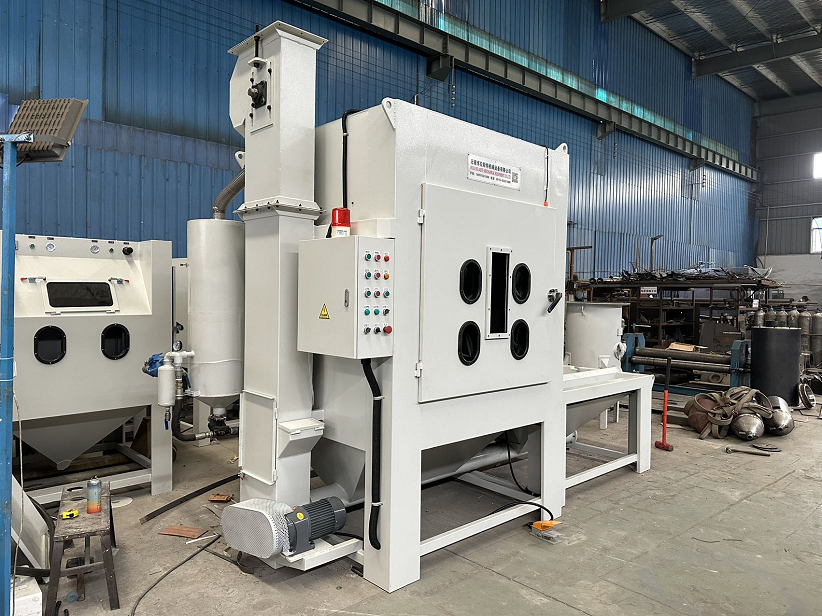

  Trolley turntable sandblasting machine

  Suitable products: all kinds of round, oval, quad-shaped mold and opposite parts of sandblasting, can remove heat treatment parts, welding parts, castings, forging parts and other surface oxide (rust), residual salt and welding slag
  Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase the surface texture, cleaning quality can reach Sa2.5 level.
  Overall dimensions:
  Applicable processing range: diameter ≤1400mm, height ≤1300mm; Weight ≤1500KG
  Turntable diameter: ø1200mm
  Load capacity: ≤1500KG
  Shell fixing method: the positioning pile is arranged on the turntable according to the hole of the product base, and the mold is placed on the turntable tooling;
  Suitable abrasive: emery; Glass beads; Brown corundum; Silicon carbide; Steel sand, steel pellets, iron sand and other abrasives
  Equipment type: mechanical recovery (bucket lift);
  Main machine parameter: L1660×W1600×H2400;
  Total machine parameters: L3558×W1600×H2650;
  Maximum workpiece size: W1480×H1300
  Trolley motor 1.1kw (walking speed 0-3M/min variable frequency adjustable)
  Number of spray guns -------------- ------- 1 (for users to choose)
  A manual pressure sand gun. Boron carbide nozzle: diameter 8× 20×60;
  Workpiece sandblasting time: 0-999S adjustable at any time;
  Daily production: according to the shape and size of the customer's workpiece;

  contact us
