Capacitance and Resistance

•

  High Dielectric Constant Type

  If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely

  contact us
•

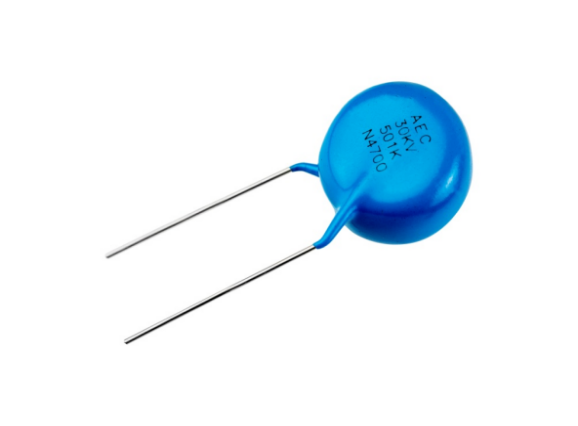

  Lead Type UHV Capacitor

  Technical Parameters
  ●Capacitance Range & voltage
  ●Base metal, all electrode and miniaturized ceramic chip
  ●Miniaturization, low loss, high insulation resistance and
  high breakdown strength
  ●Excellent frequency and temperature characteristics
  ●7 patents have been obtained

  contact us
•

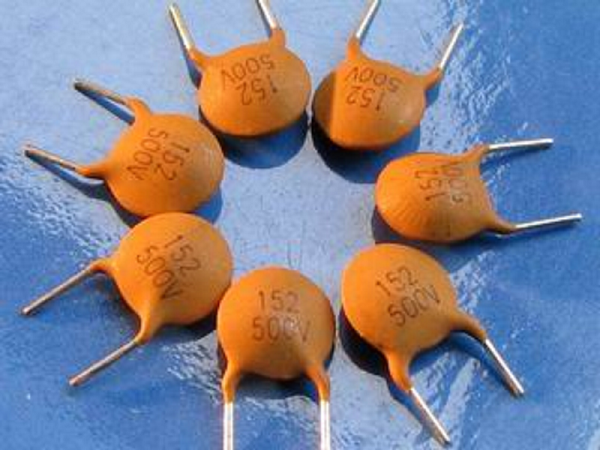

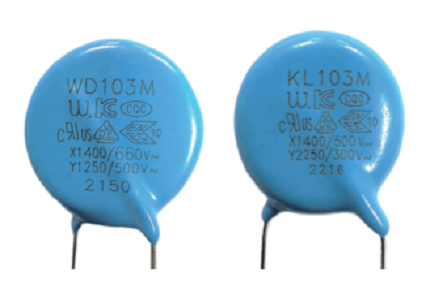

  AC ceramic capacitor (KL/WD type)

  If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely

  contact us
•

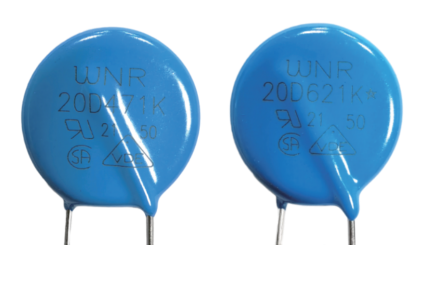

  Metal Oxide Varistor

  If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely

  contact us
•

  Metallized Polyester Film Capacitor (Dipped)

  ■Typical Applications
  Suitable for blocking, by-pass and coupling of DC
  and signals to VHF range
  Widely used in filter and low pulse circuits
  ■Features
  Wide capacitance range, small size, and light weight

  contact us
•

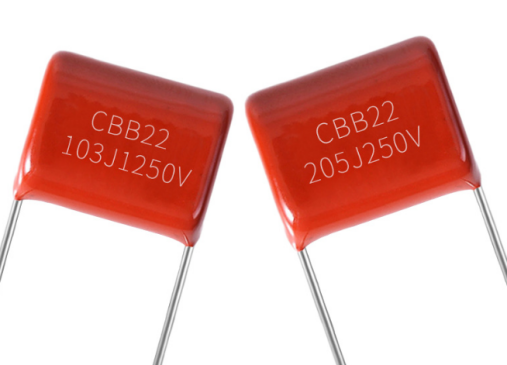

  Metallized Polypropylene Film Capacitor (Dipped)

  ■Typical Applications
  Widely used in high frequency, DC, AC and pulse circuits
  Electronic ballasts, Switch-mode power supplies
  ■Features
  Metallized polypropylene film with radial leads of tinned
  Wound capacitor technology
  Epoxy resin coating (UL 94V-0)

  contact us
•

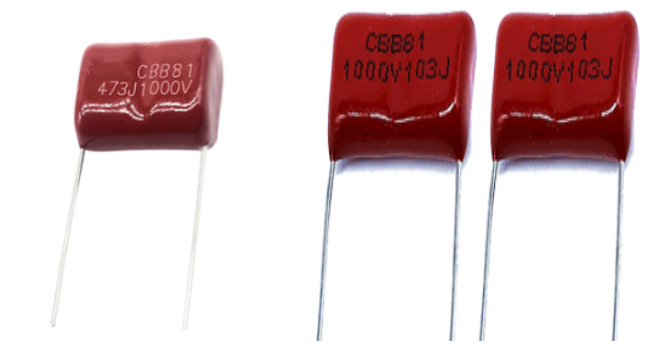

  High Voltage Metallized Polypropylene Film/Foil Capacitor (Dipped)

  ■Typical Applications
  Horizontal resonance circuits of large screen monitor
  Suitable for high pulse and high current loading circuit
  and electronic ballast
  ■Features
  Metalized polypropylene film/foil, Wound construction
  Low loss and small inherent temperature rise
  Negative temperature cofficient of capacitance
  Flame retardant epoxy resin powder coating (UL94V-0)

  contact us
•

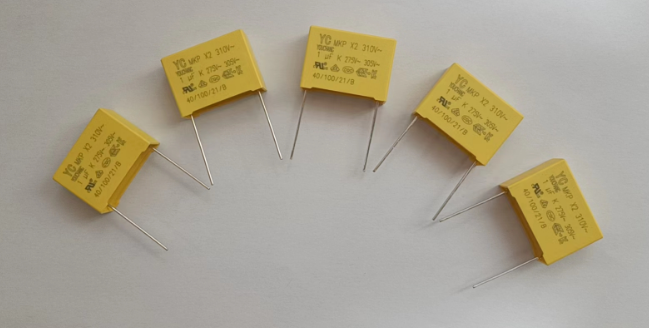

  EMI Suppression Capacitor, Class X2

  ■Typical Applications
  For worldwide use in electromagnetic interference (EMI)
  suppression in across-the-line applications requiring X2
  safety dlassification. Intended for use in situations where
  capacitor failure would not result in exposure to electric
  shock. Not for use in "series with mains" type applications.
  ■Features
  Metallized polypropylene film with radial leads of tinned
  wire. The capacitor is encapsulated in a self-extinguishing
  solvent resistant plastic case with thermosetting resin
  material meeting UL 94 V-0 requirements.

  contact us
•

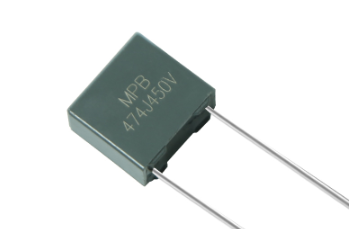

  Metallized Polypropylene Film Capacitor (Boxed)

  ■Typical Applications
  Widely used in high frequency, DC, AC and pulse circuits
  Suitable for the situation where applies high frequency
  and high current pulse.
  ■Features
  Metllized polypropylene film with radial leads of tinned
  wire. The capacitor is encapsulated in a self-extinguishing
  solvent resistant plastic case with thermosetting resin
  material meeting UL 94 V-0 requirements.

  contact us
•

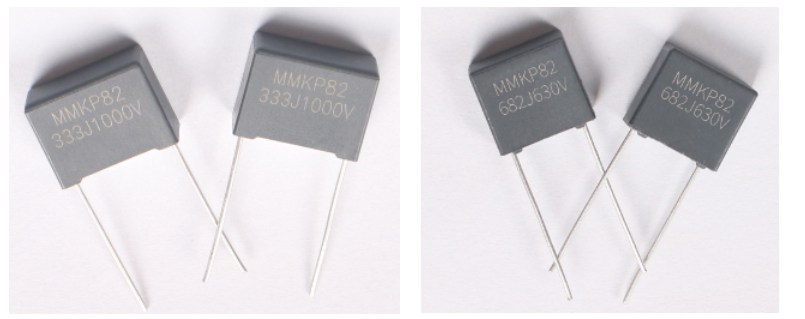

  Double Sided Metallized Polypropylene Film Capacitor (Boxed)

  Widely used in high voltage, frequency and pulse circuit
  Electronic ballasts and compact lamps
  Snubber and SCR commutating circuits

  Extended double metallised polyester electrodes
  with metallised polypropylene dielectric internal
  series connection
  UL 94 V-0 plastic case with thermosetting resin-ill

  contact us
•

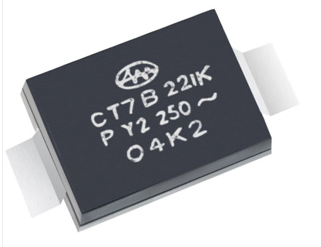

  Epoxy Molding SMD Y2-CAP

  Trait
  -We design capacitors much more compact in thickness than traditional radial Type, having reduced the thickness to 2.5mm height.
  - Operating temperature range -40~+125C
  -Dielectric strength: AC2500V
  - Class X1/Y2 capacitors certified by ULVDE/ENEC.
  - Coated with flame -retardant epoxy resin (conforming to UL94V-0 standard).
  - Taping available for automatic SMT reflow.
  - AC250V Rated Voltage item are available.
  -This one is MSL 3 product.
  Application Area
  -ldeal for use as XN capacitors for AC line filters and primary-secondary coupling on switching power supplies and AC adapters.
  -ldeal for use on D-A isolation and noise absorption for DAA modems without transformers.

  contact us
•

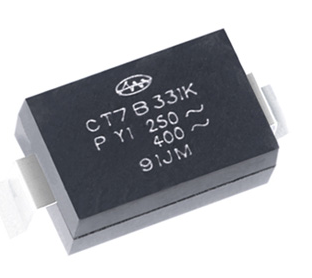

  Epoxy Molding SMD Y1-CAP

  - We design capacitors much more compact in thickness than traditional radial Type, having reduced the thickness to 2.5mm height.
  -Operating temperature range -40~+125C
  - Dielectric strength: AC4000V
  - Class X1/Y1 capacitors certified by UL/CQCNVDE/ENEC/KC.
  - Coated with flame- retardant epoxy resin (conforming to UL94V-0 standard).
  - Taping available for automatic SMT reflow.
  - AC250V & AC400V Rated Voltage item are available.
  -This one is MSL 3 product.
  Application Area
  - Ideal for use as XN capacitors for AC line filters and primary-secondary coupling on switching power supplies and AC adapters.
  - ldeal for use on D-A isolation and noise absorption for DAA modems without transformers.

  contact us
•

  Screw type UHV Ceramic Capacitor

  Trait
  - Excellent temperature characterstics
  - Low dissipation
  -High insulation resistance
  - High breakdown strength
  - Fully symmetric full copper electrode
  - Epoxy coating
  -Screw terminal mounting
  Application Area
  - Smart grid
  -High voltage power supplies
  - CO2 lasers
  - X-ray equipment
  - Welding equipment
  Range Of Capacity
  10 pF to 10.000pF

  contact us
