Granulating Equipment

•

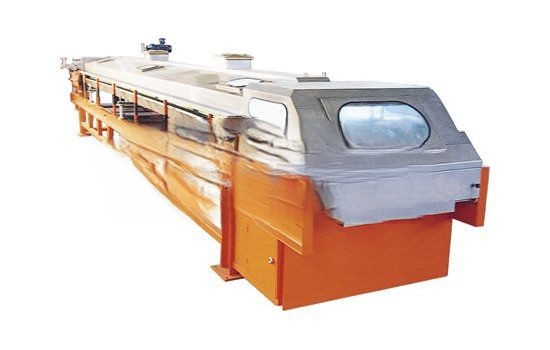

  RL Series Melting Granulator

  Overview The
  　　RL type granulator uses the characteristics of the melting point of the material to be lower than 250°C. According to the viscosity range of the material in the molten state, the molten liquid is evenly distributed on the steel belt moving at a constant speed below it through a special distribution device. Under the cooling effect of the set continuous spraying device, the material is cooled, solidified and packed during the process of conveying and transporting, so as to achieve the purpose of granulation and molding.
  Performance characteristics
  　　 This product is a new type (melting) forming granulator. Using thin steel belt heat transfer and atomization spray cooling to make the molten liquid be solidified and formed rapidly, and a single machine rotating shell is adopted. The result is easy maintenance, minimal wear and high productivity. Quick and easy loading and unloading and product replacement. Moreover, the drop die forming machine and the steel belt run synchronously, so uniform ingots can be produced at high speed, which improves productivity and increases production profits. And can eliminate dust, improve the environment, significantly expand the viscosity range. This product is an economical and reliable production process, capable of processing Φ4-12mm particles, these products are very uniform, in the shape of hemispheres, strips and flakes, stable, free of thermal stress and high in purity and quality. Because the equipment comes with a filter and block removal device, the operation is more reliable.
  Structure (1)
  　　 According to the melting point (freezing point) of the processed product, the temperature viscosity of the material and the cooling effect, the conveying speed and the rotation speed of the machine head are selected to avoid affecting the production capacity and granular quality.
  　　 The machine changes from liquid to solid granular, mainly through granulation die head granulation, adopts rotary steel belt to carry out continuously, and cools and shapes by spraying water.
  Structure (2)
  　　 The machine is mainly composed of blanking die granulation forming head, cooling and conveying stainless steel belt and pulley, spray cooling system, transmission system, heat preservation device, frame, scraper and so on. Blanking die granulation head is mainly composed of head die sleeve and head mandrel. The spray cooling system is mainly composed of nozzles, water tanks, etc. The transmission system is mainly composed of a reduction box (reducer) and a speed regulating motor.

  Applicable materials
  　　This product is suitable for various materials that need to be granulated with a melting point (or softening point) between 50°C and 300°C, as well as materials with "supercooled crystallization" characteristics.




  Technical requirements
  　　The material must be filtered and solid impurities must not enter the granulator head, otherwise it will cause wear or blockage of the head and affect the granulation quality.
  　　The temperature control should be determined according to the melting point temperature, and the heat preservation requires that the temperature change should not exceed ±3°C. The cooling system should be equipped with a filter, and the cooling water temperature is generally between 5°C and 25°C (low water temperature, fast forming, good granularity, and high output).
  Overview
  　　This product is a new type (melting) molding granulator. The working process changes from liquid to solid after conveying and cooling, and materials with a melting point in the range of 50°C to 300°C can be granulated. No dust, which improves the production environment; and has a certain economic value (energy saving, economical packaging container), quick replacement of products, beautiful granulated products, uniform and nearly hemispherical granular, no thermal stress; granulated products are easy to pack, transport and store , It is also convenient for users to measure, mix or remelt, and can be continuously produced. From feeding to packaging, it reduces physical labor, has stepless speed regulation, adjustable flow rate, and is easy to operate. Widely used in petroleum, fine chemical and other industries. One machine is multi-purpose to make strips, cut pieces, and flakes; toxic materials can be used as a sealed group.

  contact us
•

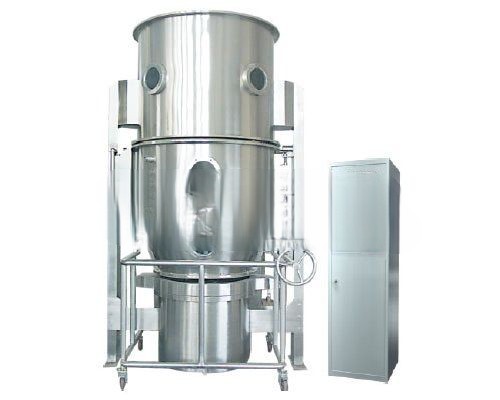

  FL FG Series Vertical Fluidized Granulation Dryer

  Performance characteristics
  ◎Improve fluidity and reduce dust flying
  through powder granulation; ◎Improve its solubility through powder granulation;
  Mixing—granulation—drying—complete in one machine (one-step granulation);
  Antistatic filter material, safe operation of equipment;
  ◎Binder atomizer adopts multi-fluid spray gun, with uniform mist particles and greatly improved qualified rate of finished products;
  Applications
  ◎Pharmaceutical granulation and coating
  　Granulation: tablet granules, granules for granules, granules for capsules.
  　Coating: Granules, pill protective layer, color preparation, sustained release, film, enteric coating.
  ◎Food granulation and coating
  Sugar, coffee, cocoa powder, butter, powdered fruit juice, amino acid, seasoning, puffed food.
  ◎Pesticides, pigments, dyes granulation
  ◎Powder, granule, block material drying

  contact us
•

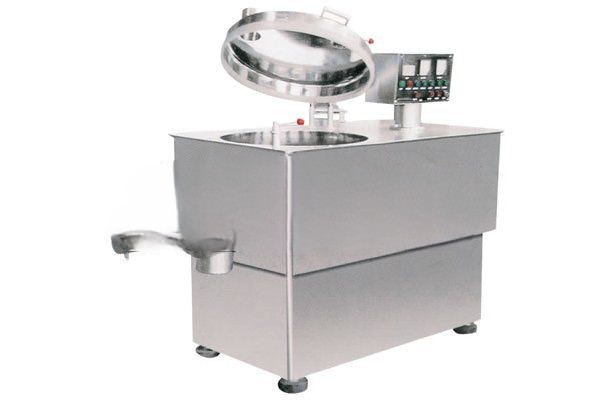

  GHL Series High Speed Mixing Granulator

  Working principle
  The powder material and the binder are fully mixed into a wet soft material by the bottom mixing slurry in the cylindrical container, and then cut into uniform wet particles by the side-mounted high-speed crushing paddle.
  Performance characteristics
  ◎This machine adopts horizontal cylinder structure with reasonable structure.
  ◎The drive shaft is inflated and sealed, and can be switched to water when cleaning.
  ◎Fluidized granulation, the granulation is approximately spherical and has good fluidity.
  ◎Compared with the traditional process, the adhesive is reduced by 25%, and the drying time is shortened.
  ◎It only takes 2 minutes for dry mixing and 1-4 minutes for granulation in each batch, and the work efficiency is 4-5 times higher than the traditional process.
  ◎Complete in the same closed container, dry mixing-wet mixing-granulation, the process is shortened.
  ◎The whole operation has strict safety protection measures.
  ◎It can be made into a jacket type according to user requirements.

  contact us
•

  ZLB Series Rotary Granulator

  Performance characteristics
  　　 This machine is made of stainless steel for all parts in contact with materials, with beautiful appearance, reasonable structure, high granulation molding rate, beautiful granules, automatic discharge, avoiding damage to granules caused by manual discharge, and suitable for assembly line operation.
  Application range
  　　 This machine is used in pharmaceutical, food, granule, chemical industry, solid beverage and other industries to make the mixed materials into required granules, especially suitable for materials with high viscosity.

  contact us
•

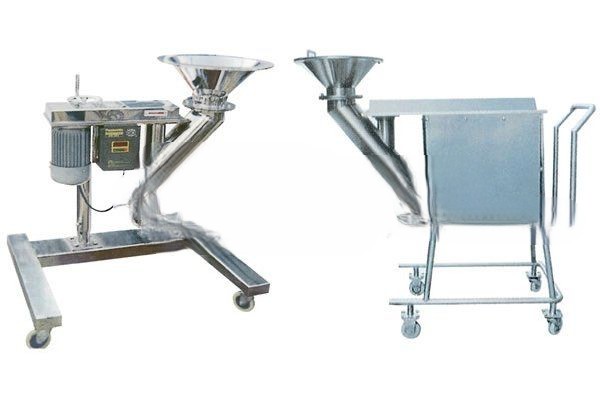

  KZL Series Fast Granulation (Crushing) Machine

  Working principle
  ◎Small heat generation during work. Less dust.
  ◎The stator screen is made of stainless steel, which is not easy to be damaged.
  ◎The gap between the crushing knife and the screen is adjustable.
  ◎Can handle viscous, gum-like, hot and wet materials.
  Suitable for materials
  ◎Dry and wet granule homogenization and sizing.
  ◎Crushing and granulation of agglomerate materials.
  ◎Wet material granulation.
  ◎Crush heat-sensitive materials.

  contact us
•

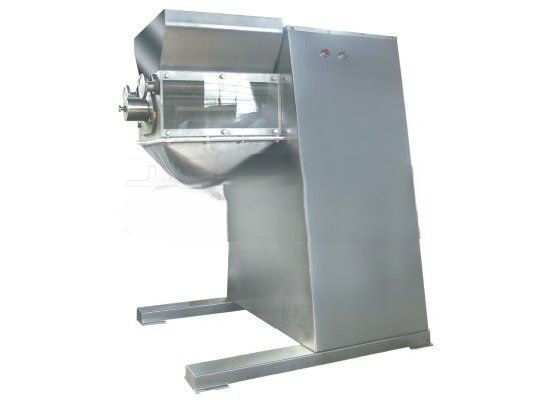

  YK Series Swing Pellet Machine

  Working principle
  Make the stirred material into granules of the required size, or break the agglomerated material into small granules.
  Applicable materials
  This machine is suitable for granulation in pharmaceutical, chemical, food, solid beverage and other industries.

  contact us
•

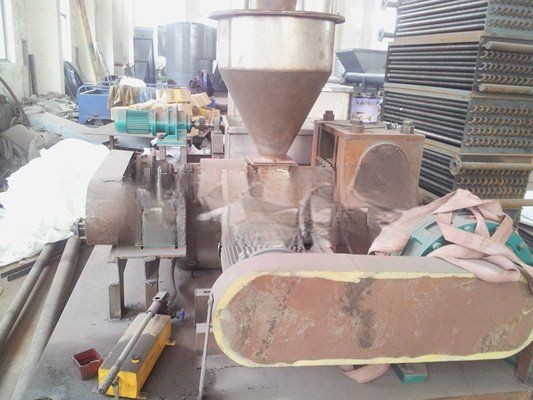

  GZL Series Dry Rolling Granulator

  Extrusion granulation is a relatively new dry granulation process for producing compound fertilizers. Extrusion granulation was first applied to the granulation of potassium chloride in the field of fertilizers. The granular (1-4mm) potassium chloride required for blending fertilizers (BB fertilizer) is basically produced by extrusion. In recent years, extrusion granulation for the production of compound fertilizers has developed rapidly in China.
  There are two forms of extrusion granulation: double-roller type and wheel-roller type. The double-roller type extrusion is first pressed into large pieces, and then broken into granules. This device has large capacity, high granule strength, and low energy consumption. Roll extrusion is widely used abroad. The wheel rolling type is directly made into a shape with grooves on the surface of the roller, and extruded into shaped particles at one time. When the product strength is low, it is sometimes necessary to add a binder. It is suitable for granular fertilizers such as organic fertilizers and compound fertilizers.
  The principle of roller extrusion granulation is: the dry material is agglomerated into a dense and hard block (cake) under pressure, which is called the extrusion process; the cake is crushed and sieved to become a granular material called for the granulation process. The role of extrusion is to squeeze out the air between the particles, and to make the distance between the particles close enough to generate attractive forces such as van der Waals force, adsorption force, crystal bridge and embedded connection. Extruded granulated particles mainly rely on the strength of particles formed by the force between molecules.
