Infrared Scanning Temperature Measurement

•

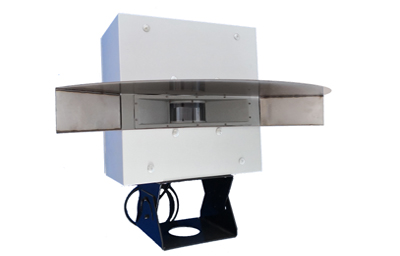

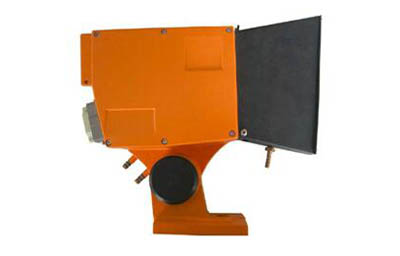

  Kiln Shell Scanning System

  Kiln shell infrared scanning system is an infrared line scanner system purposely designed for rotary kiln shell temperature monitoring application. This system enables accurate non-contact kiln shell temperature monitoring, lining and coating thickness evaluation and live-ring migration.
  It uses infrared sensor to check the temperature continuously of all areas of a kiln to create a thermal profile of the kiln. lts a complete solution for kiln shell monitoring. Our infrared scanning system defines a new generation of infrared measuring technology based on WINDOWS operating system.
  This system is used for cement rotary kiln Alumina furnace, lime furnace, pelleting furnace and chemical fertilizer furnace.

  contact us
•

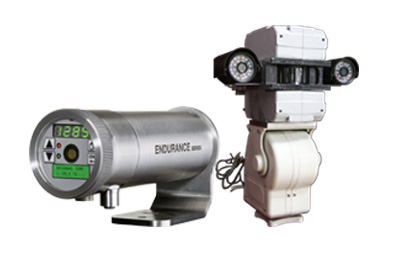

  Visual Infrared Pyrometer System

  This system combines video camera and high-speed infrared scanner system, with full direction network PTZ, it will monitor a motionless object or mobile object at a big area all days.
  Typical application is using in rotary kiln , to monitor its shell temperature, surface condition and temperature field distribution for coal storage yard. In the meanwhile, the video camera will provide real time images to help operators find where is the monitored or damaged point, thus, they can make a quick responses.
  By this system, users can reduce their lost very effectively. And the 3D software will simulate coal field condition, setting temperature alarm to control the spray, to realize high temperature measurement and fight automatically, a real man-less operation.
  Applied in rotary kiln, coal field spontaneous fire monitoring, forest fire, material conveyor, plants production line, thin film production line and etc.

  contact us
•

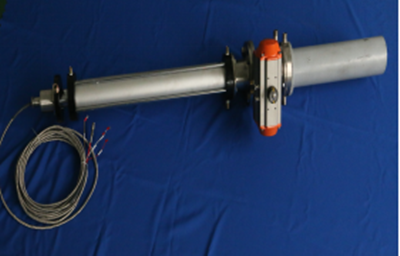

  Tricolor Camera Pyrometer System

  Tricolor temperature measurement technology is based on the visual wavelength of red, green, blue, which can be received by color CCD, the ratio solve method. It belongs to two color range essentially.
  The method not only has the characteristics of simple, a normal two color calibration. But also, radiation image can be shown under different wavelength, but the same color image. Thus, it is avoid the difficult of getting a radiation image under different wavelength but the same burning material.
  So the double cylinder actuator system is quite suitable for some high sealed requirement condition, like blast furnace.

  contact us
•

  Visual 2-Color Infrared Pyrometer

  The rugged sensor is suitable for any severe environment.
  Endurance sensor with a rugged stainless steel shell, can standard high temperature up to 65 ℃, under IP65(NEMA 4) condition, without any cooling system.
  Fluke will provide 4 years warranty for this pyrometer. The isolated analog output can avoid the voltage fluctuation damages, which caused by wrong wiring.

  contact us
•

  Online Infrared Thermometer

  Including SC-MM0850 / MM1080 / MM1511 / MM3014 / MM6020 / MM9025.
  Infrared thermometer will calculate the radiation strength value, which will received by its sensor, then to show these values into temperature numbers, that is the theory of infrared thermometer.
  A key feature of this thermometer is non-contact, as well as the biggest advantage. Therefore, it can get temperature values from all objects, includes static one and moving one. The sensor with 2-level laser can mark centre point of target object and best testing distance.
  This model is suitable to test small target objects. 4-20mA output can be used in most of condition, especially the in a long distance, strong interface site. We provide full ranges of temperature sensors,users can choose them according to the wave length, temperature range, optical system and etc.
  Users can adjust its field emissivity, it is quite convenient to make on-site correction, and improve the validity and authenticity o f measured results.

  contact us
•

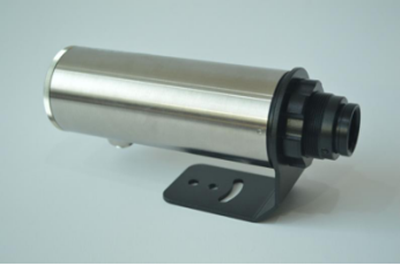

  2-color Infrared Pyrometer

  SC-H Series color comparator pyrometer different from traditional pyrometer, which using two optical wavelengths to measure the temperature, and then via the temperature ratio gives temperature scale.
  This method not only can eliminate the obstruction from smoke, steam, dust of surrounding environment, but also eliminate the obstruction from different emissivity of different targets.
  Therefore, the color comparator pyrometer more able to correctly measure the real temperature of the targets.
  Applied in Furnace, Metallurgy, Flat glass , Refractory material, Reheat furnace , etc.

  contact us
•

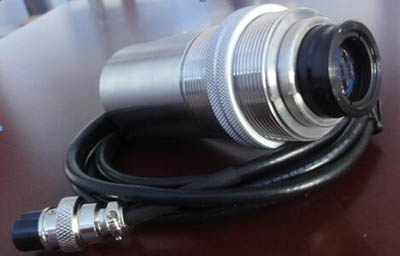

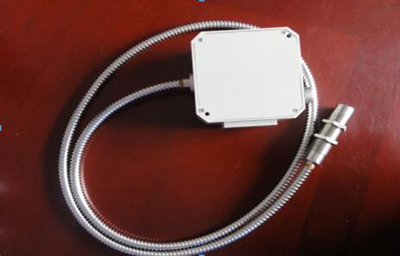

  Fiber Optic Pyrometer

  SC-X Series infrared pyrometer with the advantages of accurate laser sighting , LCD displaying current state.
  Designed for easy integration can be easily alignment measured goals and instruct the best measurement distance. It provide users with easy to use , highly reliable measurements.
  Applied in Printing , Paper making , lamination , Drying , Processed food , Textile , Pharmaceutical , Metallurgy, Furnace , Flat glass , Refractory material, Reheat furnace, etc.

  contact us
•

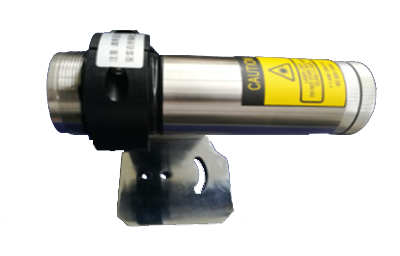

  Laser Sighting Pyrometer

  SC-X Series infrared pyrometer with the advantages of accurate laser sighting , LCD displaying current state.
  Designed for easy integration can be easily alignment measured goals and instruct the best measurement distance. It provide users with easy to use , highly reliable measurements.
  Applied in Printing , Paper making , lamination , Drying , Processed food , Textile , Pharmaceutical , Metallurgy, Furnace , Flat glass , Refractory material, Reheat furnace, etc.

  contact us
•

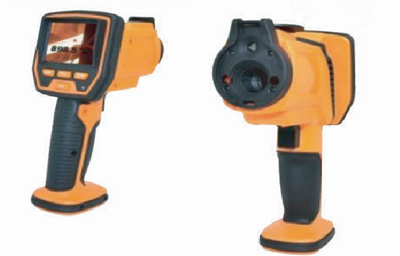

  Temperature Inspection Camera

  The product is of innovative design and of solid structure.
  Built-in laser point and visible light cameras increases the accuracy of the measured target.
  The combination of the color LCD and the buttons is convenient for the ergonomic operation.
  It reproduces the temperature environments in the form of videos and images. Distance ratio 50:1, highest temperatures up to 1000 degrees.
  The devices makes your temperature testing much easier.

  contact us
•

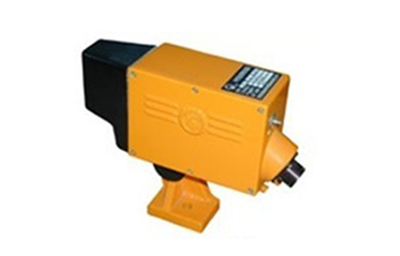

  Cold And Hot Metal Detector

  Red light metal detector is mainly used in metallurgical production line. It can detect cold and hot metal, output control switch signal(contact or level signal), and achieve automatic switch control function.
  This metal detector use high brightness red light semiconductor light emitting device as light source. After being modulated, it will emit a beam of paralleled red light. When received by photosensitive tube, It will be magnified, and then output a switch signal.
  It is very convenient for installation and debugging, very suitable for using in high temperature and humid environment. When is environment temperature is below 80℃, we suggest you to use FSB-2 reflector. When the environment temperature is above 80℃, we suggest you to use FSB-1 reflector.

  contact us
•

  Loop Scanner

  Digital displayed loop scanners were mainly used in the metallurgical industrial production, to measure the thermal work-piece position where in the view field, and to output the signal, which is proportional to the work-piece angle position. To achieve free tension control for lines and bars.
  Imaging through target object is the principle of this digital displayed loop scanner. This scanner can measure object temperature to 650℃.

  contact us
•

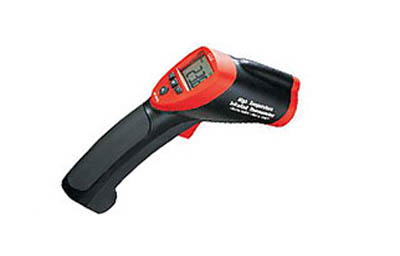

  Portable Infrared Thermometer

  Including TI-260 / TI320 / TI500 / TI760, TID -420 / TID-620, TIP-1200, PT-1800 / PT-3000
