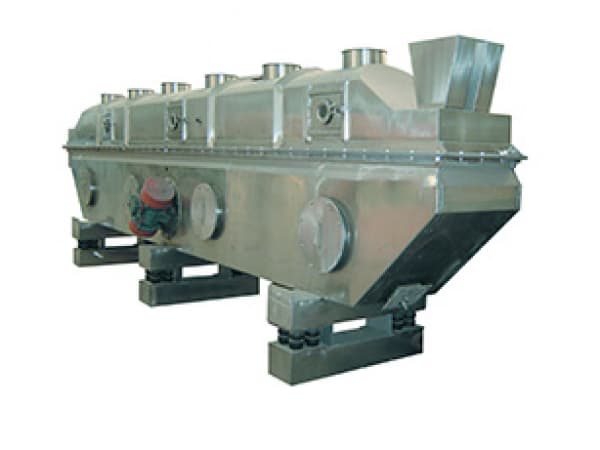

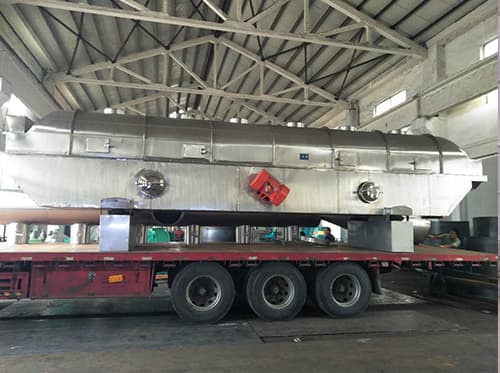

Vibrating fluidized bed dryer

ZLG series vibrating fluidized bed dryer enters materials into the dryer from the feed inlet. Under the action of the exciting force provided by the vibrating motor or other means, the materials jump forward on the air distribution plate. At the same time, the air is heated to a certain temperature after being filtered, and enters the lower air chamber of the dryer through the air outlet. Under the dual action of the vibrating force and the hot air flow passing through the air distribution plate, the materials are in contact with the hot air flow in a suspended state, The fierce turbulence between the material particles and the hot medium strengthens the heat and mass transfer process. The dried products are discharged from the discharge port.

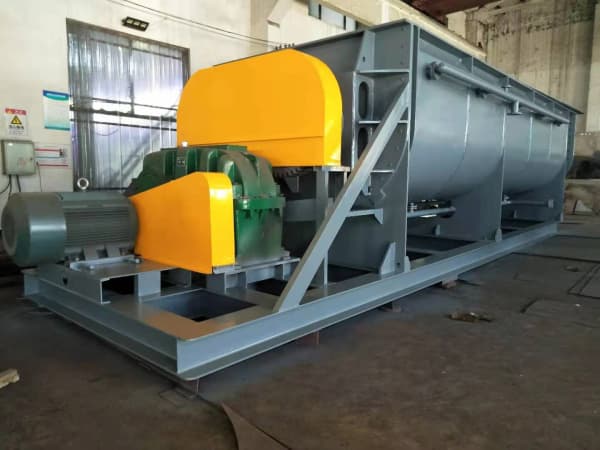

Paddle dryer

This product can indirectly heat or cool paste, granular, powder and slurry materials, and can complete drying, cooling, heating, sterilization, reaction, low-temperature combustion and other unit operations. The special wedge-shaped stirring heat transfer blade in the equipment has high heat transfer efficiency and self-cleaning function of heat transfer surface.

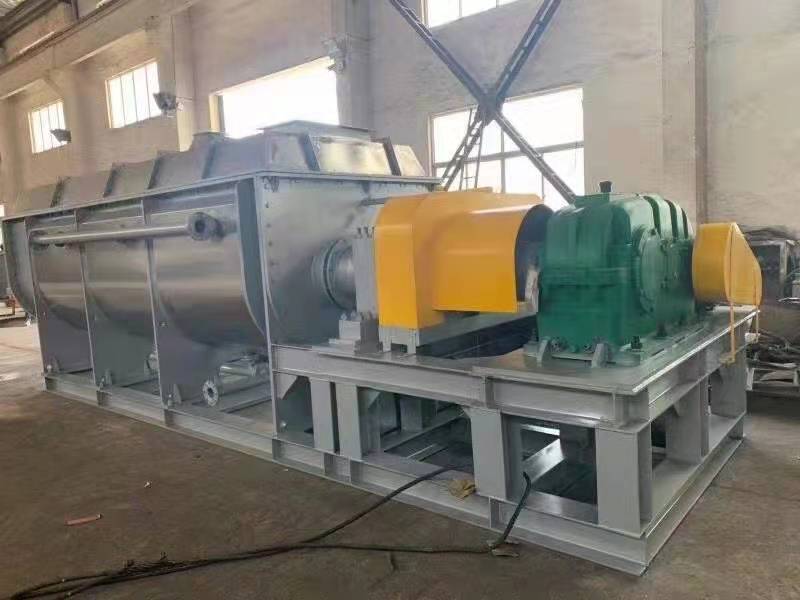

Hollow paddle dryer

This product can indirectly heat or cool paste, granular, powder and slurry materials, and can complete drying, cooling, heating, sterilization, reaction, low-temperature combustion and other unit operations. The special wedge-shaped stirring heat transfer blade in the equipment has high heat transfer efficiency and self-cleaning function of heat transfer surface.

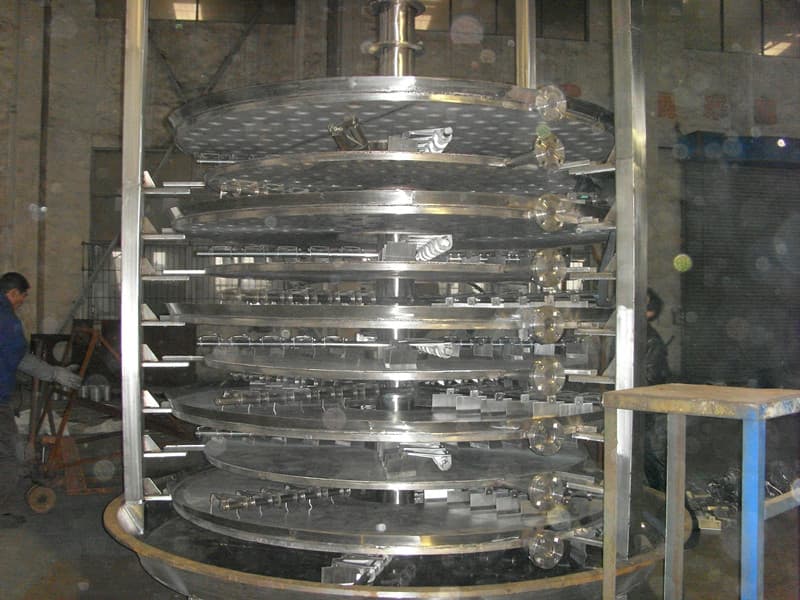

Tray drier

The disc continuous dryer is an efficient conductive continuous drying equipment. Its unique structure and working principle determine that it has the characteristics of high thermal efficiency, low energy consumption, small floor area, simple configuration, convenient operation and control, and good operating environment. It is widely applicable to drying operations in chemical, pharmaceutical, pesticide, food, feed, agricultural by-product processing and other industries. It is highly praised in the use practice of various industries. Currently, it produces and manufactures three types of atmospheric pressure, airtight and vacuum, 1200, 1500, 2200 and 3000, A (carbon steel), B (stainless steel is uniformly distributed in the parts contacting with materials), C (on the basis of B, the steam pipeline, main shaft and support are added to be stainless steel, and the cylinder and cover are lined with stainless steel). Three kinds of materials, drying area 4~180m2, a total of hundreds of models of series products, and can provide matching kinds of auxiliary equipment, which can meet the needs of users for drying various materials.

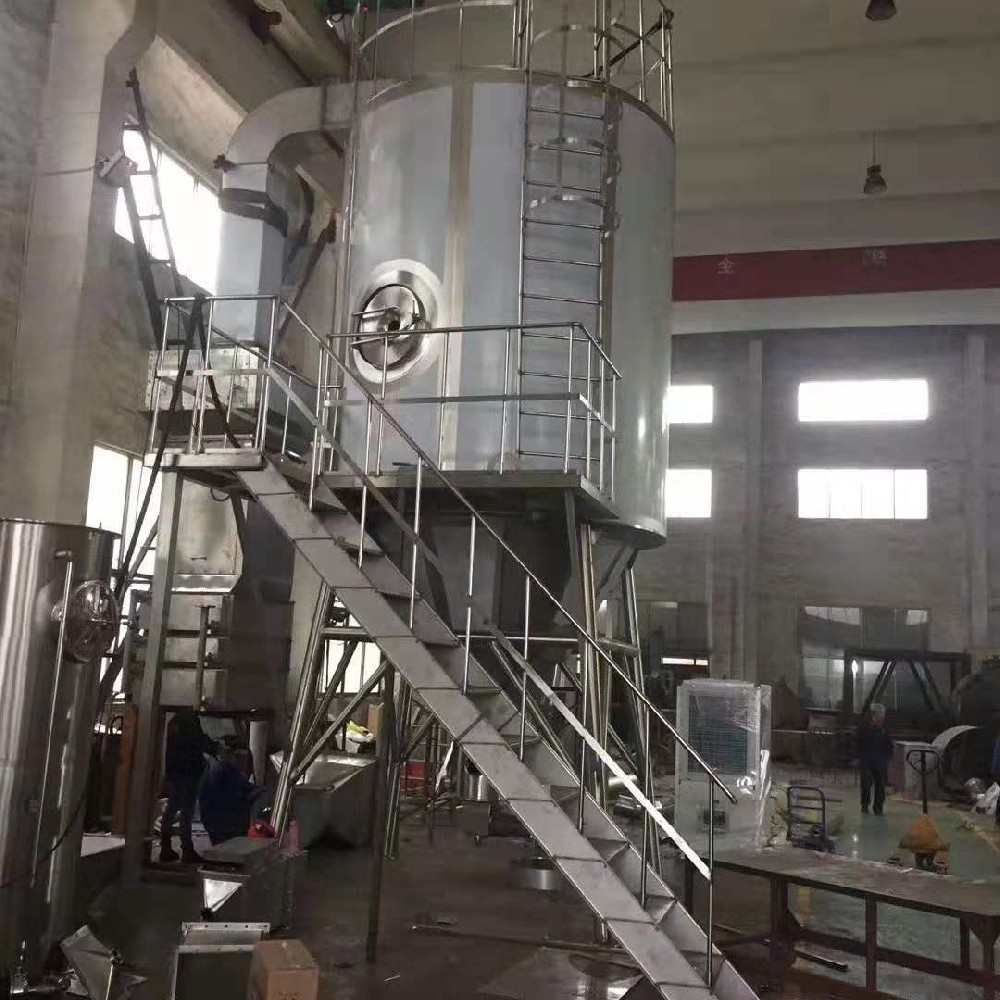

Spray dryer

Spray dryer is widely used in liquid process forming and drying industry. Suitable for generating powdery and granular solid products from solution, emulsion, suspension and paste liquid raw materials. Therefore, when the particle size distribution, residual water content, bulk density and particle shape of the finished product must meet the standard, spray drying is a better process. It is mainly composed of slurry supply system, atomizer, drying tower, hot air system, exhaust gas discharge and dust removal system, discharge and powder conveying system, etc.

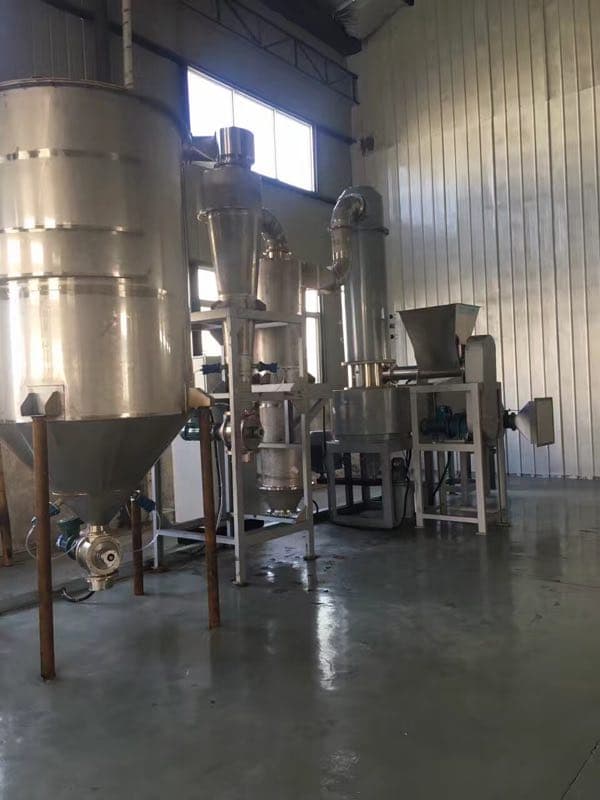

Flash dryer

The flash dryer enters the bottom of the dryer through the hot air tangent, and forms a strong rotating wind field driven by the agitator. The paste material enters the dryer through the screw feeder. Under the strong action of the high-speed rotating agitator, the material is dispersed under the impact, friction and shear force, and the block material is quickly crushed.

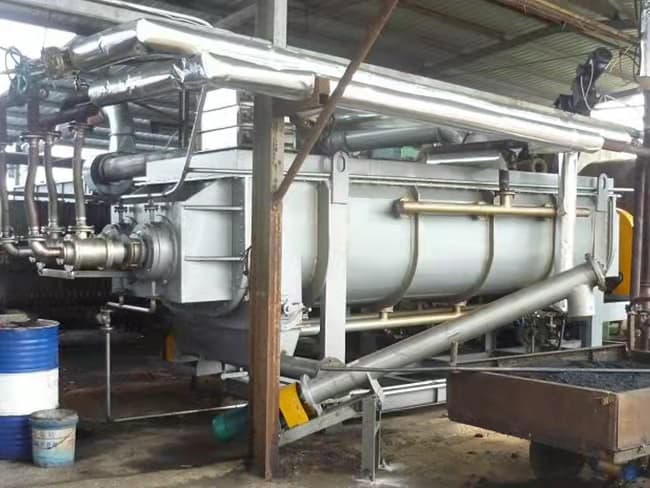

Sludge dryer

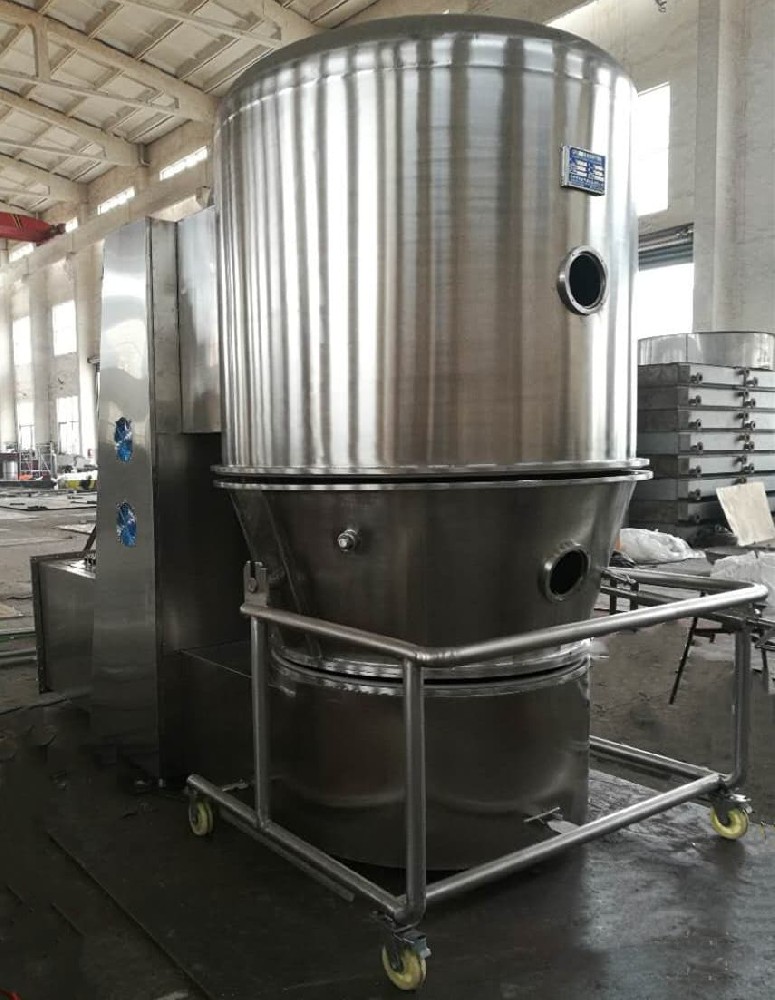

High efficiency boiling dryer

After heating and purification, the air is introduced from the lower part by the induced draft fan and passes through the mesh plate of the hopper. In the working room, fluidization is formed by mixing and negative pressure, and the water is quickly evaporated and taken away with the exhaust gas, and the material is quickly dried.

Linear vibrating dryer

The material enters the machine from the feed inlet. Under the action of the vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air is removed by the cyclone separator and discharged by the exhaust air 1:3. The dry material is discharged from the discharge inlet.

DW Series Mesh-Belt Dryer

The through-flow continuous drying equipment is used for the drying of sheet, strip and granular materials with good air permeability. The machine has the advantages of fast drying speed, high evaporation intensity and good product quality.
For the paste material in the form of dewatered filter cake, it can also be dried after being granulated or made into a rod shape.

Model Szg Series Double Cone Rotating Vacuum Dryer

Heating is divided into three ways: steam, hot water and heat transfer oil;
When ordering, please indicate the temperature that the material can withstand or the operating temperature of the dryer, so that the factory can choose or provide a heat source for you;
When drying viscous materials, our factory will specially design a "copy board" structure in the tank;
The accessories involved in the vacuum drying system can be provided and installed by our factory, please specify in the order;
Our factory can provide design, manufacture and installation according to the special requirements of users;
The overall equipment package will be charged as required.

PLG Series Continual Palte Dryer

Disc continuous dryer is a kind of conductive continuous drying equipment. Its unique structure and working principle determine that it has the characteristics of high thermal efficiency, low energy consumption, small footprint, simple configuration, convenient operation and control, and good operating environment.
It is widely used in chemical, pharmaceutical, pesticide, food, feed, agricultural Drying operations in industries such as by-product processing. It is well received in the practice of various industries. Now we manufacture three types of atmospheric pressure, airtight and vacuum, 1200, 1500, 2200, 3000, A (carbon steel), B (stainless steel evenly distributed in the contact material), C (on the basis of B, add a steam pipe The road, the main shaft and the bracket are made of stainless steel, and the cylinder and the top of the cover are lined with stainless steel).
Three kinds of materials, drying area of 4-180m2, a total of hundreds of models of series products, and can provide a variety of auxiliary equipment to meet the needs of users for drying various materials.

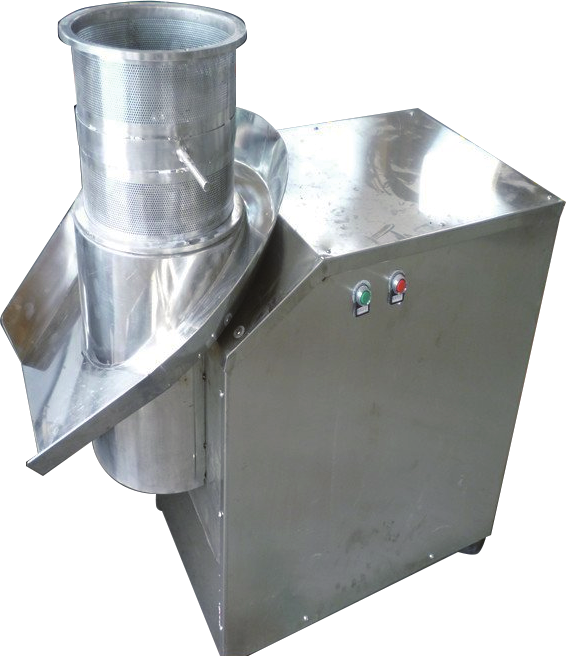

Model Zlb Revolving Granulator

This machine is suitable for granulation in the pharmaceutical, food, chemical, solid beverage and other industries.
All parts in contact with the material are made of stainless steel, with beautiful appearance, reasonable structure, high granulation and forming rate, creme view, automatic discharge, avoiding the damage of particles caused by manual discharge, and suitable for flow operation.

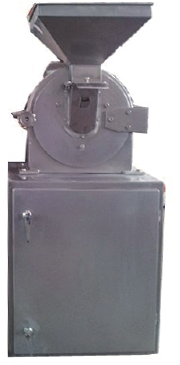

20B / 30B / 40B Modelomnipotent Pulverizer

This machine is suitable for material crushing in pharmaceutical, chemical, food and other industries.

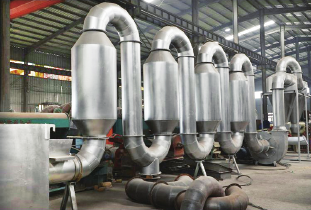

Q / Qg / Jg Series Air Stream Direr

QG series pulse air dryer is a kind of large-scale drying equipment. It adopts the principle of instant drying and uses the rapid movement of the heat-carrying air to drive the wet material and suspend the wet material in the hot air, which strengthens the entire drying process.
Improve the rate of heat and mass transfer, the unbound water can be almost completely removed from the air-dried materials, and the dried materials will not be deteriorated, and the output can be significantly improved compared with the general dryer drying, users can in a short period of time. achieve higher economic benefits.
